Description
FT-J6412-V1.0 Fanless Mini-PC System
A robust, fanless mini-PC powered by the Intel® Elkhart Lake J6412/J6413 processor, featuring rich industrial I/O, quad LAN, dual storage options, and passive cooling for reliable, silent operation in demanding environments.
📋 Product Overview
The FT-J6412-V1.0 is a complete, ultra-compact fanless system built around the efficient Intel® Elkhart Lake platform. It delivers enhanced computing performance, extensive connectivity including four Gigabit LAN ports and multiple display outputs, and versatile storage with SATA and NVMe support. Its all-aluminum chassis and completely passive thermal design ensure silent, maintenance-free operation ideal for digital signage, industrial automation, thin clients, and secure network appliances where reliability and zero noise are critical.
🛠️ Key Features
✓Advanced Fanless Design: Aluminum chassis with passive cooling provides silent, reliable operation with no moving parts.
✓Modern Processor: Integrated Intel® Elkhart Lake J6412/J6413 Quad-Core CPU (10nm, TDP 10W) for efficient performance.
✓Quad Independent LAN: Four Intel® I210-AT Gigabit Ethernet ports for networking, segmentation, or firewall applications.
✓Triple Display Support: Dual HDMI outputs (VGA optional) enable triple screen synchronous or independent display.
✓Flexible Storage: Dual SATA 3.0 ports and one M.2 NVMe SSD slot (Key M, 2280) for high-speed storage options.
✓Rich I/O Connectivity: Multiple USB 3.0/2.0 ports, COM ports, Audio, Type-C, and expansion via Mini-PCIe.
✓High Memory Capacity: Two SO-DIMM slots support up to 64GB of DDR4 memory for demanding applications.
✓Wall-Mountable: Compact design with optional wall-mount kit for space-saving installation.
🔧 Core System Specifications
CPU
Integrated Intel® Elkhart Lake Processor
Model: J6412 or J6413, Quad-Core
Frequency: 2.0 GHz / 2.6 GHz (Max)
TDP: 10W, 10nm Process
Model: J6412 or J6413, Quad-Core
Frequency: 2.0 GHz / 2.6 GHz (Max)
TDP: 10W, 10nm Process
Chipset
Integrated into CPU (SoC)
Memory
2 x SO-DIMM slots
Supports DDR4L @ 2666/2933/3200 MHz, 1.2V
Maximum Capacity: 64GB
Supports DDR4L @ 2666/2933/3200 MHz, 1.2V
Maximum Capacity: 64GB
Storage
2 x SATA 3.0 interfaces (6 Gbps)
1 x M.2 Slot (Key M, 2280) for NVMe SSD
1 x M.2 Slot (Key M, 2280) for NVMe SSD
Operating System
Windows 10, Linux
Graphics
Integrated Intel® HD Graphics (Gen 11)
🎥 Display & Audio Interfaces
Display Outputs
2 x HDMI (default)
1 x VGA (Optional, not default)
Supports triple display (synchronous or independent)
1 x VGA (Optional, not default)
Supports triple display (synchronous or independent)
Audio

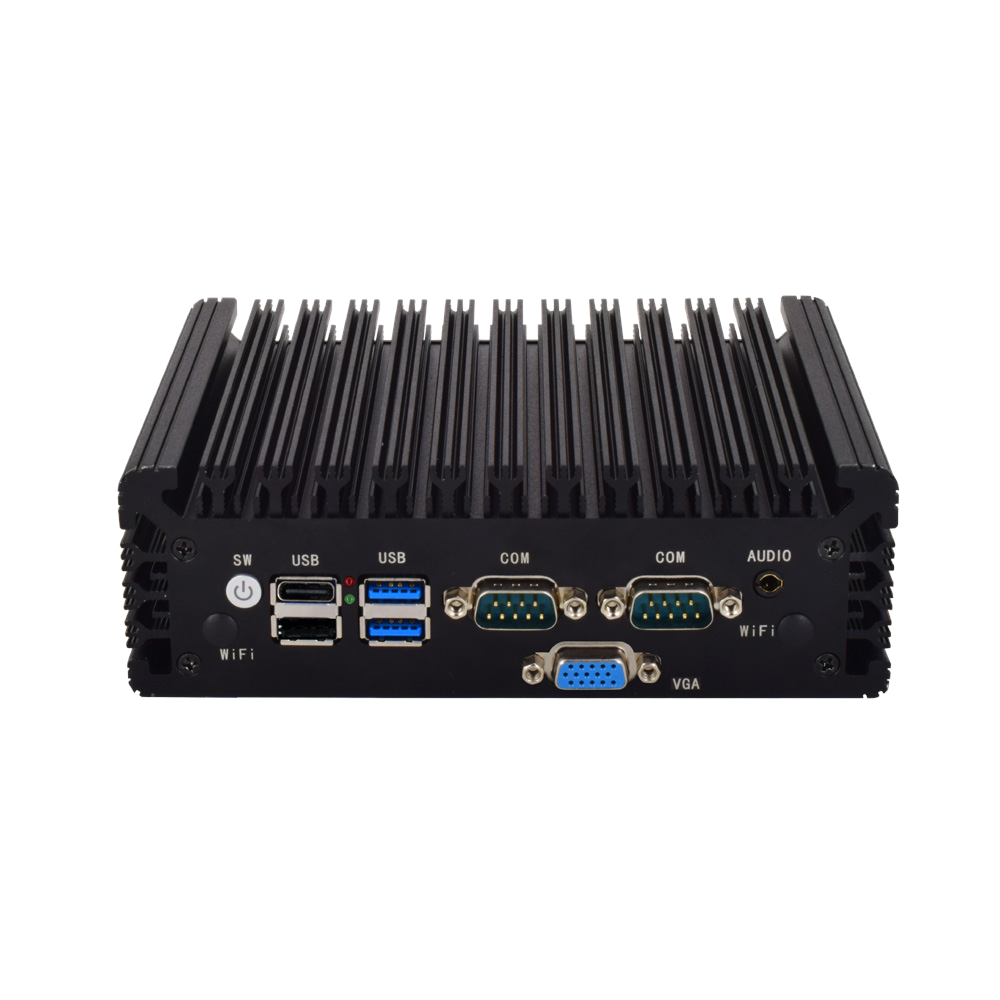

1 x Audio jack (Line-out/Mic-in) on front panel
Integrated HD Audio Codec
Integrated HD Audio Codec
🔌 Connectivity & I/O Ports
USB Ports
3 x USB 2.0 ports
2 x USB 3.0 ports (Front)
2 x USB 2.0 ports (Rear)
1 x Type-C port (Front)
2 x USB 3.0 ports (Front)
2 x USB 2.0 ports (Rear)
1 x Type-C port (Front)
Network

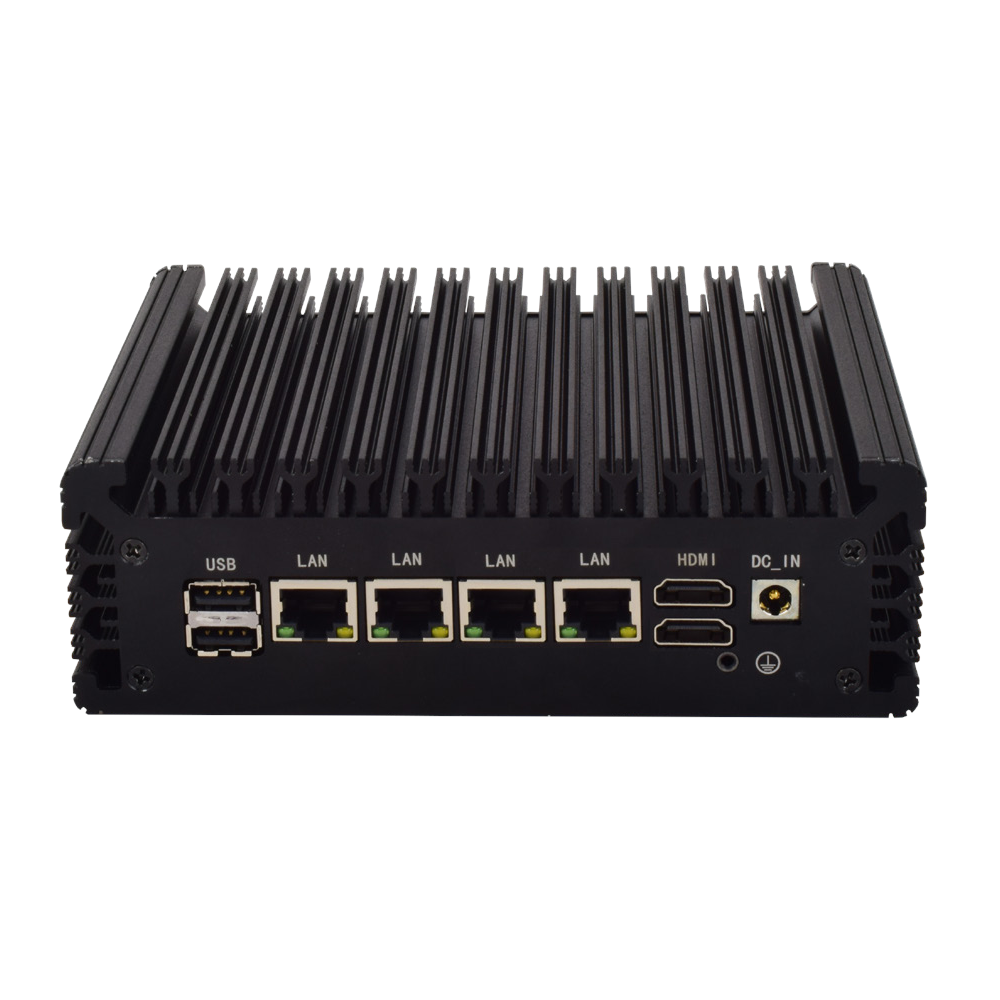

4 x Intel® I210-AT Gigabit Ethernet (RJ45, 10/100/1000 Mbps)
Independent controllers for robust networking
Independent controllers for robust networking
Serial Ports
2 x COM ports (Front panel, configurable as RS232/RS485)
Expansion Slot
1 x Mini-PCIe slot (supports Wi-Fi/Bluetooth modules, 4G LTE modules, or mSATA SSD)
Wireless (Optional)
Supports Intel 6200 300M Wi-Fi module with dual antennas (via Mini-PCIe)
Power Button
1 x Power button on front panel
⚡ Power & Cooling Specifications
Input Voltage
DC 12V (via 2.5/5.5mm barrel jack on rear panel)
Cooling System
100% Fanless Passive Cooling. Aluminum chassis acts as a heatsink for silent and reliable operation with no moving parts.
Chassis Material
Aluminum Alloy, Black Color
🌎 Environmental & Physical Specifications
Operating Temperature
0°C to +55°C (32°F to 131°F)
Storage Temperature
-40°C to +55°C (-40°F to 176°F)
Operating Humidity
10% to 95% RH @ 40°C (non-condensing)
System Dimensions (WxDxH)
163mm × 125mm × 53mm (6.4″ × 4.9″ × 2.1″)
Package Dimensions (WxDxH)
295mm × 200mm × 90mm (11.6″ × 7.9″ × 3.5″)
⚠️ Important Notes
Processor Options: This system is available with either the Intel® J6412 or J6413 Elkhart Lake processor. Both are quad-core, 10W TDP CPUs designed for efficient, fanless operation. Confirm the specific CPU model with your order.
Memory Compatibility: Requires DDR4L (1.2V) SO-DIMM modules. Standard 1.35V DDR4 modules may not be compatible. For optimal stability, use modules rated at 2666MHz or higher.
Storage Configuration: The M.2 slot supports NVMe PCIe SSDs (Key M, 2280). The two SATA ports are SATA 3.0 (6 Gbps). Note that the Mini-PCIe slot shares layout with one SATA signal; using an mSATA SSD in Mini-PCIe may disable one SATA port.
Display Outputs: Dual HDMI is standard; VGA is an optional output and not present on all models. The system supports triple display output when VGA is installed.
Network Performance: Features four independent Intel® I210-AT Gigabit controllers, offering superior performance and reliability for routing, firewall, or multi-network applications compared to integrated or Realtek solutions.
Thermal Design: The fanless design relies on the aluminum chassis for heat dissipation. Ensure adequate airflow around the unit and do not block ventilation openings. Operation near the maximum ambient temperature (55°C) may require derating or additional heatsinking.
📦 Ordering Information & Warranty
Standard System
FT-J6412-V1.0 Barebone System (Motherboard, Chassis, Packaging, Screws, Optional Wall Mount Kit)
Complete System
Barebone plus Memory, SSD, 12V Power Adapter, Wi-Fi & Antennas (Optional Wall Mount Kit)
Optional Components
Memory (DDR4L): 4GB, 8GB, 16GB, 32GB, 64GB
Storage (M.2 NVMe): 32GB, 64GB, 128GB, 256GB
Wi-Fi Module: Intel 6200 300M Dual Antenna
Operating System: Windows 10, Linux
Storage (M.2 NVMe): 32GB, 64GB, 128GB, 256GB
Wi-Fi Module: Intel 6200 300M Dual Antenna
Operating System: Windows 10, Linux
OEM Services
Custom motherboard design (500-unit minimum order)
Custom laser logo engraving (100-unit minimum order)
Custom laser logo engraving (100-unit minimum order)
Warranty
3-Year Limited Warranty: 1 year free warranty, followed by 2 years of paid repair service.

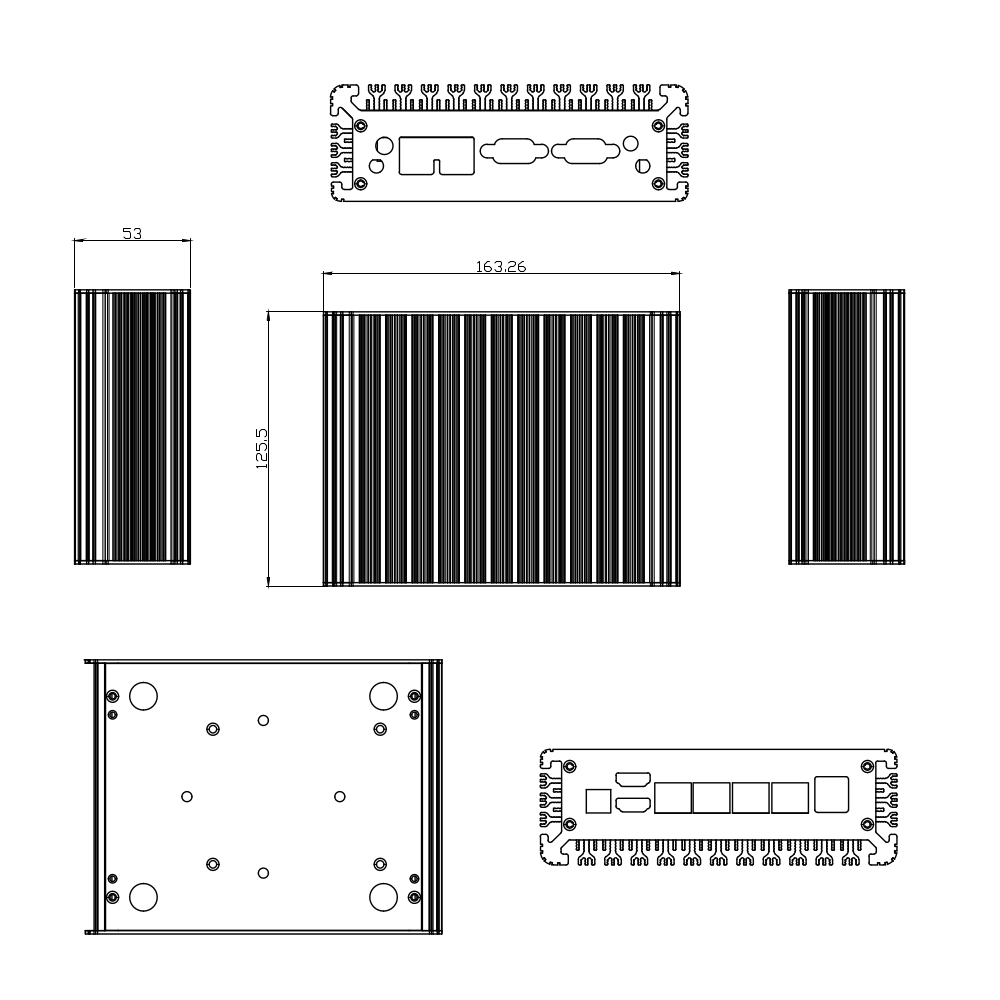

📐 Mechanical Dimensions
Unit: mm (163mm x 125mm x 53mm)
🖼 Product Images
Side/Installation view image placeholder
For any questions or custom configuration inquiries, please contact our sales team.
