FP67A0 Ultra-Compact Fanless Industrial Computer
A versatile, fanless industrial PC powered by Intel® 6th/7th Gen Core™ U-series processors, featuring rich I/O, dual Gigabit LAN, M.2/SATA storage, and a compact, wall-mountable aluminum chassis for demanding edge computing and automation applications.
📋 Product Overview
The FP67A0 is an ultra-compact, completely fanless industrial computer system designed for reliable, maintenance-free operation in space-constrained and harsh environments. Built around energy-efficient Intel® Sky Lake-U or Kaby Lake-U Core™ i3/i5/i7 processors, it delivers robust performance for edge computing, IoT gateways, digital signage, and light industrial control. Its rich connectivity includes dual independent displays (HDMI+VGA or dual HDMI), multiple USB 3.0/2.0 ports, dual Gigabit Ethernet, and industrial serial COM ports. Housed in a sleek, passively-cooled aluminum chassis, it offers silent operation and supports wall-mounting for maximum deployment flexibility.
🛠️ Key Features
✓Powerful & Efficient Processing: Supports Intel® 6th/7th Gen Core™ i3, i5, i7 U-series processors (Skylake-U/Kaby Lake-U) for balanced performance and power efficiency.
✓100% Fanless Silent Design: Passive cooling via aluminum chassis ensures zero noise, high reliability, and protection against dust.
✓Dual Independent Display Support: Features HDMI and VGA/HDMI ports, supporting synchronous or asynchronous dual displays (Dual HDMI option available).
✓Robust Industrial Connectivity: Equipped with 2 x RS232/RS485 configurable serial ports for PLC and device communication.
✓Dual Gigabit LAN with Teaming/Redundancy: Two independent Realtek RTL8111H Gigabit Ethernet controllers for network segmentation or failover.
✓Flexible Storage & Expansion: Combines one M.2 slot and one 2.5″ SATA bay for fast SSD and HDD storage, plus a Mini-PCIe slot for WiFi/4G modules.
✓Compact & Wall-Mountable: Sleek black aluminum chassis with standard VESA mount support for easy installation in tight spaces.
✓Rich USB Ports: Total of 6 USB ports (4x USB 3.0, 2x USB 2.0) for peripherals, cameras, and USB devices.
🔧 Core System Specifications
CPU
Intel® Sky Lake-U / Kaby Lake-U Core™ i3, i5, i7 Processors (Soldered)
Models: i3-6100U, i5-6200U, i7-6500U, i3-7100U, i5-7200U, i7-7500U
Models: i3-6100U, i5-6200U, i7-6500U, i3-7100U, i5-7200U, i7-7500U
Chipset
Integrated Intel® 100 Series (Skylake) / 200 Series (Kaby Lake)
Memory (DDR3L)
1 x SO-DIMM slot, supports single-channel DDR3L (1.35V), up to 8GB
Storage
1 x M.2 slot (for SSD storage)
1 x 2.5″ SATA drive bay (for HDD/SSD, 7mm/9.5mm height)
1 x 2.5″ SATA drive bay (for HDD/SSD, 7mm/9.5mm height)
Graphics
Integrated Intel® HD Graphics 620
Operating System
Windows 7, Windows 8, Windows 10, Linux
Expansion
1 x Mini-PCIe slot (supports half-length WiFi modules or 4G LTE modules)
🎥 Display & Audio Interfaces
Display Outputs
1 x HDMI, 1 x VGA/HDMI (Dual HDMI output option available)
Supports synchronous or asynchronous dual independent displays.
Supports synchronous or asynchronous dual independent displays.
Audio
1 x Audio combo jack (Line-out/Mic-in) on front panel
🔌 Connectivity & I/O Ports
USB Ports
4 x USB 3.0 ports (2 front, 2 rear)
2 x USB 2.0 ports (rear)
2 x USB 2.0 ports (rear)
Network
2 x Realtek RTL8111H Gigabit Ethernet (RJ45, 10/100/1000 Mbps)
Serial Ports
2 x RS232/RS485 configurable serial ports (COM1, COM2)
Front Panel

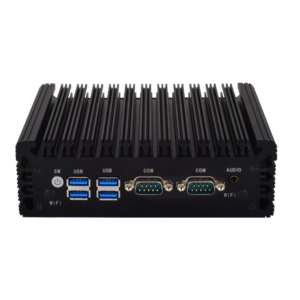

1 x Power Button, 2 x USB 3.0, 1 x COM2, 1 x COM1, 1 x Audio Combo Jack
Rear Panel

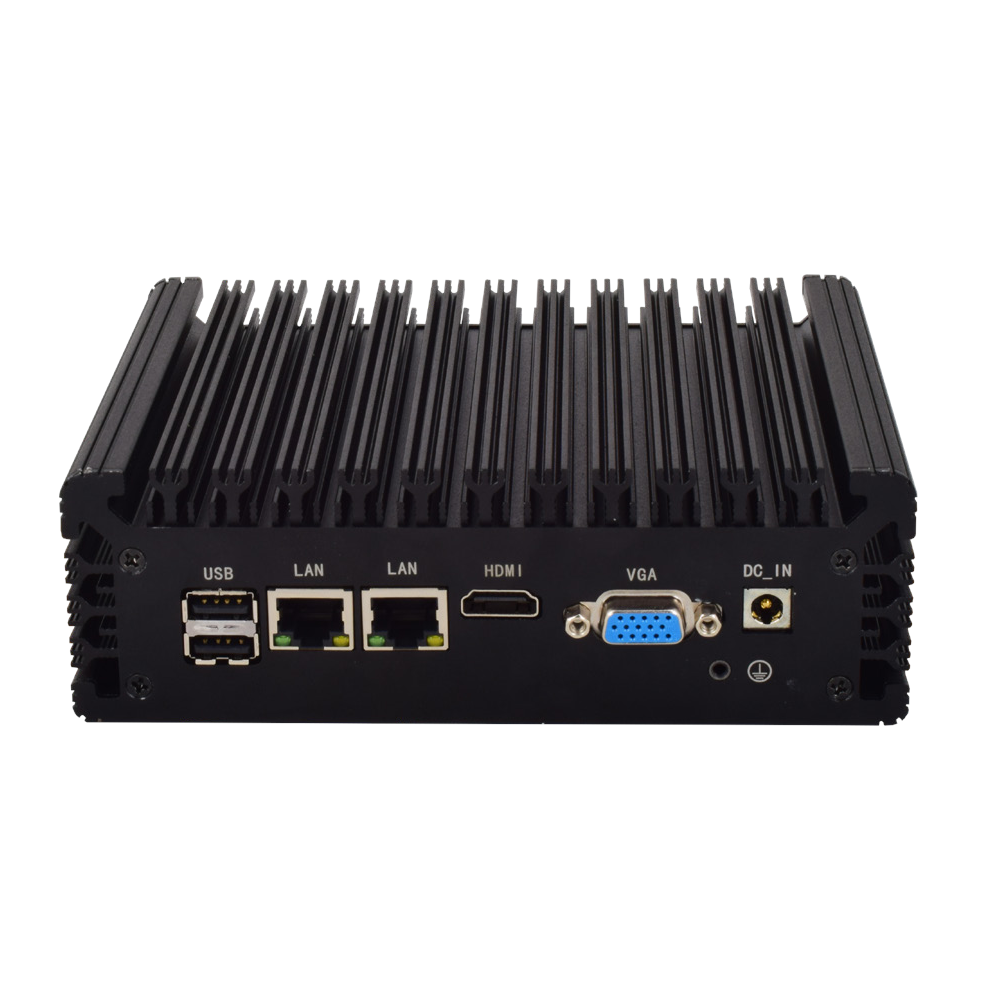

2 x USB 2.0, 2 x RJ45, 1 x VGA/HDMI, 1 x HDMI, 1 x DC 12V Power Input
⚡ Power & Chassis Specifications
Input Voltage
DC 12V via external power adapter (2.5mm x 5.5mm barrel jack)
Chassis Material
Black Aluminum Alloy
Cooling System
100% Fanless Passive Cooling. Heat is dissipated through the robust aluminum chassis.
Mounting
Standard VESA mount compatible (Wall-mount bracket optional)
Physical Dimensions (W x D x H)
Unit: 16.3 cm x 12.5 cm x 5.3 cm
Shipping Carton: 29.5 cm x 20 cm x 9 cm
Shipping Carton: 29.5 cm x 20 cm x 9 cm
🌎 Environmental Specifications
Operating Temperature
0°C to +55°C (32°F to 131°F)
Operating Humidity
10% to 95% RH @ 40°C (non-condensing)
Storage Temperature
-40°C to +55°C (-40°F to 176°F)
⚠️ Important Notes
Processor Selection: The CPU is soldered onto the board and must be selected at the time of order. Choose from Intel® 6th/7th Gen Core™ i3, i5, or i7 U-series models based on your performance requirements.
Fanless Thermal Design: This system is engineered for completely passive cooling. For stable operation within the full temperature range, ensure adequate airflow around the unit if installed inside a secondary enclosure.
Memory Compatibility: Supports DDR3L (1.35V) SO-DIMM modules only. Standard 1.5V DDR3 modules are NOT compatible. Maximum supported capacity is 8GB.
Dual Display Configuration: The specific dual display mode (HDMI+VGA or Dual HDMI) depends on the motherboard configuration ordered. Verify your required display outputs before purchase.
Power Supply: A stable, high-quality 12V DC power adapter (with a 2.5mm x 5.5mm barrel plug) meeting the system’s power draw requirements is required but not included in barebone kits.
Warranty & Service: Standard warranty is 3 years (1 year free full warranty, followed by 2 years of paid repair service). OEM customization (board, logo) is available for qualified volume orders.

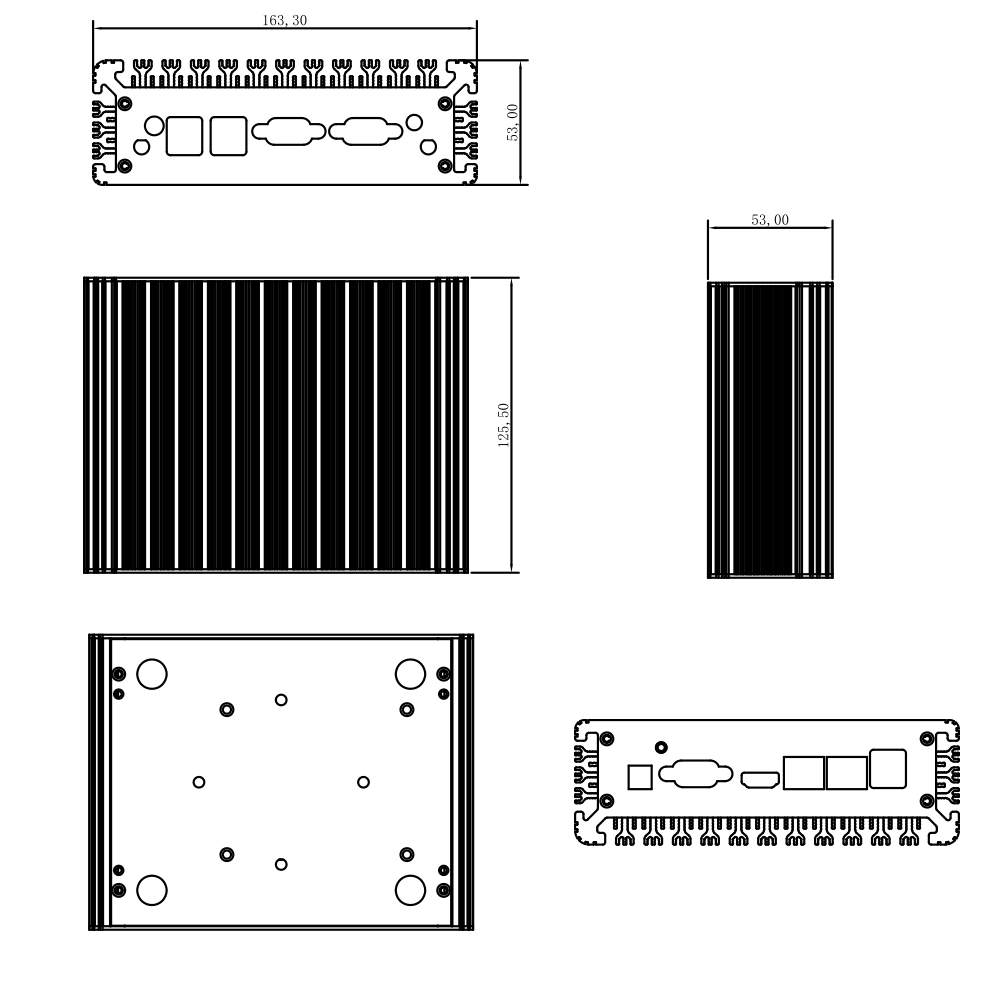

📐 Mechanical Dimensions & Interface Layout
Unit: mm

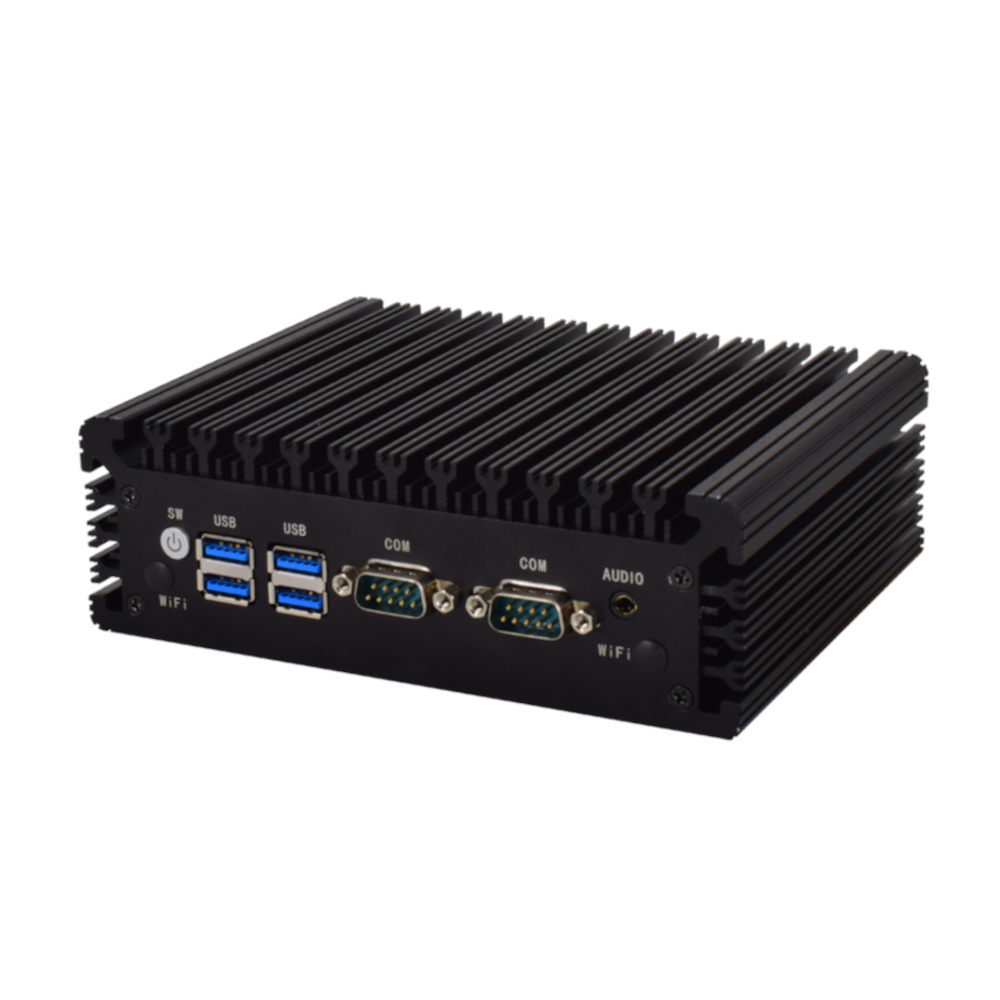

🖼 Product Images
📦 Ordering Information & Bundles
Standard Barebone System
Component
Description / Options
CPU
Intel® Core™ i3-6100U / i5-6200U / i7-6500U / i3-7100U / i5-7200U / i7-7500U (Select one)
Chassis & Board
FP67A0 Motherboard integrated into Aluminum Chassis
Included
Chassis, Motherboard, I/O Shield, Screw Pack, Packaging. (Wall-mount bracket optional)
Requires
Customer to provide: DDR3L Memory, Storage Drive (M.2 or 2.5″ SATA), 12V DC Power Adapter, Operating System.
Optional Configurations (Add to Barebone)
Category
Available Options
Memory (DDR3L)
2GB / 4GB / 8GB SO-DIMM Module
Storage (M.2 SSD)
32GB / 64GB / 128GB / 256GB M.2 SATA SSD
Wireless
Intel 6200 300Mbps WiFi + Bluetooth Module with Dual Antennas
Operating System
Windows 7 / Windows 10 / Linux (Distribution varies)
Power Adapter
12V DC, Regional Plug (Specify region)
Complete System Bundle
A ready-to-run package ideal for immediate deployment.
Includes: All Barebone components PLUS installed DDR3L Memory, M.2 SSD, 12V DC Power Adapter, WiFi Module with Antennas, and a pre-installed Operating System (if selected). Wall-mount bracket remains optional.
OEM & Customization Services Available: Custom motherboard configurations (500 units minimum), custom logo laser etching (100 units minimum). Contact our sales team for detailed quotations and further technical specifications.
