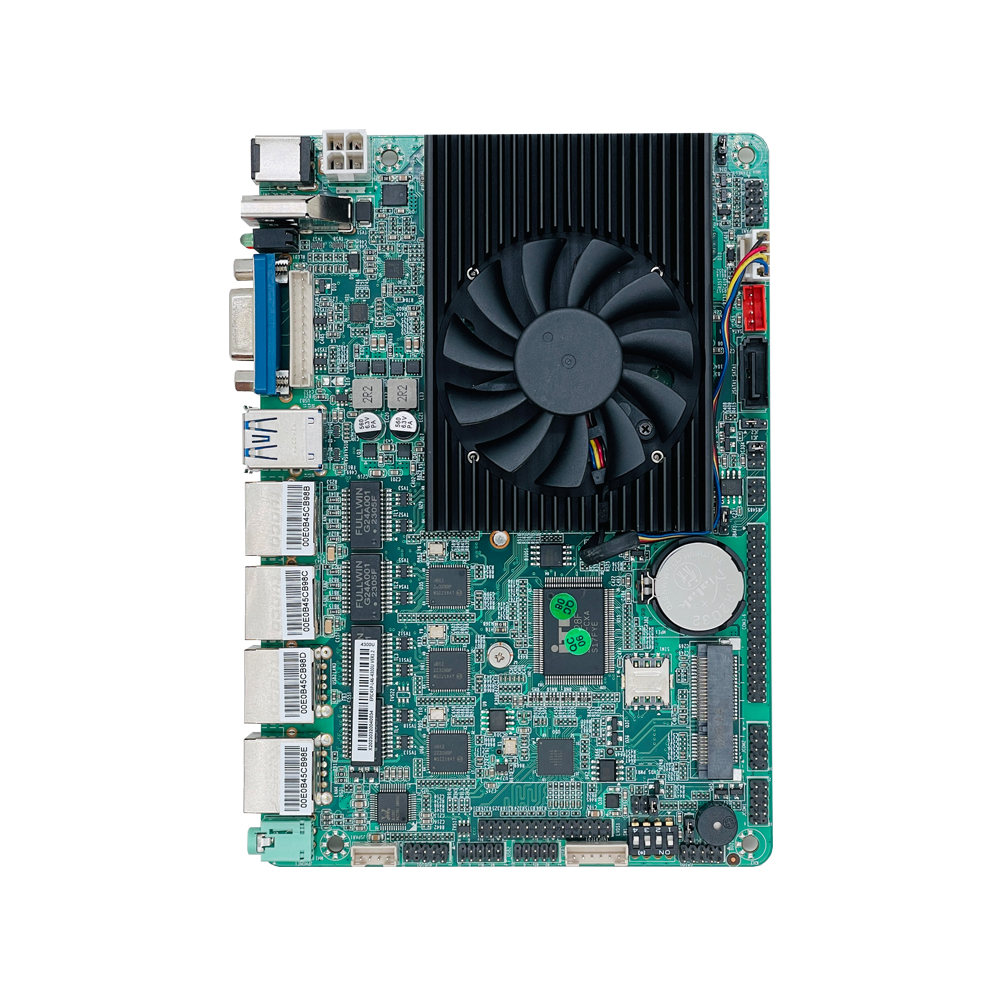

CPU Socket

Socketed CPU support for Intel® 4th Gen (Haswell-U) and 5th Gen (Broadwell-U) processors.

Example: Intel® Core™ i5-4300U Dual-Core 1.9GHz. Compatible with Celeron, Pentium, Core™ i3/i5/i7 series.

Chipset

Integrated Intel® Platform Controller Hub (PCH)

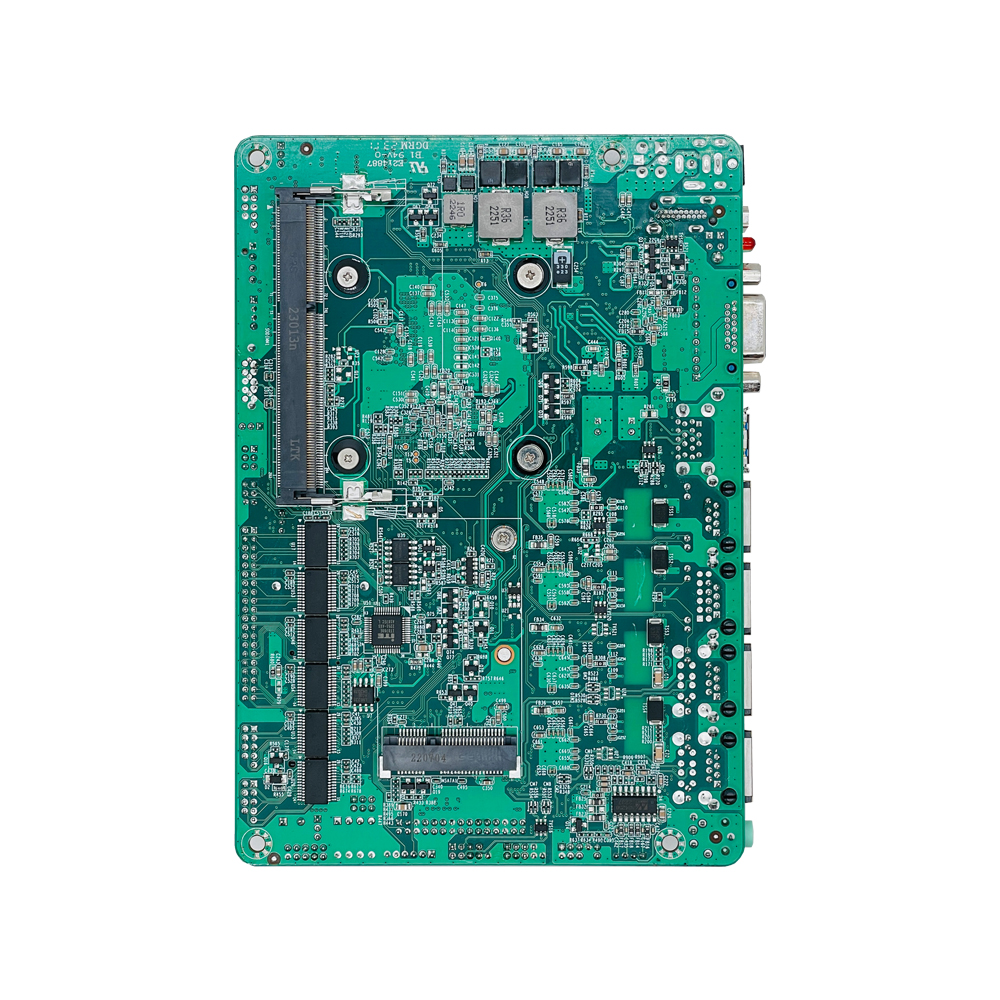

Memory (DDR3L)

1 x SO-DIMM slot, Single Channel DDR3L 1600/1333 MHz, supports up to 8GB

Note: Supports 1.35V DDR3L modules only. Standard 1.5V DDR3 is not compatible.

Storage

1 x SATA 3.0 interface (for 2.5″ HDD/SSD)

1 x mSATA 3.0 interface

Operating System

Windows 7, Windows 10, Linux

Graphics

Integrated Intel® HD Graphics (Generation varies by selected CPU – HD 4400/5000/5500/6000)

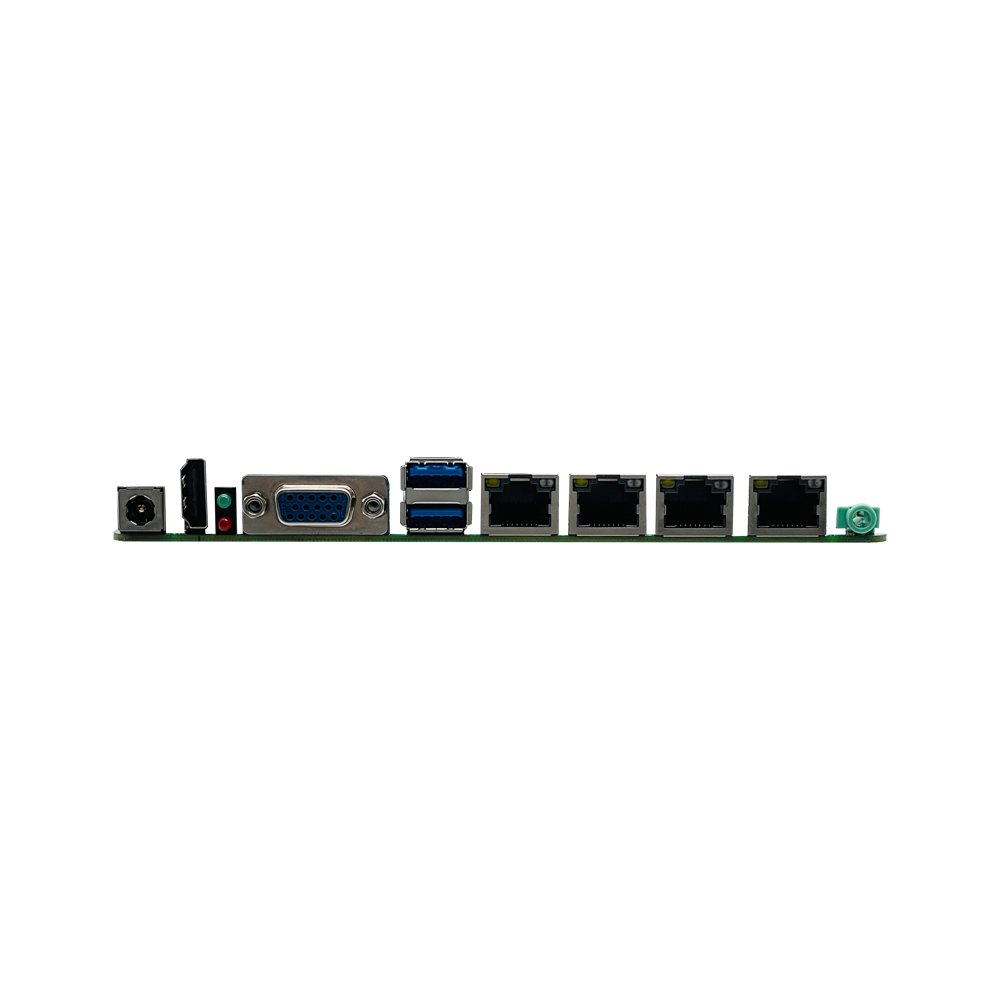

Display Outputs

1 x VGA

1 x HDMI

1 x LVDS connector (for direct flat-panel connection)

Optional: LVDS interface can be configured as eDP (Embedded DisplayPort).

(Supports multiple simultaneous displays)

Audio Codec

Realtek ALC262/662/897 HD Audio

Audio Ports / Features

1 x Front Panel Audio header (2×5 pin, supports Mic-in/Line-out)

1 x 3.5mm Line-out jack (Green)

1 x 4-pin header for external amplifier

Network (LAN) – Configurable

Maximum: 4 x Intel® I211 Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports.

Optional Configurations: 2-port or 3-port variants are available.

Specify required number of LAN ports when ordering. Intel I211 controllers offer superior driver stability and performance.

USB Ports – Configurable

2 x USB 3.0 ports (fixed)

USB 2.0 Ports:

• With 4-port LAN: 4 x USB 2.0 ports (Total 6 USB).
• With 2-port LAN: Up to 6 x USB 2.0 ports (Total 8 USB).

USB count is linked to the selected LAN configuration.

Serial Ports (COM)

6 x RS232 ports.

Optional: 2 of these ports can be configured to support RS485 protocol.

Provides extensive connectivity for PLCs, industrial sensors, barcode scanners, and other serial devices.

Expansion Slots

1 x Mini-PCIe slot (supports Wi-Fi or 4G LTE modules)

1 x mSATA slot (for storage)

Fan Interface & Cooling

1 x 4-pin CPU fan header. Board includes a dual-ball bearing smart fan for active cooling, ensuring long-term stability and performance under continuous operation.

GPIO

Supports 4-channel input & 4-channel output GPIO

Watchdog Timer

Hardware reset function (256 levels, 0~255 seconds)

Input Voltage

DC 12V ±5%

Power Mode

Supports AT and ATX mode switching for flexible power management.

Cooling System

Integrated dual-ball bearing smart fan. Provides active cooling for reliable performance under sustained high load and in elevated ambient temperatures.

Operating Temperature

-10°C to +60°C (Wide-temperature operation)

Storage Temperature

-20°C to +70°C

Operating Humidity

5% to 95% RH (non-condensing)

Dimensions (Board)

165mm × 115mm (Standard EPIC form factor)

Configurable I/O (LAN & USB): This board is offered in several key configurations:

• LAN Ports: Choose from 2, 3, or 4 Gigabit Ethernet ports using Intel® I211 controllers.
• USB Ports: The number of USB 2.0 ports (4 or 6) is directly tied to the LAN configuration (fewer LAN ports = more USB 2.0 ports).

You must specify your desired LAN port count when ordering, which determines the final USB port count.

Intel® I211 Network Advantage: The use of Intel I211 controllers provides benefits such as lower CPU utilization, excellent driver support across Windows and Linux, and proven long-term reliability in industrial environments. This differentiates it from models using Realtek controllers.

CPU & Memory Compatibility: Requires a socketed Haswell-U/Broadwell-U CPU and DDR3L (1.35V) SO-DIMM memory only. Standard 1.5V DDR3 is incompatible and may cause damage.

Display Interface Options: The LVDS connector is for direct connection to compatible flat panels. It can optionally be configured as eDP (Embedded DisplayPort). Specify your panel interface requirement (LVDS or eDP) if needed.

Active Cooling Maintenance: The integrated dual-ball bearing fan is designed for longevity. In dusty environments, periodic inspection and cleaning of the fan and heatsink are recommended to maintain optimal cooling performance over years of 24/7 operation.

Power Supply Sizing: When configured with 4 LAN ports and a higher-performance CPU (e.g., Core i7), ensure the 12V DC power supply is robust enough to handle the increased load (recommended ≥ 90W).
