EPC19D VER1.1 High-Density Serial Port Fanless Industrial Motherboard
A feature-rich fanless industrial motherboard with extensive serial connectivity, dual Mini-PCIe expansion, multiple display outputs, and 9 USB ports, designed for industrial automation, HMI, POS, kiosk, and embedded control applications requiring comprehensive I/O capabilities.
📋 Product Overview
The EPC19D VER1.1 is a versatile fanless industrial motherboard engineered for applications requiring extensive serial connectivity and comprehensive I/O capabilities. Featuring six RS232 serial ports (supporting four RS485), dual Mini-PCIe expansion slots, nine USB ports, multiple display outputs (VGA, HDMI, LVDS/eDP), and robust industrial-grade construction, this compact board delivers exceptional connectivity in a fanless, wide-temperature design. Ideal for industrial automation, human-machine interface (HMI) systems, point-of-sale terminals, digital signage, kiosks, and embedded control systems where serial communication and reliable 24/7 operation are paramount.
🛠️ Key Features
✓Extensive Serial Connectivity: Six RS232 serial ports with support for four RS485 interfaces for industrial communication.
✓Comprehensive Display Options: VGA (header), HDMI, and LVDS interfaces with optional eDP support for flexible display configurations.
✓Dual Wireless Expansion: Two Mini-PCIe slots for Wi-Fi, 4G/LTE, or other expansion modules.
✓High USB Density: Nine USB ports (1x USB 3.0, 8x USB 2.0) for peripheral connectivity.
✓Integrated Audio System: HD Audio with standard audio jack and 4-pin amplifier interface for audio applications.
✓Fanless Sealed Design: Passive cooling enables fully sealed enclosure construction for dust/water resistance.
✓Extended Temperature Range: Supports operation from -20°C to 60°C for harsh industrial environments.
🔧 Core System Specifications
CPU
Intel® Celeron J1900 quad-core processor @ 2.0GHz
Compatible with Intel® Bay Trail-I/M/D series CPUs
Compatible with Intel® Bay Trail-I/M/D series CPUs
Memory (DDR3L)
1 x SO-DIMM slot, supports 1600/1333 MHz DDR3L, maximum 8GB (Single Channel)
Storage
1 x SATA 2.0 interface
1 x mSATA slot
1 x mSATA slot
Operating System
Windows 7, Windows 10, Linux
Graphics
Integrated Intel® HD Graphics (part of Bay Trail SoC)
🎥 Display & Audio Interfaces
Display Outputs
1 x VGA (header interface, requires cable to external connector)
1 x HDMI port
1 x LVDS interface (supports optional eDP display)
Flexible multi-display configurations for HMI and kiosk applications
1 x HDMI port
1 x LVDS interface (supports optional eDP display)
Flexible multi-display configurations for HMI and kiosk applications
Audio Codec
Realtek ALC262/662/897 HD Audio
Audio Ports
1 x Standard audio jack (supports microphone input and line output)
1 x 4-pin amplifier interface for external audio amplification
1 x 4-pin amplifier interface for external audio amplification
🔌 Connectivity & I/O Ports
USB Ports
1 x USB 3.0 port
8 x USB 2.0 ports
Total 9 USB ports for extensive peripheral connectivity
8 x USB 2.0 ports
Total 9 USB ports for extensive peripheral connectivity
Network
2 x Realtek Gigabit Ethernet ports (RJ45, 10/100/1000 Mbps)
Optional: Single network port configuration available
Optional: Single network port configuration available
Serial Ports
6 x RS232 serial ports
Supports 4 x RS485 interfaces (configurable from RS232 ports)
2 x COM ports with RS485 support
Comprehensive serial connectivity for industrial automation and control
Supports 4 x RS485 interfaces (configurable from RS232 ports)
2 x COM ports with RS485 support
Comprehensive serial connectivity for industrial automation and control
Expansion Slots
2 x Mini-PCIe slots (support Wi-Fi, 4G/LTE, or other expansion modules)
Dual expansion capability for wireless connectivity and additional functions
Dual expansion capability for wireless connectivity and additional functions
System Controls
1 x Clear CMOS button for easy BIOS reset and recovery
Fan Interface
1 x 4-pin CPU fan header (reserved)
Note: Primary cooling is passive/fanless; fan header for optional active cooling scenarios
Note: Primary cooling is passive/fanless; fan header for optional active cooling scenarios
GPIO
Supports 4-channel input & 4-channel output GPIO
Watchdog Timer
Hardware reset function (256 levels, 0~255 seconds)
⚡ Power & Cooling Specifications
Input Voltage
DC 12V ±5%
Power Mode
Supports AT/ATX mode switching for flexible power management
Cooling System
Fanless passive cooling design
Enables sealed enclosure construction for dust-proof and moisture-resistant applications
Zero moving parts for silent operation and maximum reliability in industrial environments
Enables sealed enclosure construction for dust-proof and moisture-resistant applications
Zero moving parts for silent operation and maximum reliability in industrial environments
Extended Temperature Support
Enhanced thermal design supports operation down to -20°C for extreme cold environments
🌎 Environmental & Physical Specifications
Operating Temperature
-20°C to +60°C (Extended temperature range for harsh industrial and outdoor environments)
Storage Temperature
-20°C to +70°C
Operating Humidity
5% to 95% RH (non-condensing)
Dimensions
190mm × 150mm (Compact form factor, smaller than standard Mini-ITX)
⚠️ Important Notes
Memory Specifications: Supports DDR3L SO-DIMM memory modules only (1.35V low voltage). Standard DDR3 (1.5V) modules are not compatible. Maximum supported capacity is 8GB.
Extended Temperature Operation: This motherboard supports operation down to -20°C, making it suitable for cold storage, outdoor, and extreme environment applications. Ensure proper thermal design for reliable operation at temperature extremes.
Power Supply Requirements: Use a stable, high-quality DC 12V ±5% power adapter with adequate current capacity. When utilizing all 9 USB ports, multiple serial devices, and expansion modules, ensure the power supply can deliver sufficient current (typically 4-6A recommended).
Serial Port Configuration: The board provides 6 RS232 serial ports with support for 4 RS485 interfaces. RS485 functionality is configurable from specific RS232 ports. Verify port assignments and configuration requirements for your application.
Display Connectivity: The VGA interface is provided as a header connector requiring appropriate cabling to external connector. LVDS interface supports optional eDP displays – specify display requirements when ordering.
Network Configuration: Standard configuration includes dual Gigabit Ethernet ports. Optional single network port configuration is available for applications requiring only one network connection.
Clear CMOS Function: The dedicated Clear CMOS button allows easy BIOS reset without opening the enclosure. This is particularly useful in sealed systems where physical access to jumpers is limited.
📐 Mechanical Dimensions
Unit: mm (190mm × 150mm – Compact form factor)
Dimensions diagram placeholder. Please insert your product dimension image here.
🖼 Product Images

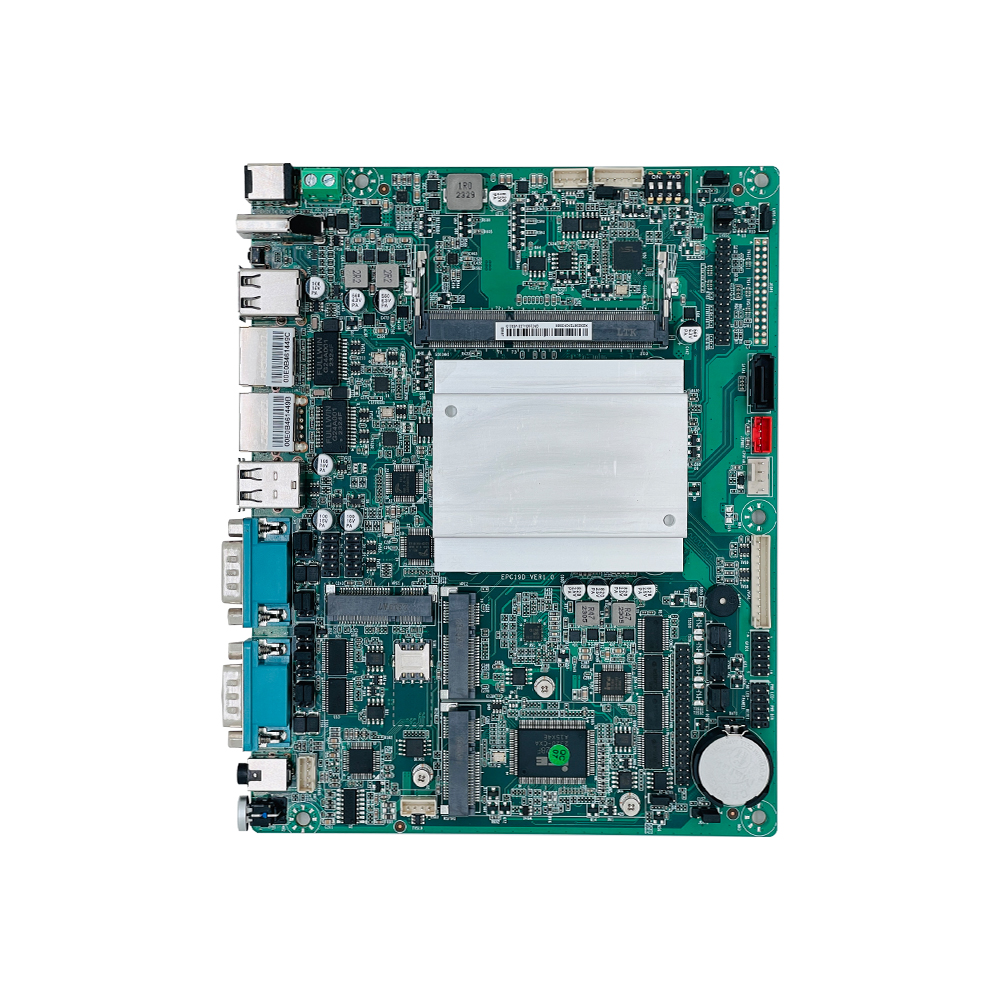

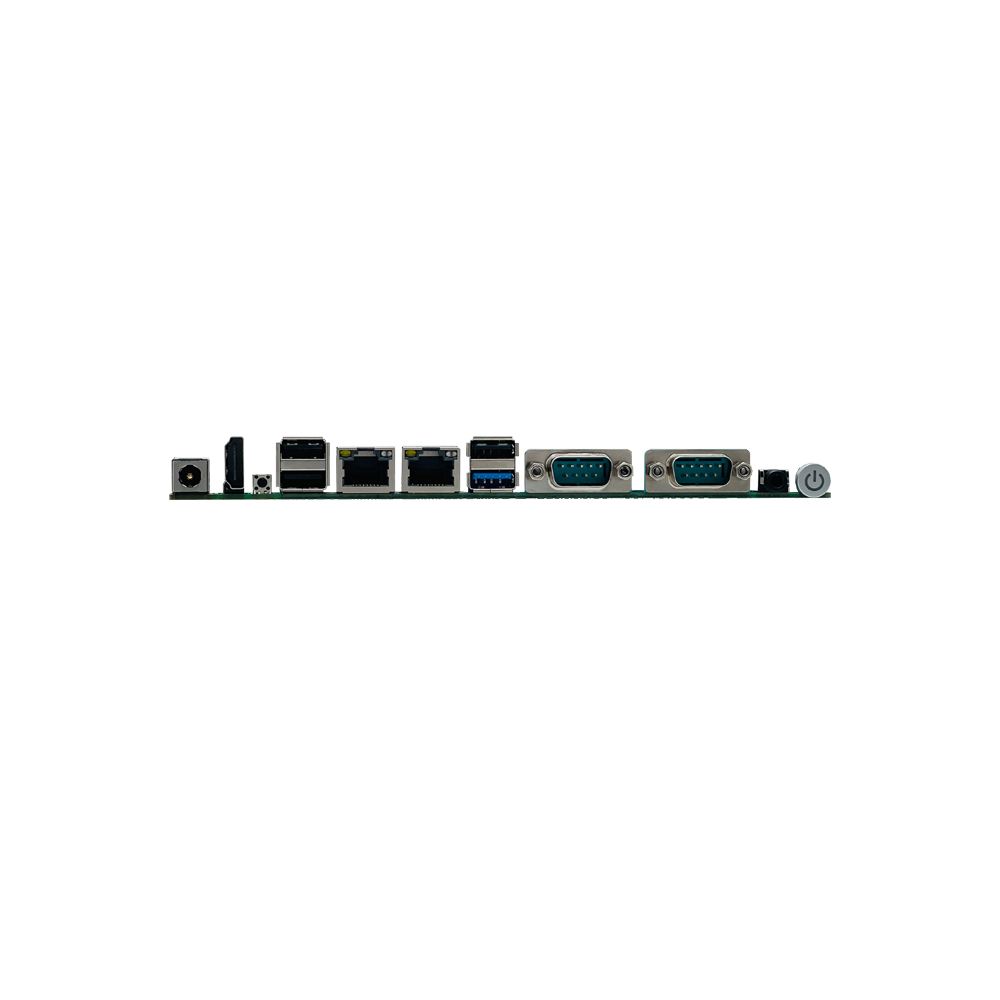

EPC19D VER1.1 Compact Form Factor Detail
