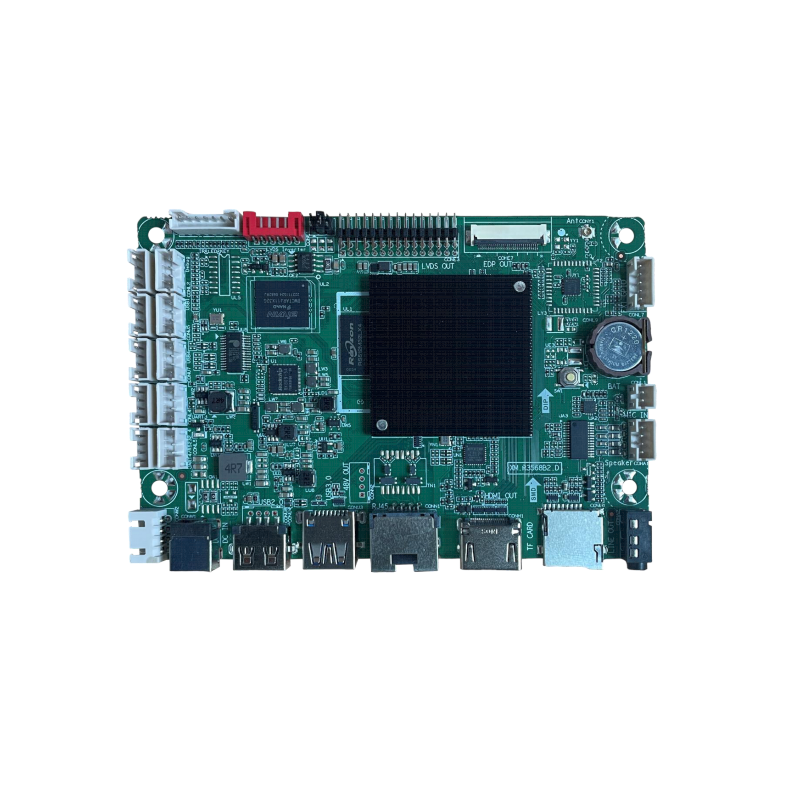

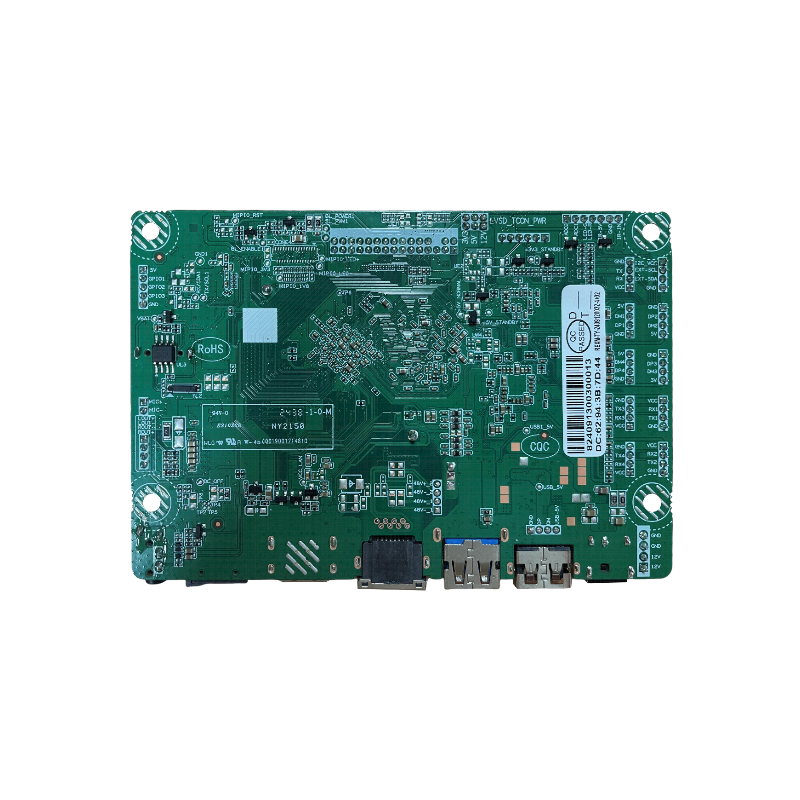

CSIT-XM.R3568.A

XM.R3568.A uses quad-cord Rockchip RK3568 chip, it is configured with ARM Cortex-A55 CPU , Mali G52seriesGPU , and 1 TOPS NPU, supported Android 11.0 system. standard 2 GB DDR and 8 GB eMMC (storage extensible), high-performance and low power, the function of which can perform fluently and stably. Besides,
XM.R3568.A has powerful audio and video processing capability and supports 1080P@60Hz eDP , MIPI DSI , LVDSand4K@60Hz HDMI 2.0 video output.

XM.R3568.A is used in the commercial advertising machine market, with the following functions.

1. Support two screens that display different content;

2. Support eDP display interface output by 1080@60Hz;

3. Support MIPI display interface output by 1080@60Hz;

4. Support HDMI 2.0 display interface output by 4K@60Hz;

5. Support OTG debugging and other functions;

6. Support infrared remote control;

7. Support 8-megapixel MIPI CSI CAMERA ,with built-in 8M ISP;

8. In the human-computer interaction and network equipment interaction, its hardware platform and Android intelligent features can be used in the intelligent terminal motherboard.

Categories: ,

Description

XM.R3568.A uses quad-cord Rockchip RK3568 chip, it is configured with ARM Cortex-A55 CPU , Mali G52seriesGPU , and 1 TOPS NPU, supported Android 11.0 system. standard 2 GB DDR and 8 GB eMMC (storage extensible), high-performance and low power, the function of which can perform fluently and stably. Besides,
XM.R3568.A has powerful audio and video processing capability and supports 1080P@60Hz eDP , MIPI DSI , LVDSand4K@60Hz HDMI 2.0 video output.

XM.R3568.A is used in the commercial advertising machine market, with the following functions.

1. Support two screens that display different content;

2. Support eDP display interface output by 1080@60Hz;

3. Support MIPI display interface output by 1080@60Hz;

4. Support HDMI 2.0 display interface output by 4K@60Hz;

5. Support OTG debugging and other functions;

6. Support infrared remote control;

7. Support 8-megapixel MIPI CSI CAMERA ,with built-in 8M ISP;

8. In the human-computer interaction and network equipment interaction, its hardware platform and Android intelligent features can be used in the intelligent terminal motherboard.

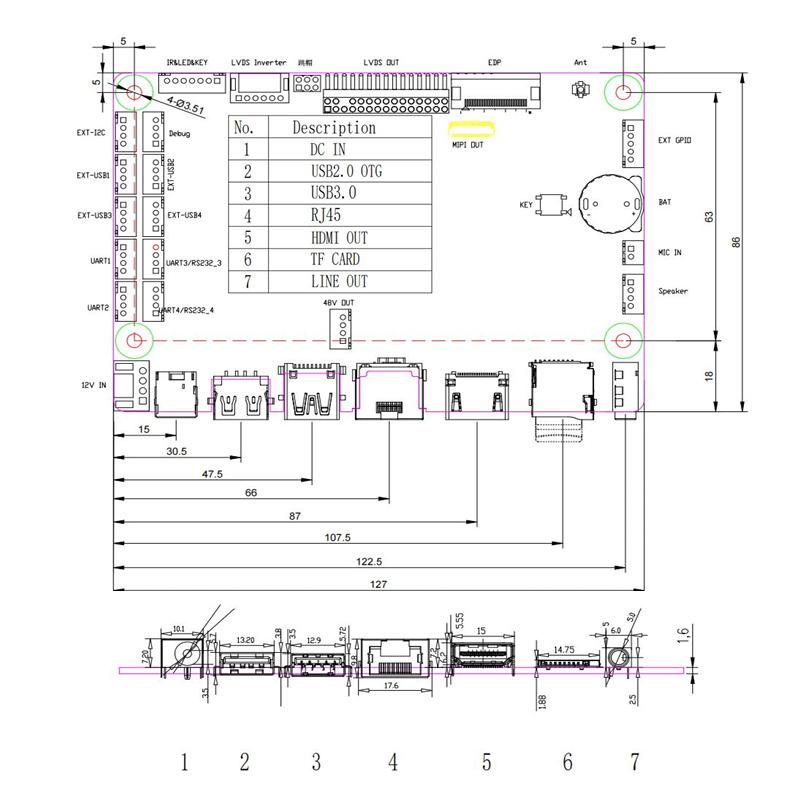

Hardware Context



CPU Quad-core Cortex-A55
GPU Mali-G52-2EE
NPU 1 TOPS
Working voltage 12V±5%
eDP VCC 3.3V/5V, max resolution up to 1080@60Hz
LVDS VCC 3.3V/ 5V/ 12V, max resolution up to 1080@60Hz
MIPI CSI VCC 3.3V/5V, max resolution up to 1080@60Hz
MIPI CSI Support 8-megapixel MIPI CSI CAMERA , with built-in 8M ISP;

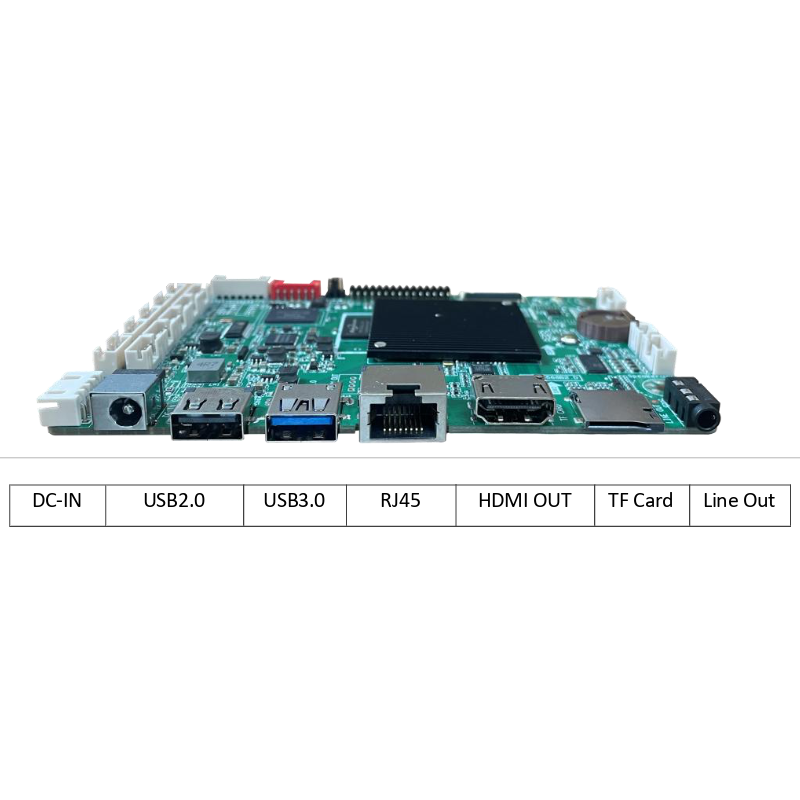

RJ45 RJ45 terminal * 1
UART RS232*1, RS485*1
RAM DDR4 2GB, Optional 4GB or 8GB
EMMC 8GB, 16GB, 32GB, 64GB optional
USB USB *2(2.0 *1, USB 3.0/ OTG*1), EXT-USB*6
Mobile Network Support 4G / 5G module
WIFI Optional 2.4GHz, 2.4GHz+BT, 2.4GHz + 5GHz + BT



Local Operating Function

Network Settings Wired and wireless Internet connections are supported
Time-sharing setup Support time-sharing setting advertising machine switching time period, advertising machine volume
Language switching Supports switching between simplified Chinese and English
Guard dog reset Supports automatic reset when an exception occurs
Screen rotation Supports 0°, 90°, 180°, and 270° screen rotation
System upgrade Supports system background upgrade and local upgrade
Server setup You can manually enter an IP address to connect to a specified server
USB Support USB insert update program, program needs to be saved in the U disk “LProgram” folder
Mouse Support mouse operation page
Page redirection When in the main screen, 10s does not operate the screen will automatically jump to the program playback page; When the sub-page is in the 60s, the screen will automatically jump to the main page



Background release system function

Broadcast management Support for setting program lists, allowing for deletion, preview, publishing, and editing of programs

Support setting the playback schedule of programs

Support for setting message lists, allowing for deletion, preview, and editing of messages

Terminal Management Support terminal monitoring and setting for selected terminals
Message production Support synchronous setting of message content, message playback duration, and message playback time
Programming Support synchronous setting of program name, program content, program duration, playback type, and playback time



Feature

Chipset RK3568
Target Market China and overseas area
OSD Language Multilingual
Panel Type LCD/LED
Panel Interface eDP/ MIPI DSI/ LVDS
Max Resolution eDP/ MIPI DSI/ LVDS: 1920*1080@60Hz
Audio Output Frequency Response: 100Hz~15K Hz @±12dB(1KHz, -12dB reference signal)

Max Output Power: 2 × 8W(8Ω)THD + N < 10% @1KHz (Supply Voltage: 12V, Audio input: 0.5 Vrms)

Power Requirement 12V
Panel Power LVDS 3.3V, 5V, 12V  optional
Power Management Standby Power Consumption < 0.3W(Board Only)
KEY FUNCTION Based on the keypad
