XM.R3566.A Commercial Display Main Board
Rockchip RK3566-based Android 11 mainboard with 1 TOPS NPU for versatile digital signage applications
📋 Product Overview
The XM.R3566.A is a high-performance commercial display main board built around the Rockchip RK3566 quad-core ARM Cortex-A55 processor, featuring Mali-G52 GPU and 1 TOPS NPU. It runs Android 11.0 with standard 2GB DDR4 RAM and 16GB eMMC storage (both expandable). Engineered for low power consumption and high stability, it delivers powerful audio and video processing capabilities, supporting multiple display interfaces including eDP, MIPI DSI, LVDS (up to 1080p@60Hz), and HDMI 2.0 (up to 4K@60Hz). With built-in 8MP ISP and camera support, it’s ideal for interactive digital signage and smart commercial displays.
🛠️ Key Features
✓Multi-interface Video Output: eDP/MIPI DSI/LVDS (1080p@60Hz) & HDMI 2.0 (4K@60Hz).
✓Quad-core ARM Cortex-A55 CPU & Mali-G52 GPU.
✓Integrated 1 TOPS NPU for AI applications.
✓Camera Support: 8MP MIPI CSI with built-in 8MP ISP.
✓Android 11.0 OS with multilingual OSD support.
✓Memory: 2GB DDR4 RAM (expandable up to 4GB).
✓Storage: 16GB eMMC Flash (expandable up to 32GB).
✓Supports IR remote control and keypad operation.
✓OTG debugging support.
✓Touch screen I2C interface support.
✓Wireless options: 2.4GHz WiFi, WiFi+BT, or dual-band WiFi+BT.
✓Comprehensive multimedia playback format support.
🔧 System Configuration
CPU
Quad-core ARM Cortex-A55
GPU
ARM Mali-G52 2EE
NPU
1 TOPS
RAM
LPDDR4, default 2GB (1GB/4GB optional)
Flash Storage
eMMC, default 16GB (8GB/32GB optional)
Operating System
Android 11.0
Target Market
China & International
🎥 Performance & Video/Audio
Main Chipset
Rockchip RK3566
Panel Interface
eDP / MIPI DSI / LVDS
HDMI Output
Max 3840×2160 @ 60Hz (HDMI 2.0)
Camera Support
8MP MIPI CSI (with built-in 8MP ISP)
Audio Output Power
2 x 5W / 8Ω (Speaker) @ THD+N < 10%
Frequency Response
100Hz ~ 15KHz @ ±12dB (1KHz, -12dB reference)
⚡️ Electrical Characteristics
Input Voltage
DC 12V (current ≥ 5A)
Panel Voltage (eDP/MIPI)
3.3V / 5V (Selectable)
Panel Voltage (LVDS)
3.3V / 5V / 12V (Selectable)
Installation Safety
Keep ≥ 8.0mm away from metal parts
🔌 Interface & Connectivity
Power Input
4-pin CONW2 (12V IN)
Video Output
CONE3 (LVDS OUT, 2x15pin), CONE2 (MIPI OUT, 31pin), CONE1 (eDP, 30pin)
HDMI Output
Standard Type-A connector (HDMI 2.0, 4K@60Hz)
USB Ports
USB 2.0/OTG × 1, USB 3.0 × 1, Extended USB × 5 (CONU1,2,7,8,9)
Network
RJ45 Ethernet port × 1
Audio Output
CONA4 (4-pin Speaker output, 2×5W/8Ω)
Serial Ports
UART1/RS232, UART2/RS232 (CONL7,8), UART3/RS485 (CONL9)
Debug Interface
DEBUG header (4-pin CONL5), MCU DEBUG (CONL1)
Control Interfaces
CONL3: IR & LED & KEY (7-pin), CONU4: GPIO (4-pin)
Camera Interface
MIPI CAMERA (30-pin CONL4, supports 8MP)
Touch Screen
TP I2C (6-pin CONL2, for touch panel)
Audio Input
MIC IN (2-pin CONA3)
Panel Power/Control
CONE4 (LVDS Power), CONG1 (LVDS Backlight Inverter)
Battery Backup
BAT connector (2-pin CONL6 for RTC battery)
Wireless Options
Optional: 2.4GHz WiFi, 2.4GHz+BT, or 2.4GHz+5GHz+BT
🌎 Environmental Requirements
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 70°C
Operating Humidity
10% to 90% (non-condensing)
Storage Humidity
5% to 95% (non-condensing)
Operating Altitude
Up to 10,000 ft. (3,048 m)
⚠️ Important Notes
Certification & Safety:This board version requires whole-machine testing for final product certification. Maintain at least 8.0mm distance from metal parts during installation for safety. The board is ESD-sensitive; use proper anti-static handling.
License Responsibility:The purchase price does not include licenses for specific media formats or codecs (e.g., AC3, AAC, DTS, DivX). The buyer is solely responsible for obtaining necessary licenses and paying associated fees.
ESD & Handling:This board contains ESD-sensitive components. Use anti-static bags and follow proper handling procedures during installation and debugging.
Display Calibration:Panel brightness is temperature-sensitive. Measure brightness 10-30 minutes after power-on for accurate calibration.
System Features:Supports watchdog reset, screen rotation (0°/90°/180°/270°), scheduled operation, multi-language OSD (Simplified Chinese/English), local/USB updates, and auto-navigation.
Multimedia Support:Supports extensive video formats (MPEG-1/2/4, H.264/AVC, H.265/HEVC, VP8/9, VC-1, etc.) and audio formats (MP3, WMA, FLAC, AAC, etc.) – subject to license requirements.

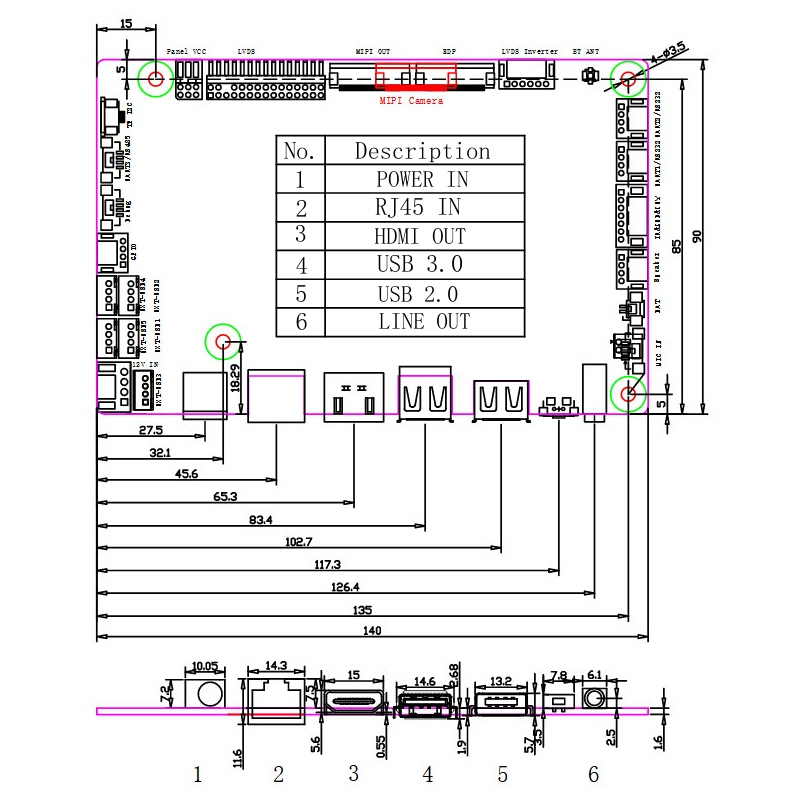

📐 Mechanical Dimensions
Unit: mm
🖼 Product Images
(Note: Product images are for reference only. Please refer to the actual product.)
