XM.R3288.L Commercial Display Main Board

Rockchip RK3288 Cortex-A17 based Android 5.1 mainboard with 4K H.265 decoding for legacy digital signage

📋 Product Overview

The XM.R3288.L is a commercial display main board built around the pioneering Rockchip RK3288 quad-core Cortex-A17 processor – the world’s first with this architecture. It features the powerful Mali-T764 GPU (600MHz) and is the first chip to support 4Kx2K hardware H.265 decoding. Running Android 5.1, it offers configurations from 1GB DDR3 RAM (up to 4GB) and 8GB eMMC storage (up to 64GB). Designed for commercial display applications, it supports dual 8-bit LVDS interface for dual-screen display, drives 7-inch to 110-inch 2K displays, and provides comprehensive audio/video processing with broad format compatibility.

🛠️ Key Features

✓Dual-screen display with dual 8-bit LVDS interface.

✓World’s first quad-core ARM Cortex-A17 processor (up to 1.8GHz).

✓World’s first Mali-T76x series GPU (Mali-T764).

✓World’s first 4Kx2K hardware H.265 decoder.

✓Supports driving 7-inch to 110-inch 2K display screens.

✓Android 5.1 OS with multilingual OSD support.

✓Memory: 1GB DDR3 RAM (2GB/4GB optional).

✓Storage: 8GB eMMC (16GB/32GB/64GB optional).

✓Supports 3G/4G mobile network modules.

✓OTG debugging support.

✓Low standby power consumption: < 0.3W (board only).

🔧 System Configuration

CPU

Quad-core Cortex-A17, up to 1.8GHz

GPU

ARM Mali-T764 @ 600MHz

Video Decoder

4Kx2K H.265 hardware decoder

RAM

DDR3, default 1GB (2GB/4GB optional)

Flash Storage

eMMC, default 8GB (16GB/32GB/64GB optional)

Operating System

Android 5.1

Target Market

China & International

Note: RK3288 was a pioneering chip featuring multiple industry-first technologies. This board supports legacy applications while maintaining compatibility with modern display standards.

🎥 Performance & Video/Audio

Main Chipset

Rockchip RK3288

Panel Interface

Dual 8-bit LVDS, eDP

Display Support

7-inch to 110-inch 2K displays

Max Resolution

1920×1080 @ 60Hz (LVDS/eDP)

Audio Output Power

2 x 8W / 8Ω (Speaker) @ THD+N < 10%

Frequency Response

100Hz ~ 15KHz @ ±12dB (1KHz, -12dB reference)

⚡️ Electrical Characteristics

Input Voltage

DC 12V ±5%

Panel Voltage (LVDS)

3.3V / 5V / 12V (jumper selectable)

Panel Voltage (eDP)

3.3V / 5V / 12V (Selectable)

Standby Power

< 0.3W (Board only)

Key Functions

Keypad-based operation

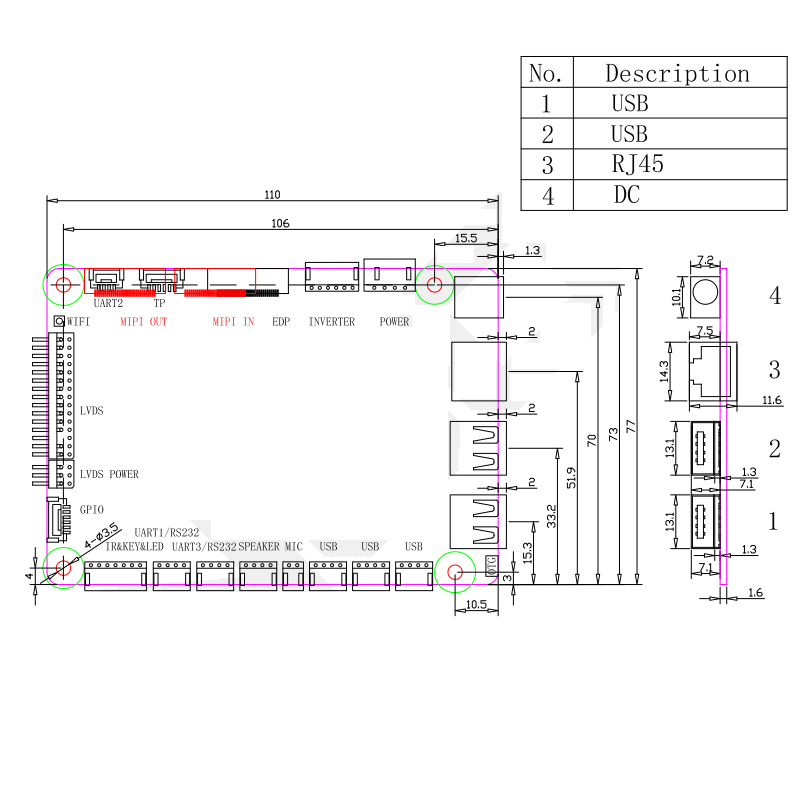

🔌 Interface & Connectivity

Power Input

12V DC input

Video Output

Dual 8-bit LVDS, eDP (1080p@60Hz)

MIPI Interfaces

MIPI input × 1, MIPI output × 1

USB Ports

USB × 2 (on-board), PH2.0 4-pin × 3 (extended)

Network

RJ45 Ethernet port × 1

Audio Output

Speaker output (2×8W/8Ω)

Serial Ports

TTL UART × 2

Mobile Network

3G / 4G module support

Wireless Options

Optional: 2.4GHz WiFi, or 2.4GHz+5GHz+BT4.0

Control Interfaces

Keypad interface for control functions

🌎 Environmental Requirements

Operating Temperature

0°C to 40°C (typical commercial range)

Storage Temperature

-20°C to 85°C (typical range)

Operating Humidity

10% to 85% (non-condensing)

Storage Humidity

10% to 90% (non-condensing)

⚠️ Important Notes

Certification:This board version is not intended for final product certification. Whole-machine testing and certification are required for end products.

License Responsibility:The purchase price does not include licenses for specific media formats, codecs (e.g., H.265, audio formats), or interface technologies. The buyer is solely responsible for obtaining necessary licenses.

ESD & Handling:This board contains ESD-sensitive components. Proper anti-static handling procedures must be followed during installation and debugging.

Compatibility:Performance of high-speed signals (LVDS, eDP, USB, etc.) can be affected by cable specifications and length. Test thoroughly when changing cables.

System Features:Supports watchdog reset, screen rotation (0°/90°/180°/270°), scheduled operation, multi-language OSD (Simplified Chinese/English), local/USB updates, and auto-navigation (10s/60s timeouts).

Legacy Support:RK3288 was an innovative chip when released. This board supports mainstream audio/video formats and image decoding with 4K H.265 hardware acceleration. Contact support for compatibility details with specific applications.
