XM.H560.F Smart Advertising Display Main Board
HiSilicon 560-based Android 9 mainboard with 4K@60Hz V-BY-ONE and LVDS support for high-performance digital signage
📋 Product Overview
The XM.H560.F is a smart advertising machine main board built around the HiSilicon 560 chipset, featuring a quad-core ARM Cortex-A55 CPU and Mali G52 GPU. It offers standard configurations of 1GB DDR with 8GB eMMC or 2GB DDR with 16GB eMMC (both expandable). Deeply optimized based on Android 9.0, it supports 4K@60Hz V-BY-ONE and LVDS display interfaces, providing rich expansion interfaces, excellent hardware performance, and a smooth operating system. With powerful multimedia playback capabilities, it supports 4K@60Hz video playback through USB and features an information release system with 4K support.
🛠️ Key Features
✓4K@60Hz V-BY-ONE display interface support.
✓Quad-core ARM Cortex-A55 CPU @ 1.5GHz.
✓Mali G52 GPU for enhanced graphics performance.
✓4K@60Hz video playback capability through USB.
✓Android 9.0 OS with deep optimization.
✓Memory: 1GB or 2GB DDR options.
✓Storage: 8GB/16GB/32GB eMMC options.
✓Onboard 2.4GHz WiFi + Bluetooth.
✓TF card and SIM card slots for expansion.
✓Easy firmware upgrade via USB 2.0 interface.
✓Low standby power consumption: < 0.3W (board only).
🔧 System Configuration
CPU
Quad-core ARM Cortex-A55 @ 1.5GHz
GPU
ARM Mali G52
Main Chipset
HiSilicon Hi3751V560
RAM
1GB or 2GB DDR options
Flash Storage
eMMC, 8GB/16GB/32GB options
Operating System
Android 9.0 (deeply optimized)
Target Market
China & International
🎥 Performance & Video/Audio
Main Chipset
HiSilicon Hi3751V560
Panel Interface
LVDS, V-BY-ONE
Max Resolution (LVDS)
1920×1080 @ 60Hz
Max Resolution (V-BY-ONE)
4K (3840×2160) @ 60Hz
Video Playback
4K@60Hz via USB interface
Audio Output Power
2 x 8W / 8Ω (Speaker) @ THD+N < 10%
Frequency Response
100Hz ~ 15KHz @ ±12dB (1KHz, -12dB reference)
⚡️ Electrical Characteristics
Input Voltage
DC 12V ±5%
Panel Voltage (LVDS)
3.3V / 5V / 12V (Selectable)
Panel Voltage (V-BY-ONE)
12V
Standby Power
< 0.3W (Board only)
Key Functions
Keypad-based operation
🔌 Interface & Connectivity
Power Input
DC 12V input
Video Output
LVDS (1080p@60Hz), V-BY-ONE (4K@60Hz)
HDMI Output
Standard HDMI connector
USB Ports
USB 2.0 × 2 (terminal), USB socket × 2
Network
RJ45 Ethernet port
Audio Output
Earphone / Line Out / Speaker (2×8W/8Ω)
Storage Expansion
TF card slot × 1
Mobile Network
SIM card slot × 1
Wireless
Onboard: 2.4GHz WiFi + BT; Optional: 2.4GHz+5GHz+BT
Firmware Upgrade
Easy upgrade via USB 2.0 interface
Information Release
4K information release system support
🌎 Environmental Requirements
Operating Temperature
0°C to 40°C (typical commercial range)
Storage Temperature
-20°C to 85°C (typical range)
Operating Humidity
10% to 85% (non-condensing)
Storage Humidity
10% to 90% (non-condensing)
⚠️ Important Notes
Certification:This board version is not intended for final product certification. Whole-machine testing and certification are required for end products.
License Responsibility:The purchase price does not include licenses for specific media formats, codecs (e.g., H.265, audio formats), or interface technologies. The buyer is solely responsible for obtaining necessary licenses.
ESD & Handling:This board contains ESD-sensitive components. Proper anti-static handling procedures must be followed during installation and debugging.
Compatibility:Performance of high-speed signals (V-BY-ONE, LVDS, USB, etc.) can be affected by cable specifications and length. Test thoroughly when changing cables.
System Features:Supports watchdog reset, screen rotation (0°/90°/180°/270°), scheduled operation, multi-language OSD (Simplified Chinese/English), local/USB updates, and auto-navigation (10s/60s timeouts).
Multimedia Support:Supports powerful multimedia playback through USB interface, playing most multimedia files with 4K@60Hz video capability. Information release system supports 4K content.

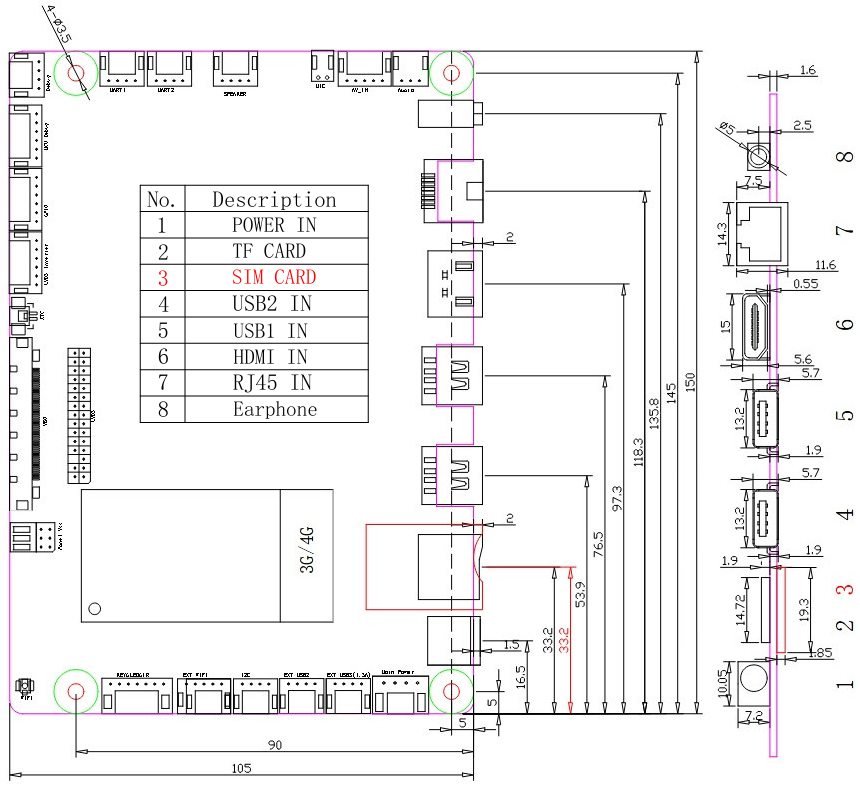

📐 Mechanical Dimensions
Unit: mm
