OPS86C VER2.0 OPS-Compatible X86 Motherboard
A compact, industrial-grade OPS motherboard supporting 4th Gen Intel® Haswell processors, designed for 24/7 operation in digital signage, interactive kiosks, and embedded applications.
📋 Product Overview
The OPS86C VER2.0 is a high-performance OPS-compliant motherboard based on Intel® Haswell architecture. It features rich I/O interfaces, triple display outputs, and industrial-grade reliability with wide-temperature operation (-10°C to 60°C). Ideal for demanding commercial display and embedded computing solutions.
🛠️ Key Features
✓OPS Compliance: Standard OPS slot for easy integration with compatible displays.
✓Powerful CPU Support: Intel® PGA 946 socket for 4th Gen Celeron, Pentium, Core i3/i5/i7 processors.
✓Triple Display Outputs: Independent VGA, HDMI, and DisplayPort for flexible multi-screen setups.
✓Rich Expansion: Mini-PCIe, M.2 Key-E (Wi-Fi), mSATA, and multiple USB ports for customization.
✓Industrial Reliability: Dual-ball bearing smart fan and wide-temperature design for 24/7 stable operation.
✓Quick Recovery: Supports Ghost one-key restore for easy system maintenance.
✓Industrial Control Ready: GPIO and 256-level Watchdog timer for embedded applications.
🔧 Core System Specifications
CPU
Intel® PGA 946 socket, supports 4th Gen Intel® Haswell Celeron/Pentium/Core i3/i5/i7 processors
Chipset
High-speed HM86/HM87 chipset
Memory (DDR3L)
1 x SO-DIMM slot, supports 1600/1333 MHz, maximum 8GB (Single Channel)
Storage
1 x mSATA slot
1 x 2.5″ SATA HDD/SSD interface
1 x 2.5″ SATA HDD/SSD interface
Operating System
Windows 7, Windows 10, Linux
Graphics
Integrated Intel® HD Graphics (varies by CPU)
🎥 Display & Audio Interfaces
Display Outputs
1 x VGA, 1 x HDMI, 1 x DisplayPort (Independent triple display supported)
Audio Codec
Realtek ALC262/662/897 HD Audio
Audio Ports
1 x Line Out (Green 3.5mm jack)
1 x Microphone In (Pink 3.5mm jack)
1 x Microphone In (Pink 3.5mm jack)
OPS Slot Audio/Video
OPS slot includes 1 x HDMI and 3 x USB pass-through
🔌 Connectivity & I/O Ports
USB Ports
4 x USB 2.0 ports
2 x USB 3.0 ports
3 x USB via OPS slot (Total 9 ports)
2 x USB 3.0 ports
3 x USB via OPS slot (Total 9 ports)
Network
1 x Realtek Gigabit Ethernet (RJ45, 10/100/1000 Mbps)
Expansion Slots
1 x Mini-PCIe slot (supports Wi-Fi modules)
1 x M.2 Key-E slot (for Wi-Fi/Bluetooth)
1 x OPS slot (standard OPS interface)
1 x M.2 Key-E slot (for Wi-Fi/Bluetooth)
1 x OPS slot (standard OPS interface)
Fan Interface
1 x 4-pin CPU fan header (supports PWM control)
GPIO
Supports 4-channel input & 4-channel output GPIO
Watchdog Timer
Hardware reset function (256 levels, 0~255 seconds)
⚡ Power & Electrical Specifications
Input Voltage
DC 19V ±5%
Cooling System
Dual-ball bearing smart fan (ensures long-term stable operation)
System Recovery
Supports Ghost one-key restore function
🌎 Environmental & Physical Specifications
Operating Temperature
-10°C to +60°C (Wide-temperature operation)
Storage Temperature
-20°C to +70°C
Operating Humidity
5% to 95% RH (non-condensing)
Dimensions
190mm × 170mm (Compact form factor)
⚠️ Important Notes
CPU Compatibility: This motherboard supports 4th Generation Intel® Haswell processors with PGA 946 socket. Ensure CPU compatibility before purchase.
Memory Specifications: Supports DDR3L SO-DIMM memory modules only (1.35V). Standard DDR3 (1.5V) modules are not compatible and may cause damage.
Power Supply Requirements: Use only a stable DC 19V ±5% power adapter. Insufficient or unstable power may cause system instability or damage.
Thermal Management: For continuous operation at high ambient temperatures (above 40°C), ensure adequate system ventilation. The dual-ball bearing fan is designed for longevity but requires periodic inspection in dusty environments.
OPS Integration: When installed in an OPS slot, ensure proper alignment and secure connection. The OPS interface provides additional HDMI and USB ports as pass-through.
ESD Protection: This board contains static-sensitive components. Always use proper anti-static equipment and procedures during handling and installation.
📐 Mechanical Dimensions
Unit: mm
Dimensions diagram placeholder. Please insert your product dimension image here.

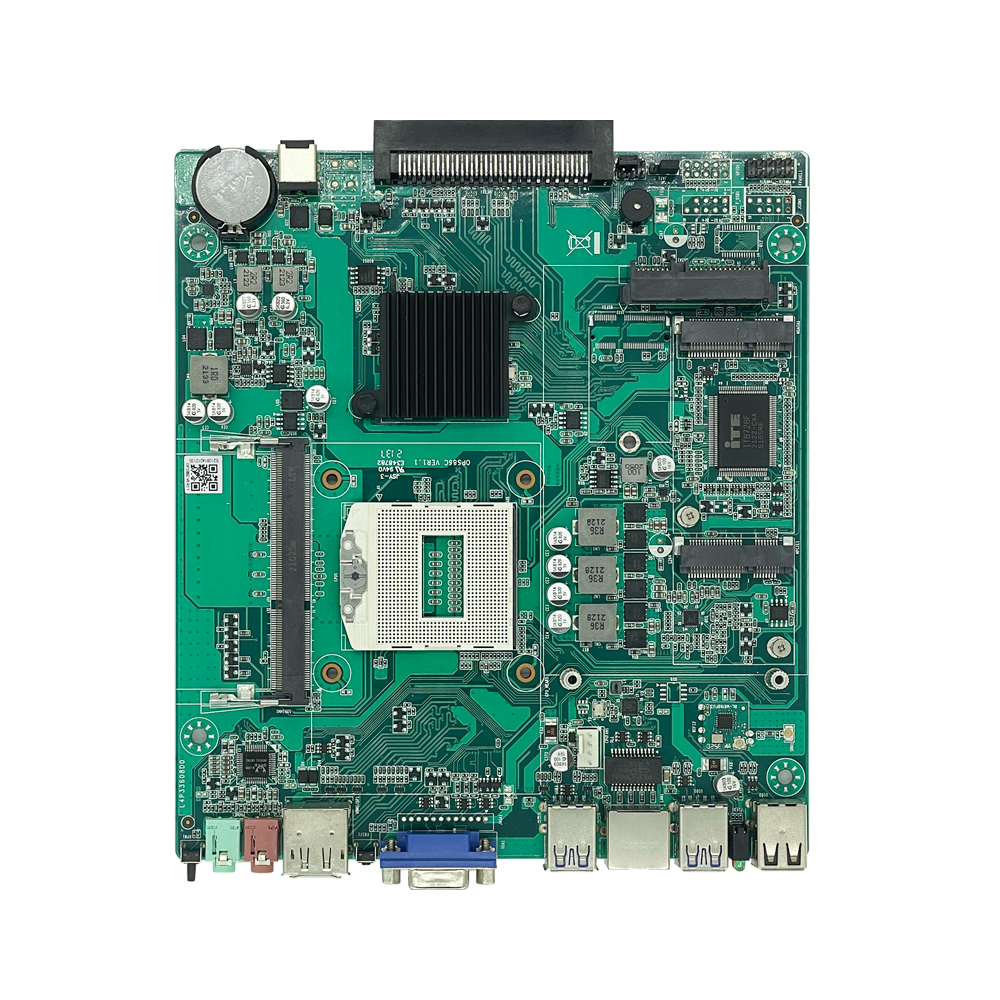

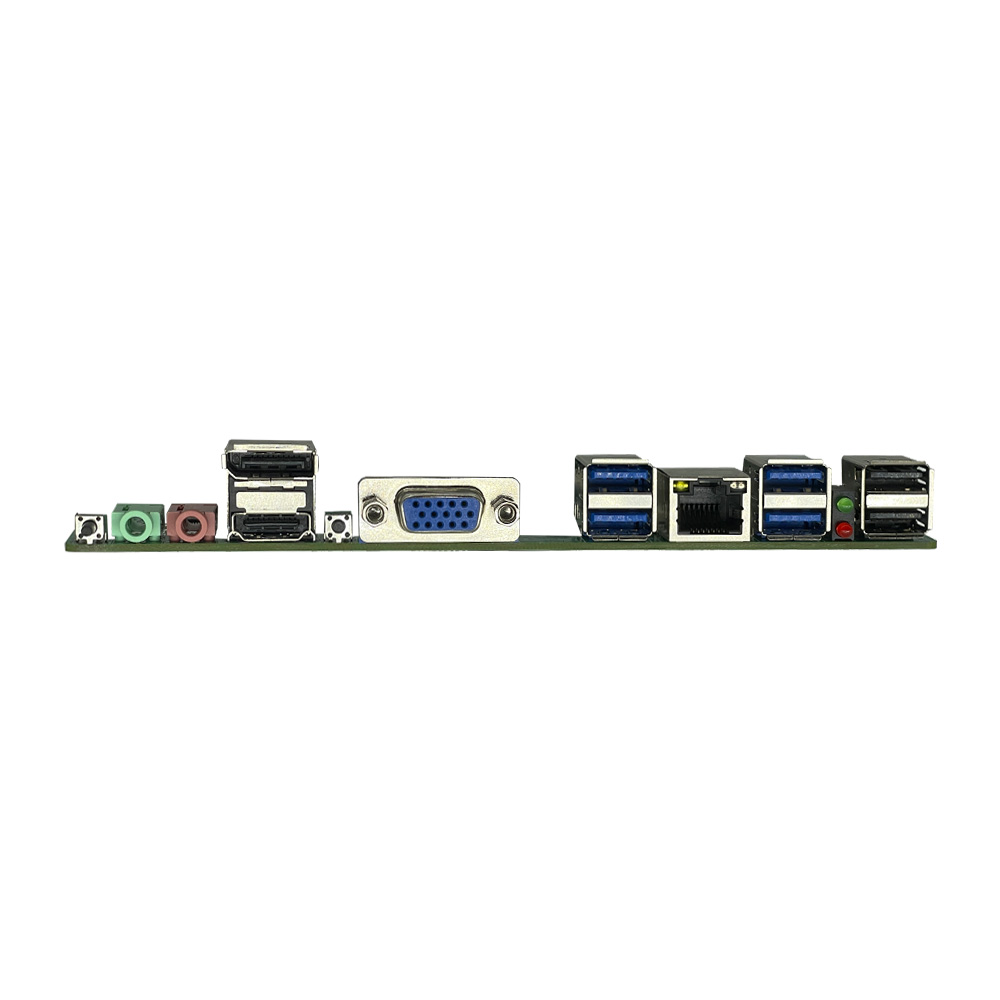

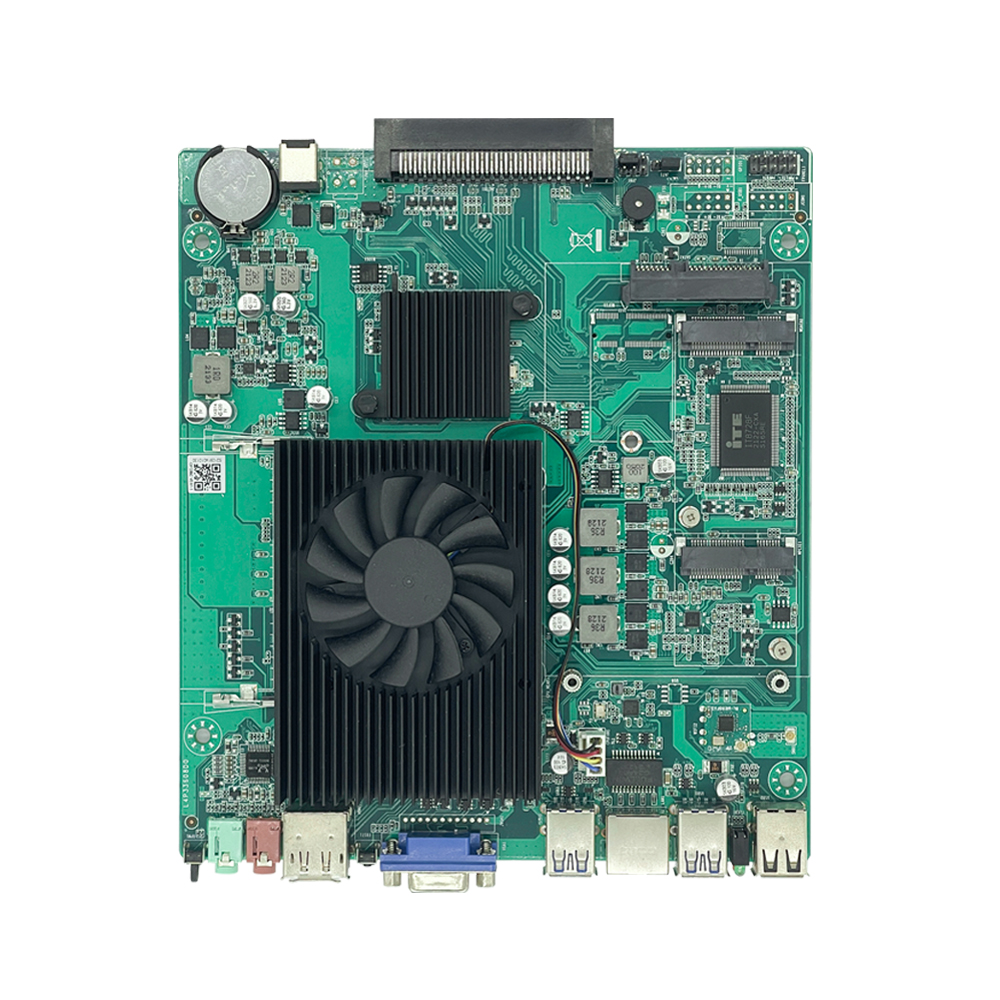

🖼 Product Images
