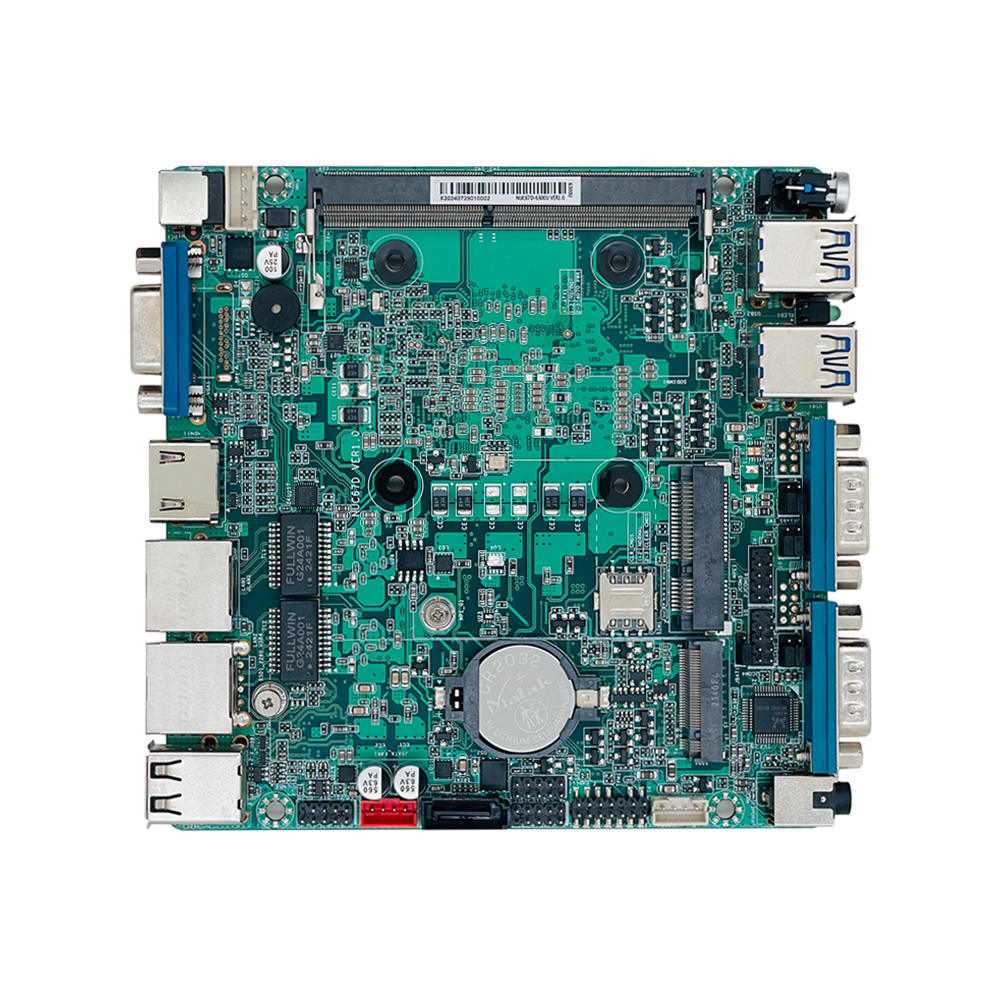

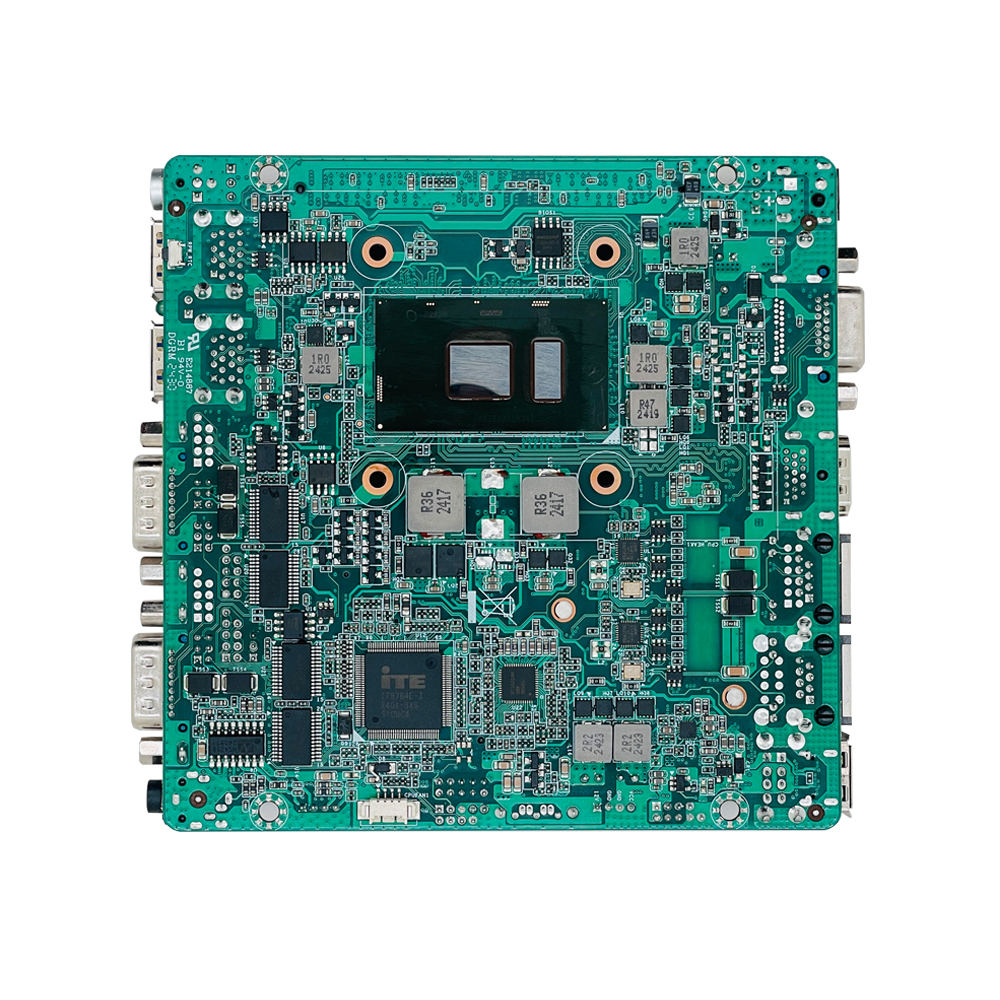

NUC67D-N22 VER1.1 Fanless Industrial Motherboard (Skylake/Kaby Lake-U)

An advanced, fanless embedded motherboard supporting 6th/7th Gen Intel® Core™ U-series processors, featuring high-speed M.2 storage, expansive I/O, enhanced memory support, and robust security for next-generation industrial computing.

📋 Product Overview

The NUC67D-N22 VER1.1 represents a significant evolution in the NUC series, built around the higher-performance Intel® Skylake-U and Kaby Lake-U processor platforms. This motherboard combines modern interfaces like M.2 Key-M for NVMe/SATA storage, support for up to 32GB DDR4 memory, flexible multi-serial port configurations, and integrated TPM 2.0 security in a compact, fanless, and rugged design, making it ideal for demanding automation, edge computing, and secure embedded applications.

🛠️ Key Features

✓Modern CPU Platform: Supports socketed 6th Gen (Skylake-U) and 7th Gen (Kaby Lake-U) Intel® Celeron, Pentium, and Core™ i3/i5/i7 processors for superior performance and efficiency.

✓High-Speed M.2 Storage: Integrated M.2 Key-M 2280 slot (SATA/PCIe auto-switching) enables ultra-fast NVMe or SATA SSDs for rapid data access.

✓Expanded Memory & I/O: Supports up to 32GB DDR4 memory and provides 9 USB ports (5x USB 2.0, 4x USB 3.0) for extensive connectivity.

✓Versatile Serial Communication: Features dual serial ports defaulting to RS485, with an optional configuration supporting up to four RS232 ports for maximum industrial device compatibility.

✓Enhanced Security: Onboard TPM 2.0 (Trusted Platform Module) header provides hardware-based security for encryption, key management, and platform integrity.

✓Flexible Display Options: Offers VGA or DisplayPort (configurable) plus HDMI 1.4 for dual-display setups.

✓Rugged & Reliable: Fanless design, wide-temperature operation (-10°C to +60°C), and industrial-grade components ensure stability in harsh environments.

🔧 Core System Specifications

CPU Socket

Socketed CPU support for Intel® 6th Gen (Skylake-U) and 7th Gen (Kaby Lake-U) processors.

Example: Intel® Core™ i5-6300U, i5-7200U, i5-8250U. Compatible with Celeron, Pentium, Core™ i3/i5/i7 low-power series.

Chipset

Integrated Intel® 100 Series (Skylake) / 200 Series (Kaby Lake) Platform Controller Hub (PCH)

Memory (DDR4)

1 x SO-DIMM slot, Single Channel DDR4 2133MHz (1.2V), supports up to 32GB

Storage

1 x M.2 Key-M 2280 slot (SATA & PCIe NVMe auto-switching)

1 x SATA 3.0 interface (for 2.5″ HDD/SSD)

Operating System

Windows 7, Windows 10, Linux

Graphics

Integrated Intel® HD Graphics 520 (Skylake) or HD Graphics 620 (Kaby Lake). Performance varies by selected CPU.

🎥 Display & Audio Interfaces

Display Outputs

1 x HDMI 1.4

1 x VGA or 1 x DisplayPort (configurable option – verify specific board variant)

(Supports dual independent display output)

Audio Codec

Realtek ALC262/662/897 HD Audio

Audio Port

1 x 3.5mm combo audio jack (supports Mic-in/Line-out)

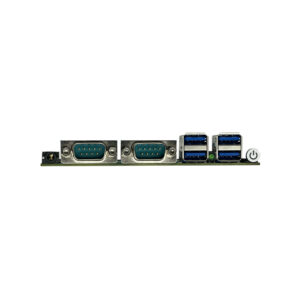

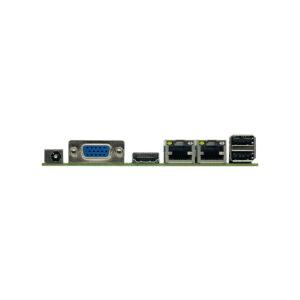

🔌 Connectivity & I/O Ports

USB Ports

4 x USB 3.0 ports

5 x USB 2.0 ports

(Total 9 USB ports)

Network (LAN)

2 x Realtek Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports.

(Optional single LAN configuration available)

Serial Ports (COM)

Default: 2 x RS485.

Optional: Can be configured to support up to 4 x RS232.

(Highly flexible for industrial automation and device networking)

Expansion Slots

1 x M.2 Key-M 2280 slot (for NVMe/SATA SSD – see Storage)

1 x Mini-PCIe slot (supports Wi-Fi or 4G LTE modules)

Security

1 x TPM 2.0 (Trusted Platform Module) header (2×6 pin). Enables hardware-based security features.

Fan Interface

1 x 4-pin CPU fan header (PWM support). Note: Board is designed for fanless operation but includes header for optional active cooling.

GPIO

Supports 4-channel input & 4-channel output GPIO

Watchdog Timer

Hardware reset function (256 levels, 0~255 seconds)

⚡ Power & Electrical Specifications

Input Voltage

DC 12V ±5%

Power Mode

Supports AT and ATX mode switching for flexible power management.

Cooling System

Fanless passive heatsink design for silent, maintenance-free, and dust-resistant operation. Fan header provided for optional active cooling if required.

🌎 Environmental & Physical Specifications

Operating Temperature

-10°C to +60°C (Wide-temperature operation for industrial environments)

Storage Temperature

-20°C to +70°C

Operating Humidity

5% to 95% RH (non-condensing)

Dimensions (Board)

120mm × 120mm (Ultra-compact form factor, 4.7″ x 4.7″)

⚠️ Important Notes

CPU Generation & Compatibility: Supports 6th Gen (Skylake) and 7th Gen (Kaby Lake) U-series processors. Verify CPU compatibility (socket and TDP) before purchase and installation. Note that 8th Gen processors (e.g., i5-8250U) are part of the Kaby Lake Refresh family and require explicit BIOS/board compatibility confirmation.

M.2 Storage Configuration: The M.2 Key-M slot supports both SATA and PCIe (NVMe) SSDs in the 2280 form factor. The slot auto-switches, but ensure your SSD matches the supported interface. Booting from NVMe may require UEFI BIOS and OS support.

Serial Port Configuration (Critical): The board defaults to 2 x RS485. If your application requires RS232 or up to 4 RS232 ports, this is an optional configuration that must be specified when ordering. Do not assume RS232 is present by default.

TPM 2.0 Security: The TPM 2.0 functionality requires a separate TPM module to be installed on the provided header. This is not included with the base board but is essential for enabling hardware-based security features like BitLocker drive encryption.

Display Output Option: The secondary display port is either VGA or DisplayPort as a configurable variant. Confirm which interface your specific board includes for your monitor setup.

Power & Thermal: With support for higher-performance CPUs and NVMe storage, ensure the 12V DC power supply is robust (recommended ≥ 90W). The fanless design must be paired with adequate system-level passive cooling, especially under high load.
