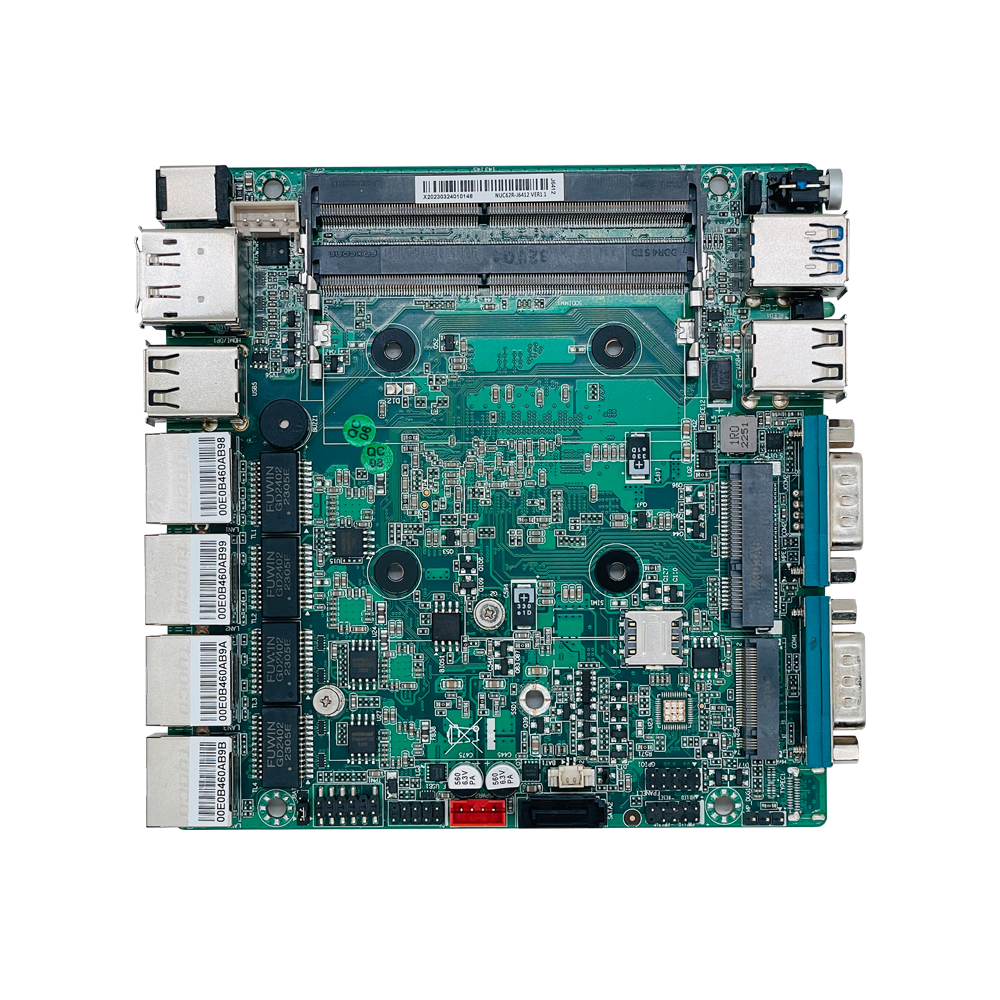

NUC62R-N42 VER1.1 Fanless Industrial Motherboard (Elkhart Lake)

A high-performance, fanless networking powerhouse built on the Intel® Elkhart Lake platform, featuring quad 2.5GbE ports, dual-channel DDR4 memory, and robust industrial I/O for demanding firewall, router, and edge server applications.

📋 Product Overview

The NUC62R-N42 VER1.1 is a premium, fanless embedded motherboard engineered for networking and compute-intensive edge applications. At its core is the Intel® Elkhart Lake platform with a soldered Celeron J6412 quad-core processor, delivering a significant performance uplift. Its defining features include four Intel® 2.5GbE network controllers and dual-channel DDR4 memory support, providing superior data throughput and system responsiveness. Combined with modern storage, flexible serial I/O, and a rugged fanless design, it is the ideal solution for building high-performance network appliances, industrial servers, and secure gateways.

🛠️ Key Features

✓Quad 2.5GbE High-Speed Networking: Integrated four Intel® I226 2.5 Gigabit Ethernet ports for exceptional network bandwidth and low latency.

✓Dual-Channel Memory Performance: Features two SO-DIMM slots supporting dual-channel DDR4 3200MHz, up to 32GB, for significantly improved CPU and graphics performance.

✓Enhanced CPU Power: Integrated Intel® Celeron J6412 quad-core processor (Elkhart Lake), offering higher performance for demanding compute tasks.

✓Modern Storage & Expansion: Includes M.2 Key-M slot for fast NVMe/SATA SSDs (2242/2280) and Mini-PCIe for wireless connectivity.

✓Robust Industrial I/O: Comprehensive connectivity with 8 USB ports, dual serial COM ports (configurable to RS485), GPIO, and TPM 2.0 security header.

✓Fanless & Rugged Reliability: Passive cooling design enables silent, maintenance-free operation in sealed, dust-prone, or wide-temperature (-10°C to +60°C) environments.

✓Professional-Grade Build: All advanced features integrated into a compact, industrial-grade 120mm x 120mm form factor.

🔧 Core System Specifications

CPU

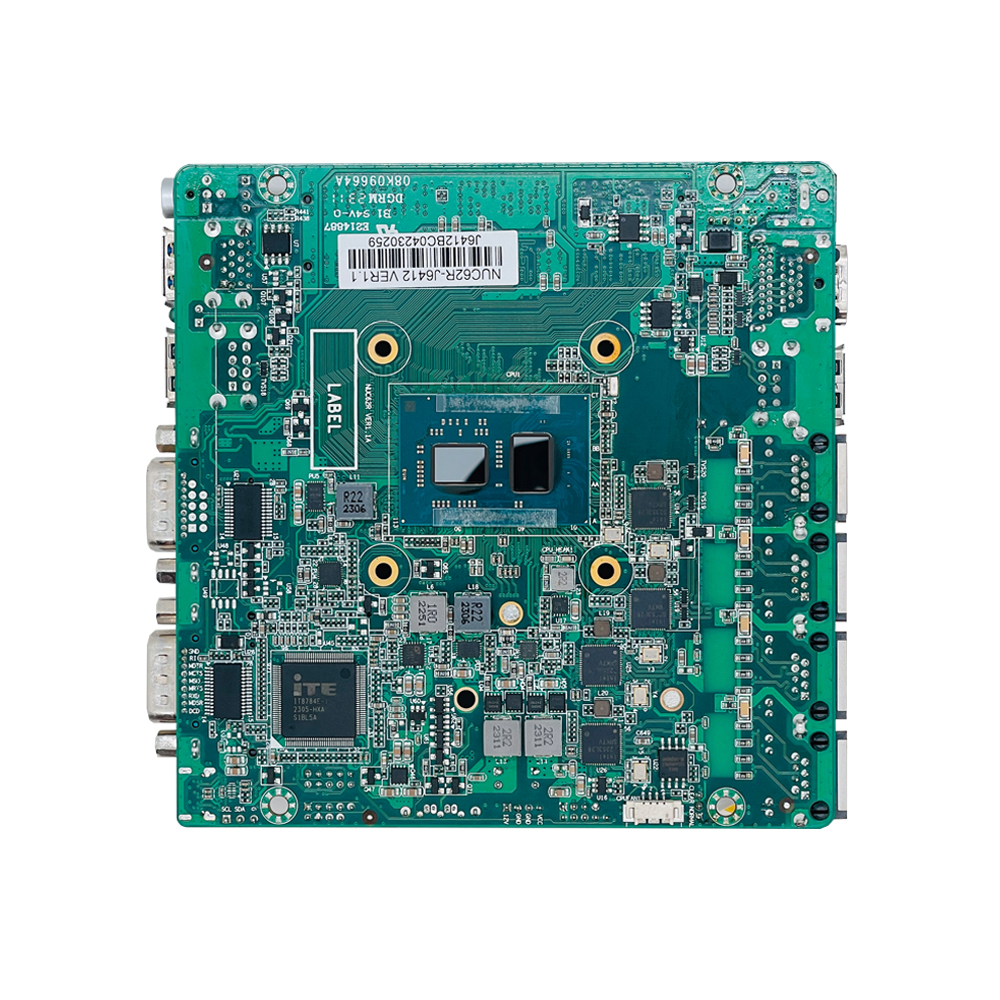

Integrated Intel® Celeron J6412 Processor (4 cores, 2.0GHz base, up to 2.6GHz burst). Based on the high-performance Intel® Elkhart Lake platform, compatible with the full Elkhart Lake series.

Platform

Intel® Elkhart Lake SoC (System-on-Chip) Platform

Memory (DDR4)

2 x SO-DIMM slots, Dual Channel DDR4 3200MHz (1.2V), supports up to 32GB (16GB per slot)

Dual-channel mode significantly boosts memory bandwidth for CPU and integrated graphics.

Storage

1 x M.2 Key-M 2242/2280 slot (supports SATA & PCIe NVMe SSDs)

1 x SATA 3.0 interface (for 2.5″ HDD/SSD)

Operating System

Windows 10, Windows 11, Linux

Graphics

Integrated Intel® UHD Graphics (Elkhart Lake, with enhanced performance in dual-channel memory mode)

🎥 Display & Audio Interfaces

Display Outputs

1 x HDMI

1 x DisplayPort (DP)

(Supports dual independent digital display output)

Audio

High-definition audio is supported via the HDMI and DisplayPort interfaces. (A dedicated 3.5mm audio jack is not typically present on this network-optimized model).

🔌 Connectivity & I/O Ports

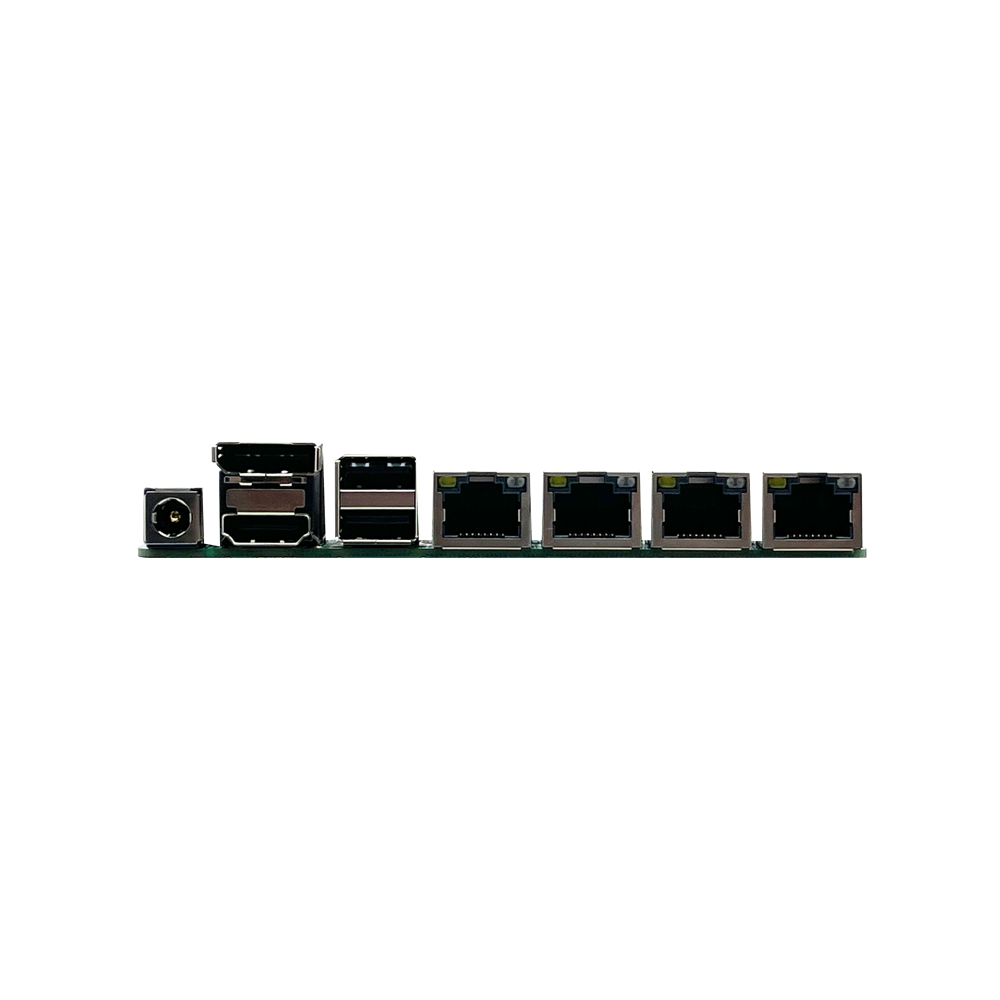

Network (LAN)

4 x Intel® I226 2.5 Gigabit Ethernet (2.5G/1G/100M/10M) RJ45 ports.

Latest-generation Intel controllers ideal for building high-performance firewalls, routers, VPN servers, and network storage solutions.

USB Ports

2 x USB 3.0 ports

6 x USB 2.0 ports (including one via a 2x4pin header)

(Total 8 USB ports)

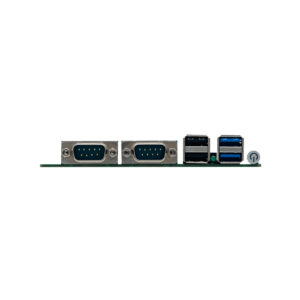

Serial Ports (COM)

2 x RS232 (DB9 connectors).

Optional: One of the ports can be configured to support RS485.

(Provides flexibility for both modern and legacy industrial device connections.)

Expansion Slots

1 x M.2 Key-M slot (for NVMe/SATA SSD – see Storage)

1 x Mini-PCIe slot (supports Wi-Fi or 4G LTE modules)

Security

1 x TPM 2.0 (Trusted Platform Module) header (2×6 pin). Enables hardware-based security features (module not included).

Fan Interface

Board is fanless by design. Includes 1 x 4-pin CPU fan header (reserved for optional active cooling).

GPIO

Supports 4-channel input & 4-channel output GPIO

Watchdog Timer

Hardware reset function (256 levels, 0~255 seconds)

⚡ Power & Electrical Specifications

Input Voltage

DC 12V ±5%

Power Mode

Supports AT and ATX mode switching for flexible power management.

Cooling System

Fanless passive heatsink design for silent, maintenance-free, and dust-resistant operation. Fan header provided for optional active cooling if required.

🌎 Environmental & Physical Specifications

Operating Temperature

-10°C to +60°C (Wide-temperature operation for industrial environments)

Storage Temperature

-20°C to +70°C

Operating Humidity

5% to 95% RH (non-condensing)

Dimensions (Board)

120mm × 120mm (Ultra-compact form factor, 4.7″ x 4.7″)

⚠️ Important Notes

Memory Configuration for Optimal Performance: This board features two DDR4 SO-DIMM slots supporting dual-channel mode. For the best system and graphics performance, install two identical memory modules (same size, speed, and timings). Single-module operation will run in single-channel mode with reduced bandwidth.

Network Controller (Intel I226): Utilizes the latest Intel® I226 2.5GbE controllers. Verify driver availability and compatibility with your chosen operating system, especially for newer Linux kernels or specialized firewall distros.

High-Performance CPU & Power: The Elkhart Lake J6412 offers higher performance than previous generations. When used with dual-channel memory and under full network load, ensure a robust 12V DC power supply is used (recommended ≥ 90W).

Serial Port Configuration: The two COM ports default to RS232. The optional RS485 functionality applies to one of these ports only and must be specified during ordering if required.

M.2 SSD Support: The M.2 Key-M slot supports both 2242 and 2280 length SSDs and is compatible with SATA and PCIe NVMe protocols. For optimal performance in networking/server roles, an NVMe SSD is recommended.

Thermal Management: While fanless, the higher-performance CPU and quad 2.5GbE controllers can generate more heat under sustained load. Ensure the final system enclosure provides excellent passive cooling, particularly when operating near the upper temperature limit or in sealed boxes.
