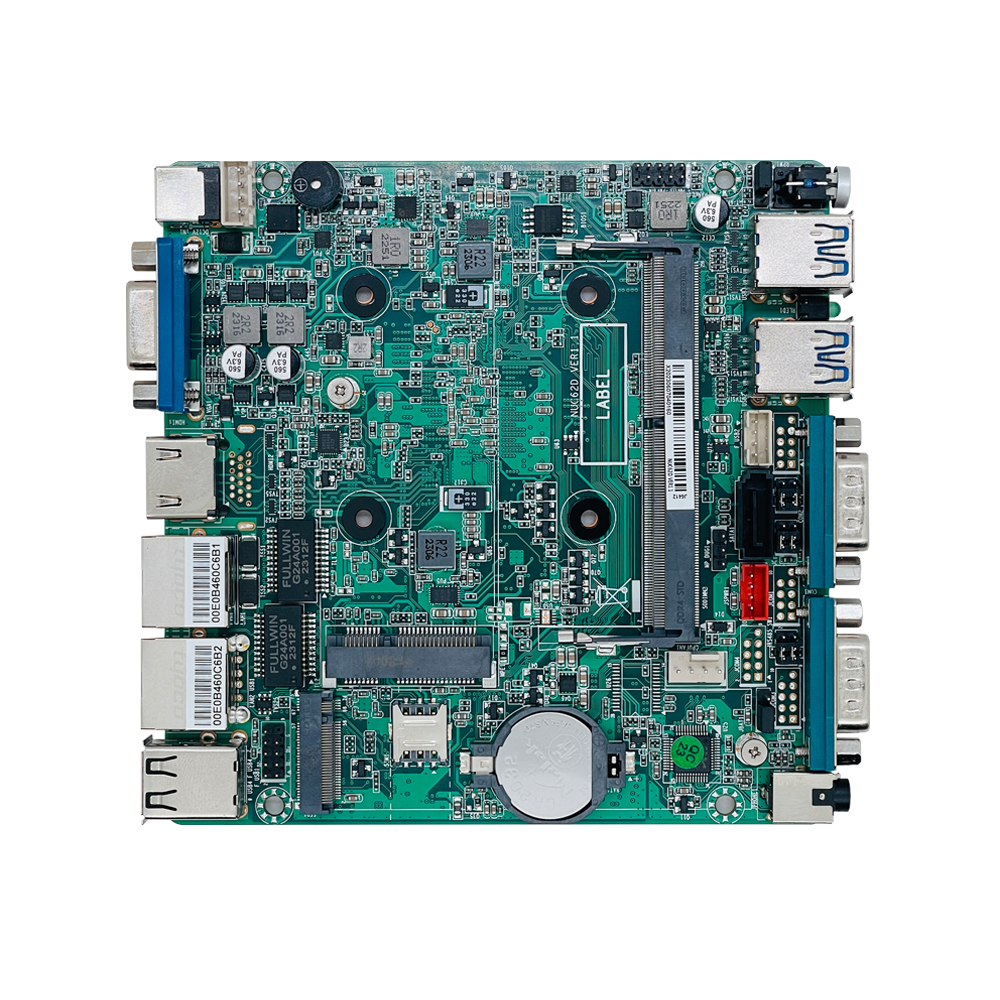

NUC62D-N22 VER1.1 Fanless Industrial Motherboard (Elkhart Lake)

A versatile, high-performance fanless motherboard based on Intel® Elkhart Lake, featuring triple-display capability, expansive I/O with 9 USB ports, and rich serial connectivity, ideal for advanced digital signage, interactive kiosks, and multi-monitor industrial control systems.

📋 Product Overview

The NUC62D-N22 VER1.1 is a feature-rich, fanless embedded motherboard designed for applications demanding superior visual output and extensive device connectivity. Powered by the efficient Intel® Elkhart Lake platform with a Celeron J6412 processor, its standout capability is native support for triple independent displays (VGA + dual HDMI). Coupled with 9 USB ports, flexible serial options (up to 4 RS232), and robust industrial features, this board excels in digital signage video walls, interactive terminals, POS systems, and any environment where multi-screen visualization and peripheral integration are paramount.

🛠️ Key Features

✓Triple Independent Display Output: Supports simultaneous output to VGA, HDMI, and a second HDMI (optional), enabling advanced multi-monitor setups for digital signage and control rooms.

✓High-Performance Elkhart Lake CPU: Integrated Intel® Celeron J6412 quad-core processor, delivering robust performance for graphics and multitasking.

✓Extensive USB Connectivity: Offers a total of 9 USB ports (4x USB 3.0, 5x USB 2.0) for connecting numerous peripherals like scanners, printers, keyboards, and touchscreens.

✓Rich Serial & Industrial I/O: Default 2 x RS232 ports (DB9) with an optional configuration supporting up to 4 RS232 or 2 RS485 ports, plus GPIO and Watchdog timer.

✓Modern Storage & Expansion: Features M.2 Key-M slot for high-speed NVMe/SATA SSDs and Mini-PCIe for Wi-Fi/4G connectivity.

✓Fanless & Rugged Design: Passive cooling ensures silent, reliable 24/7 operation in sealed enclosures, with wide-temperature tolerance (-10°C to +60°C).

✓Complete Audio Solution: Integrated HD audio codec with dedicated 3.5mm combo microphone/line-out jack for multimedia applications.

🔧 Core System Specifications

CPU

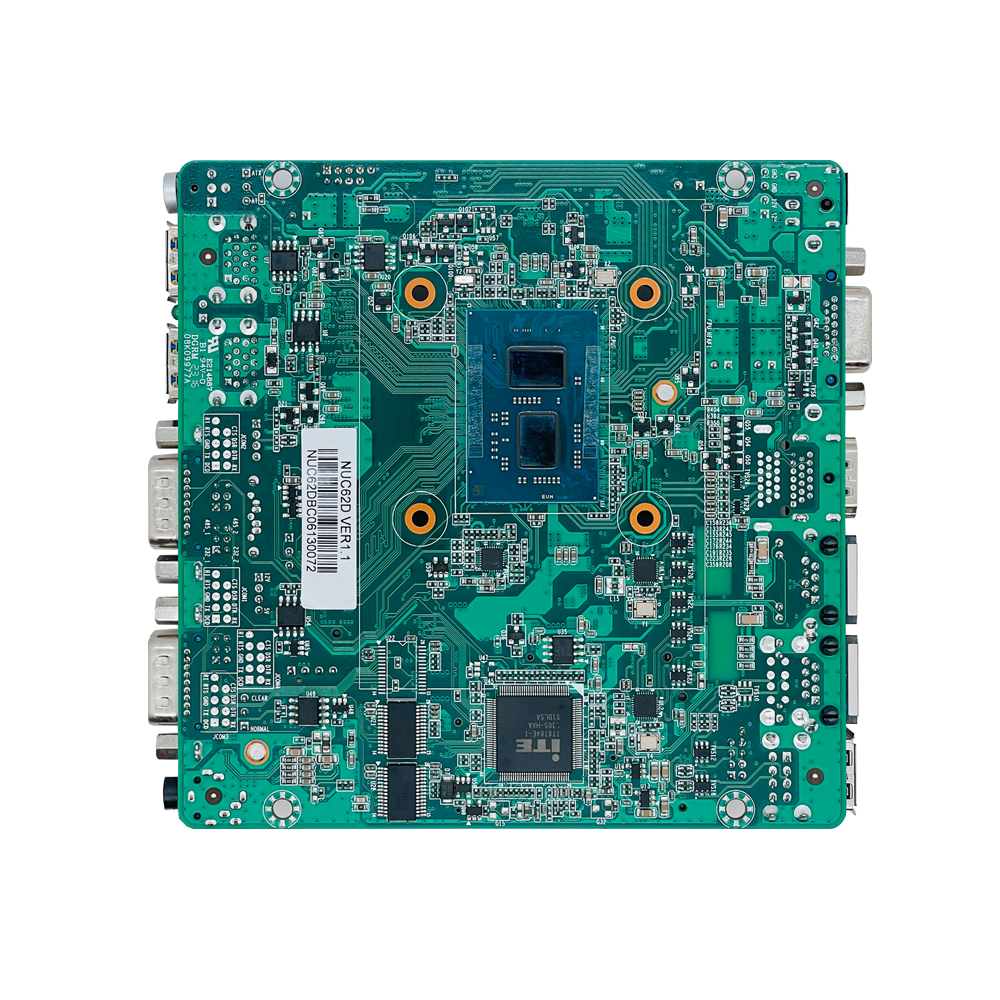

Integrated Intel® Celeron J6412 Processor (4 cores, 2.0GHz base, up to 2.6GHz burst). Based on the high-performance Intel® Elkhart Lake platform, compatible with the full Elkhart Lake series.

Platform

Intel® Elkhart Lake SoC (System-on-Chip) Platform

Memory (DDR4)

1 x SO-DIMM slot, Single Channel DDR4 3200MHz (1.2V), supports up to 16GB

Storage

1 x M.2 Key-M 2242/2280 slot (supports SATA & PCIe NVMe SSDs)

1 x SATA 3.0 interface (for 2.5″ HDD/SSD)

Operating System

Windows 10, Windows 11, Linux

Graphics

Integrated Intel® UHD Graphics (Elkhart Lake). Supports triple independent display output.

🎥 Display & Audio Interfaces

Display Outputs

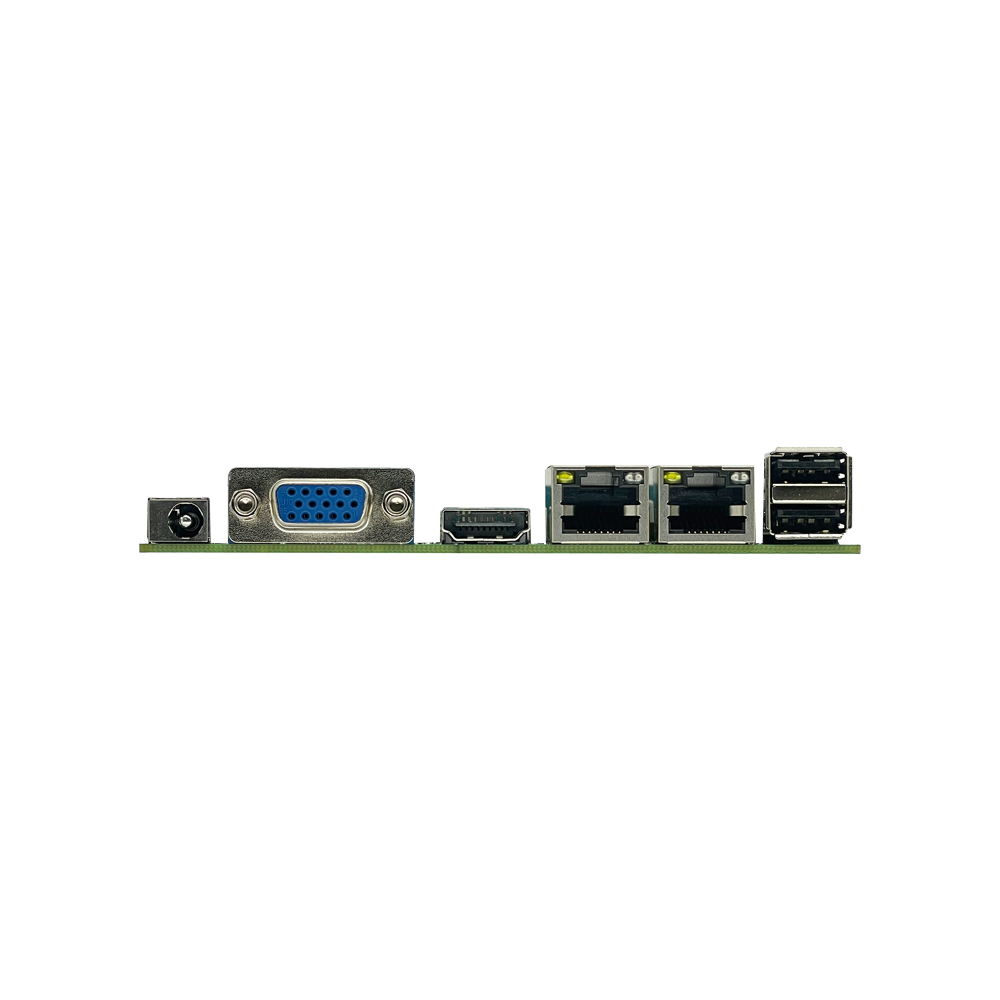

Default Configuration: 1 x VGA, 1 x HDMI.

Optional Enhanced Configuration: 1 x VGA, 2 x HDMI (enabling triple independent display support).

Ideal for video walls, multi-screen dashboards, and digital menu boards.

Audio Codec

Realtek ALC262/662/897 HD Audio

Audio Port

1 x 3.5mm combo audio jack (supports Mic-in/Line-out)

🔌 Connectivity & I/O Ports

USB Ports

4 x USB 3.0 ports

5 x USB 2.0 ports (including one via a 1x4pin header)

(Total 9 USB ports for extensive peripheral connectivity)

Network (LAN)

2 x Realtek Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports.

(Optional single LAN configuration available)

Serial Ports (COM)

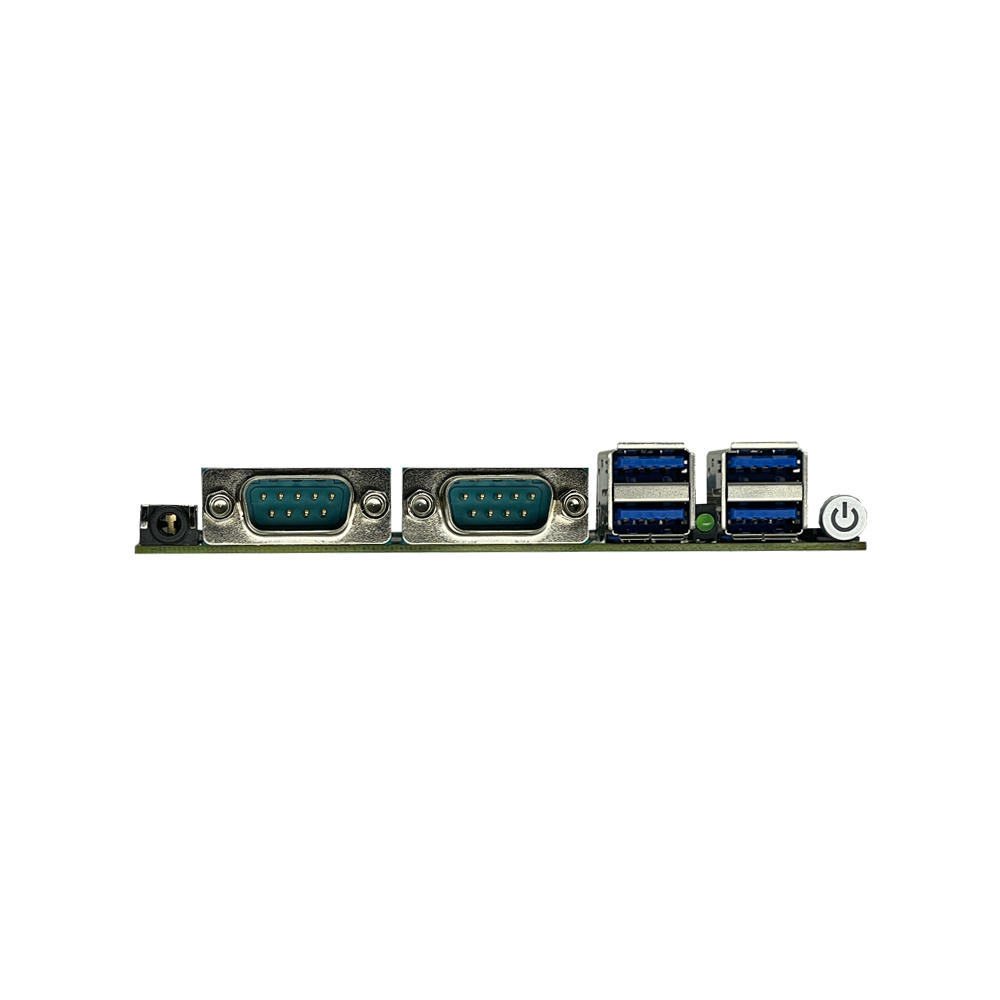

Default: 2 x RS232 (via DB9 connectors).

Optional Expansion: Can be configured to support up to 4 x RS232 ports total.

Optional Protocol: Can also be configured to support 2 x RS485.

(Maximum flexibility for industrial automation, POS systems, and legacy equipment integration.)

Expansion Slots

1 x M.2 Key-M slot (for NVMe/SATA SSD – see Storage)

1 x Mini-PCIe slot (supports Wi-Fi or 4G LTE modules)

Fan Interface

Board is fanless by design. Includes 1 x 4-pin CPU fan header (reserved for optional active cooling).

GPIO

Supports 4-channel input & 4-channel output GPIO

Watchdog Timer

Hardware reset function (256 levels, 0~255 seconds)

⚡ Power & Electrical Specifications

Input Voltage

DC 12V ±5%

Power Mode

Supports AT and ATX mode switching for flexible power management.

Cooling System

Fanless passive heatsink design for silent, maintenance-free, and dust-resistant operation. Fan header provided for optional active cooling if required.

🌎 Environmental & Physical Specifications

Operating Temperature

-10°C to +60°C (Wide-temperature operation for industrial environments)

Storage Temperature

-20°C to +70°C

Operating Humidity

5% to 95% RH (non-condensing)

Dimensions (Board)

120mm × 120mm (Ultra-compact form factor, 4.7″ x 4.7″)

⚠️ Important Notes

Triple Display Configuration (Key Feature):

Standard Board: Provides VGA + one HDMI output (dual display).
Enhanced Option: To enable triple independent display (VGA + two HDMI), you must select the specific board variant that includes the second HDMI port. Confirm this configuration at the time of order.

Serial Port Flexibility: The board offers significant serial port configurability:

Default: 2 x RS232 (DB9).
Optional Port Count: Can be configured for up to 4 x RS232 ports.
Optional Protocol: Can be configured for 2 x RS485 (typically instead of, not in addition to, the 4x RS232 option).

Specify your exact serial port requirements (count and protocol) when ordering.

USB Port Count & Power: With 9 USB ports available, be mindful of total power draw when connecting multiple bus-powered devices (e.g., external drives, scanners). Use a powered USB hub if necessary, and ensure the 12V DC power supply is adequate (recommended ≥ 75W).

M.2 SSD Compatibility: The M.2 Key-M slot supports both 2242 and 2280 length SSDs in SATA or PCIe NVMe formats. Verify your SSD’s physical and interface compatibility.

Graphics Driver & OS: For optimal triple-display functionality and stability, ensure you install the latest Intel® graphics drivers provided for the Elkhart Lake platform on your chosen operating system.

Thermal Considerations for Multi-Screen Use: Driving three displays simultaneously will increase GPU load and heat generation. While fanless, ensure the final system enclosure has adequate passive cooling, especially in ambient temperatures above 40°C.
