Description

NUC32D-N22 VER1.1A Fanless Industrial Motherboard (Alder Lake-N)

A versatile, fanless embedded motherboard based on the efficient Intel® Alder Lake-N platform, offering flexible display options, rich I/O including USB Type-C, and comprehensive industrial connectivity for diverse automation, digital signage, and control applications.

📋 Product Overview

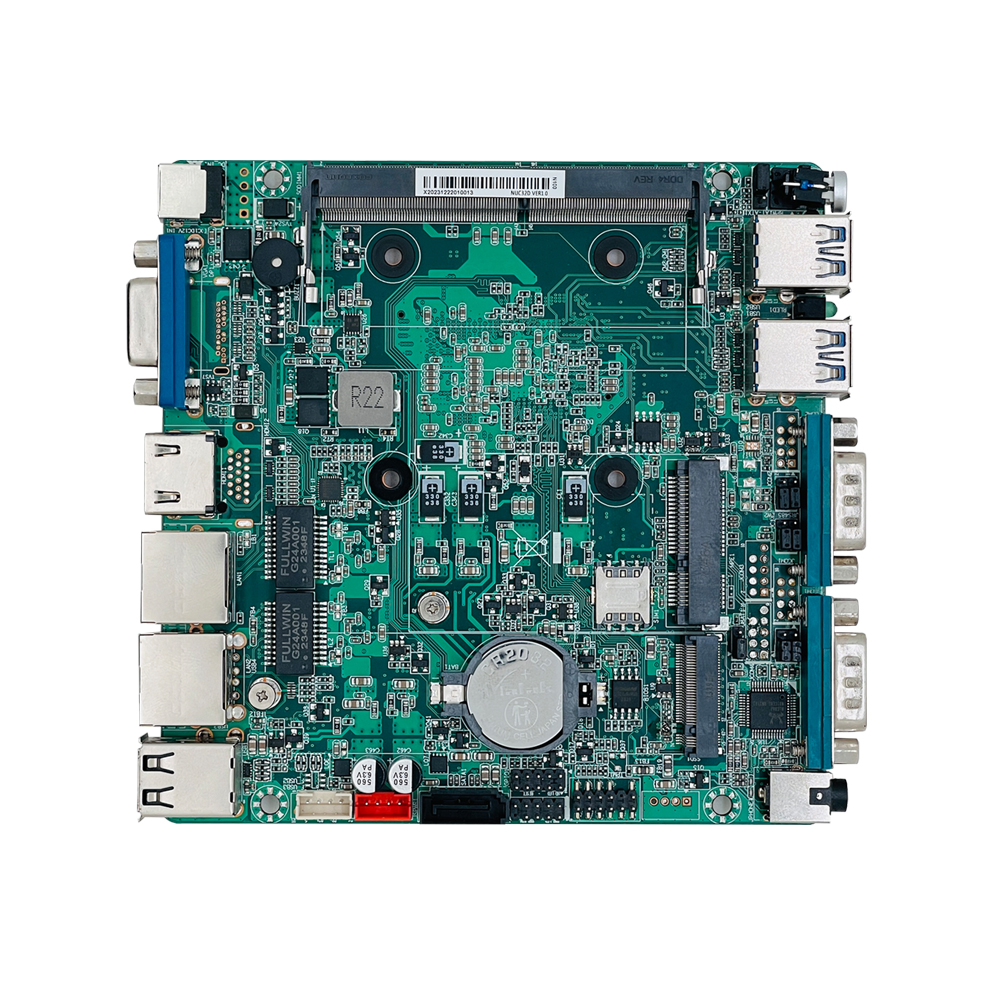

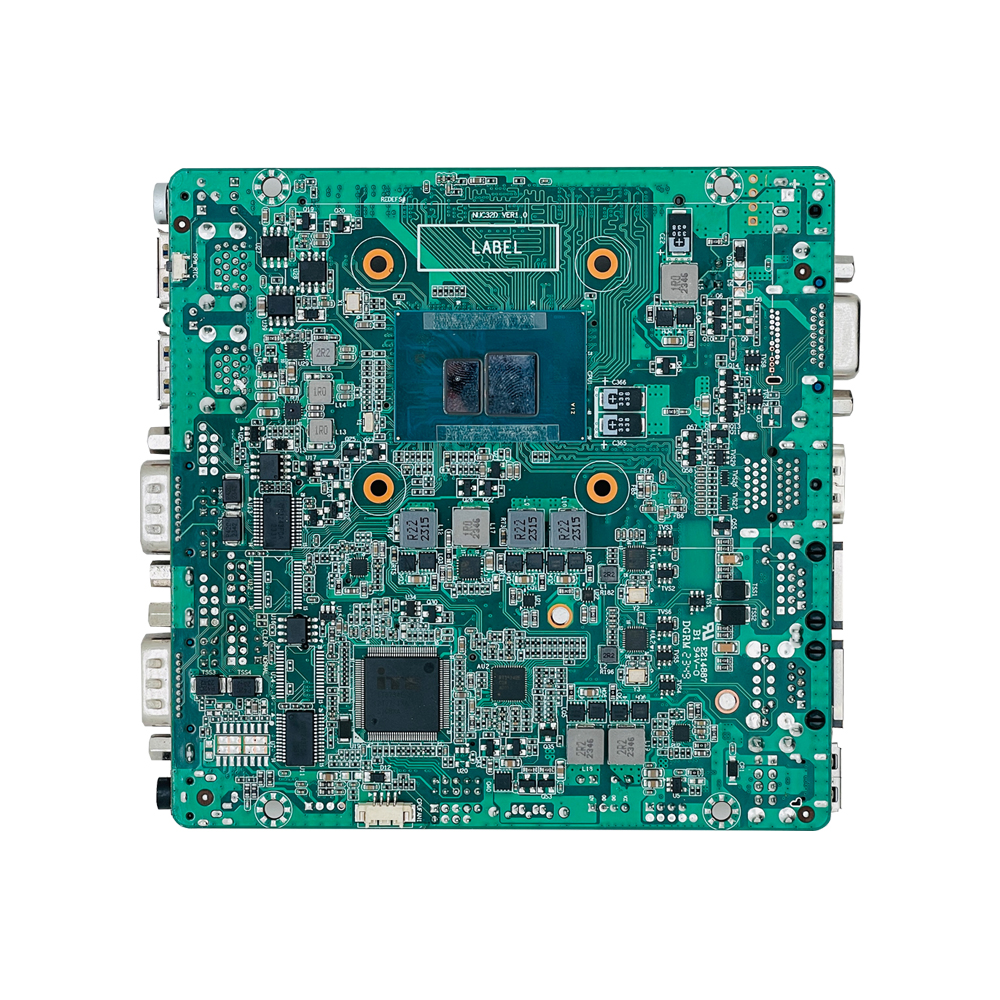

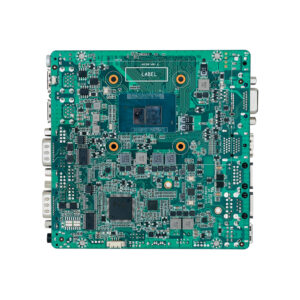

The NUC32D-N22 VER1.1A is a highly adaptable and robust fanless motherboard leveraging the power-efficient Intel® Alder Lake-N architecture. Featuring a soldered Intel® Celeron N100 processor, it stands out with its flexible display configurations (including optional dual HDMI), modern I/O such as USB Type-C, and extensive serial connectivity options. Designed for reliability in challenging environments, it is an ideal all-rounder for industrial automation, interactive kiosks, and general-purpose embedded computing where a balance of performance, connectivity, and ruggedness is required.

🛠️ Key Features

✓Modern & Efficient CPU: Integrated Intel® Celeron N100 processor (Alder Lake-N), delivering excellent performance-per-watt for fanless operation.

✓Flexible Display Options: Supports VGA + HDMI, or optionally dual HDMI outputs, providing versatile solutions for digital signage and multi-screen setups.

✓Rich & Modern I/O: Includes 8 USB ports (with a USB Type-C), dual Gigabit LAN, comprehensive audio interfaces, and an M.2 Key-M slot for high-speed storage.

✓Extensive Serial Connectivity: Features two serial ports defaulting to RS232, with an optional configuration supporting up to four RS232 ports for maximum industrial device integration.

✓Enhanced Security & Audio: Onboard TPM 2.0 header for hardware security, plus dedicated audio codec with line-out/mic-in and optional amplifier output.

✓Fanless & Rugged: Passive cooling ensures silent, reliable operation in sealed enclosures, with wide-temperature support from -10°C to +60°C.

✓Compact Form Factor: All features integrated into a space-saving 120mm x 120mm board.

🔧 Core System Specifications

CPU

Integrated Intel® Celeron N100 Processor (4 cores, 0.8GHz base, up to 3.4GHz burst). Based on the efficient Intel® Alder Lake-N microarchitecture, compatible with the full Alder Lake-N series.

Platform

Intel® Alder Lake-N SoC (System-on-Chip) Platform

Memory (DDR4)

1 x SO-DIMM slot, Single Channel DDR4 3200MHz (1.2V), supports up to 16GB

Storage

1 x M.2 Key-M 2280 slot (supports SATA & PCIe NVMe SSDs, auto-switching)

1 x SATA 3.0 interface (for 2.5″ HDD/SSD)

Operating System

Windows 10, Windows 11, Linux

Graphics

Integrated Intel® UHD Graphics (Alder Lake-N, 24 Execution Units)

🎥 Display & Audio Interfaces

Display Outputs

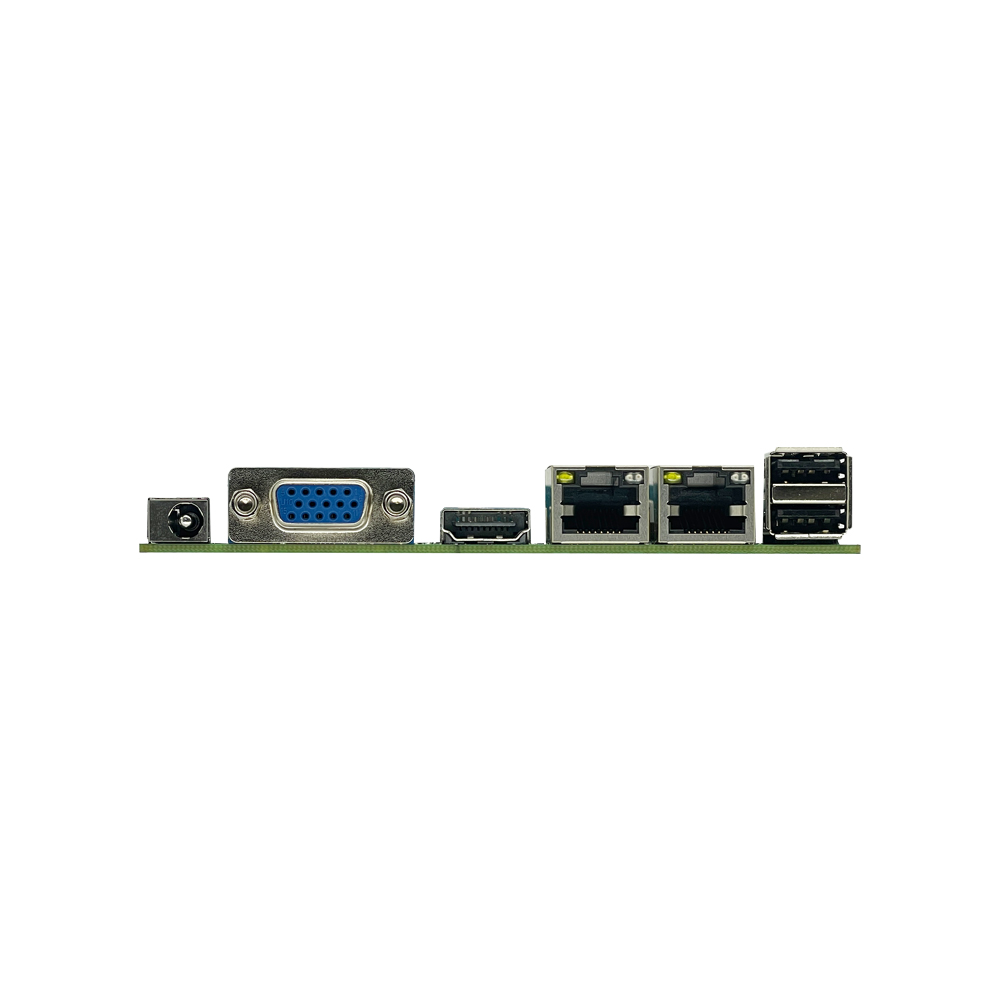

Standard Configuration: 1 x VGA, 1 x HDMI.

Optional Configuration: Dual HDMI (replaces VGA+HDMI setup).

(Supports dual independent display output. Confirm your required display variant when ordering.)

Audio Codec

Realtek ALC262/662/897 HD Audio

Audio Ports / Features

1 x 3.5mm combo audio jack (supports Mic-in/Line-out)

1 x 4-pin header for external amplifier (optional component)

🔌 Connectivity & I/O Ports

USB Ports

4 x USB 3.0 ports

3 x USB 2.0 ports

1 x USB Type-C port

(Total 8 USB ports, including modern Type-C)

Network (LAN)

2 x Realtek Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports.

Serial Ports (COM)

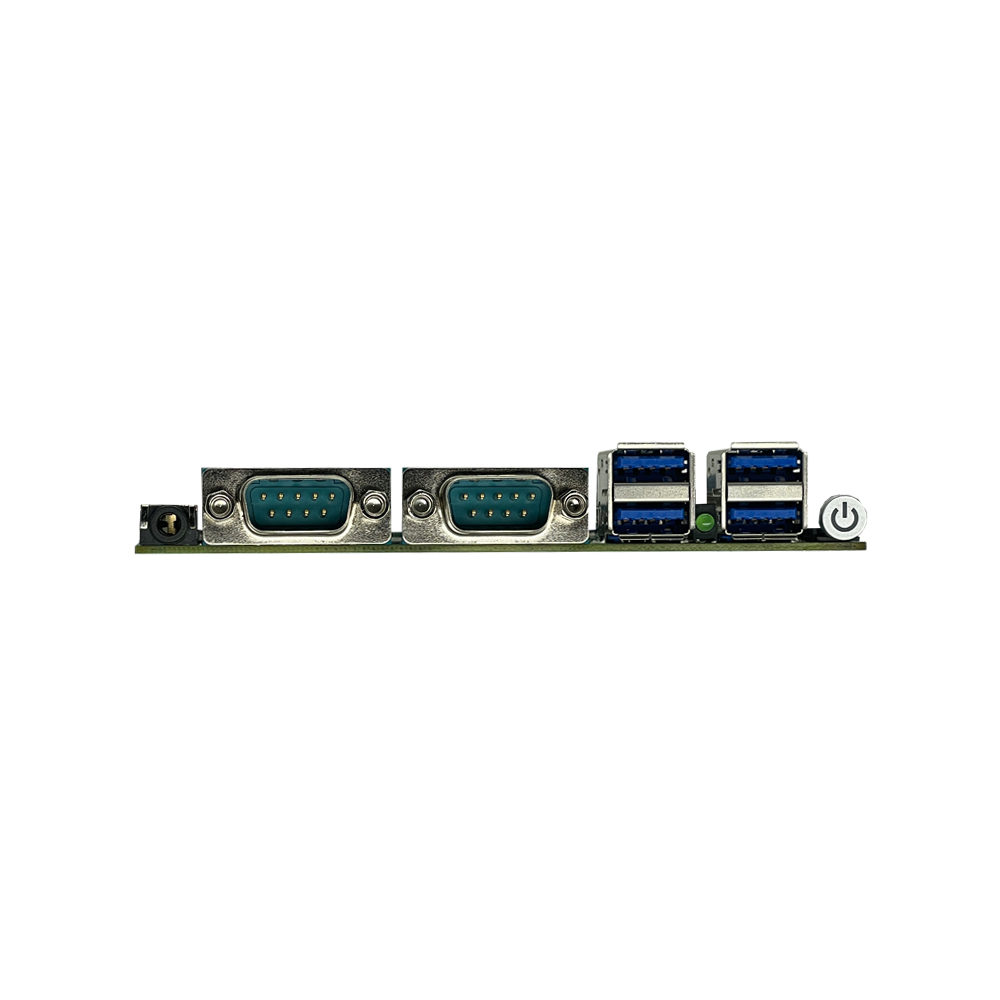

Default: 2 x RS232 (DB9 connectors).

Optional: Can be configured to support up to 4 x RS232 ports.

(Ideal for connecting multiple industrial devices like PLCs, scanners, or legacy equipment.)

Expansion Slots

1 x M.2 Key-M 2280 slot (for NVMe/SATA SSD – see Storage)

1 x Mini-PCIe slot (supports Wi-Fi or 4G LTE modules)

Security

1 x TPM 2.0 (Trusted Platform Module) header (2×7 pin). Enables hardware-based security features (module not included).

Fan Interface

Board is fanless by design. Includes 1 x 4-pin CPU fan header (reserved for optional active cooling).

GPIO

Supports 4-channel input & 4-channel output GPIO

Watchdog Timer

Hardware reset function (256 levels, 0~255 seconds)

⚡ Power & Electrical Specifications

Input Voltage

DC 12V ±5%

Power Mode

Supports AT and ATX mode switching for flexible power management.

Cooling System

Fanless passive heatsink design for silent, maintenance-free, and dust-resistant operation. Fan header provided for optional active cooling if required.

🌎 Environmental & Physical Specifications

Operating Temperature

-10°C to +60°C (Wide-temperature operation for industrial environments)

Storage Temperature

-20°C to +70°C

Operating Humidity

5% to 95% RH (non-condensing)

Dimensions (Board)

120mm × 120mm (Ultra-compact form factor, 4.7″ x 4.7″)

⚠️ Important Notes

Display Configuration (Critical Selection): This motherboard is offered in key display variants:

Standard: VGA + HDMI (most common for general use).
Optional: Dual HDMI (ideal for digital signage or dual digital monitors).

You must specify your required display configuration when ordering.

Serial Port Configuration: The board defaults to 2 x RS232 ports. If your application requires additional serial ports, an optional configuration supporting up to 4 x RS232 is available. This must be specified at the time of order.

USB Type-C Functionality: The included USB Type-C port’s specific capabilities (e.g., power delivery, Alternate Mode for video) should be verified based on the board’s design. It primarily functions as a high-speed USB data port.

TPM 2.0 Pinout & Module: Note the TPM header uses a 2×7 pin configuration. Ensure a compatible TPM 2.0 module is purchased separately for hardware security features. The module is not included.

Optional Audio Amplifier: The amplifier header is for an optional external component. If audio amplification is not required, this header can be left unpopulated.

M.2 SSD Boot Considerations: Booting from an NVMe SSD in the M.2 slot requires UEFI BIOS support. Ensure your operating system installation media and process are configured for UEFI mode.
