ITX60D-L26 VER1.2A Industrial X86 ITX Motherboard
A fanless, energy-efficient Mini-ITX motherboard based on Intel® Elkhart Lake platform. Featuring a fully passive thermal design, flexible display options (including dual eDP), dual wireless expansion, M.2 storage, and comprehensive I/O, ideal for silent, reliable embedded systems in harsh environments.
📋 Product Overview
The ITX60D-L26 VER1.2A is engineered for silent, maintenance-free operation in demanding conditions. Powered by the efficient Intel® Elkhart Lake processor family, its fanless design eliminates moving parts for maximum reliability and dust resistance. The board offers versatile display configurations, including an optional dual eDP setup, along with dual wireless expansion slots (Mini-PCIe and M.2 Key-E) and modern M.2 storage. With wide-temperature support, AT/ATX power mode switching, and rich industrial I/O, it’s perfect for digital signage, interactive kiosks, and outdoor embedded applications.
🛠️ Key Features
✓True Fanless Operation: Completely passive cooling design ensures silent, zero-maintenance, and dust-proof operation, enabling fully sealed enclosures.
✓Modern & Efficient Platform: Intel® Elkhart Lake Celeron J6412 quad-core processor (and compatible CPUs) for an excellent balance of performance and power efficiency.
✓Flexible Display Options: Standard VGA, HDMI, and LVDS outputs, with an optional configuration for dual eDP interfaces, ideal for modern panel integration.
✓Dual Wireless Expansion: Separate Mini-PCIe slot for Wi-Fi/4G and M.2 Key-E slot for Wi-Fi/Bluetooth, allowing simultaneous wireless connectivity options.
✓High-Speed Storage: Features an M.2 Key-M slot for NVMe or SATA SSDs (2280) plus a standard SATA 3.0 port for additional storage.
✓Flexible Power Management: Supports AT/ATX mode switching for compatibility with different system power controls, powered by 12V DC.
✓Comprehensive Industrial I/O: 6 COM ports (RS485 configurable), 9 USB ports, dual Gigabit LAN, GPIO, and watchdog timer.
🔧 Core System Specifications
CPU
Integrated Intel® Celeron J6412 Quad-Core Processor @ 2.0GHz (Elkhart Lake). Compatible with Intel® Elkhart Lake series CPUs (BGA soldered).
Memory (DDR4)
1 x DDR4 SO-DIMM slot, 3200 MHz, up to 16GB (Single Channel, 1.2V)
Storage
1 x M.2 Key-M slot (2280, supports both NVMe PCIe and SATA SSDs)
1 x SATA 3.0 interface (for 2.5″ HDD/SSD)
1 x SATA 3.0 interface (for 2.5″ HDD/SSD)
Operating System
Windows 10, Windows 11, Linux
Graphics
Integrated Intel® UHD Graphics (Gen 11, Elkhart Lake)
🎥 Display & Audio Interfaces
Display Outputs
1 x VGA
1 x HDMI
1 x LVDS interface (Optional Configuration: Can be set as a second eDP port, enabling dual eDP support)
1 x HDMI
1 x LVDS interface (Optional Configuration: Can be set as a second eDP port, enabling dual eDP support)
Audio Codec
Realtek ALC262/662/897 HD Audio
Audio Ports/Headers
1 x Front Panel Audio Header (2×5 pin, supports MIC/Line-out)
1 x Line Out (Green 3.5mm jack)
1 x Microphone In (Pink 3.5mm jack)
1 x Amplifier Header (1×4 pin)
1 x Line Out (Green 3.5mm jack)
1 x Microphone In (Pink 3.5mm jack)
1 x Amplifier Header (1×4 pin)
🔌 Connectivity & I/O Ports
USB Ports
7 x USB 2.0 ports
2 x USB 3.0 ports (Total: 9 USB ports)
2 x USB 3.0 ports (Total: 9 USB ports)
Network (LAN)
2 x Realtek Gigabit Ethernet (RJ45, 10/100/1000 Mbps)
(Optional single LAN configuration available)
(Optional single LAN configuration available)
Serial Ports (COM)
6 x RS232 Serial Ports
(Default supports 2 ports as RS485, optionally configurable for up to 4 ports as RS485)
(Default supports 2 ports as RS485, optionally configurable for up to 4 ports as RS485)
Expansion Slots
1 x Mini-PCIe slot (for Wi-Fi / 4G modules)
1 x M.2 Key-E slot (for Wi-Fi / Bluetooth modules)
1 x M.2 Key-E slot (for Wi-Fi / Bluetooth modules)
Legacy I/O
1 x LPT (Parallel Port)
Fan Interface
1 x 4-pin CPU fan header (reserved for optional active cooling; board is designed for fanless operation with integrated heatsink)
GPIO
Supports 4-channel input & 4-channel output GPIO
Watchdog Timer
Hardware reset function (256 levels, 0~255 seconds)
⚡ Power & Physical Specifications
Input Voltage
DC 12V ±5%
Power Mode
Supports AT/ATX mode switching (configurable via jumper or BIOS)
Cooling System
Fully passive fanless design with integrated heatsink (ensures silent, reliable, and maintenance-free operation)
Form Factor
Mini-ITX: 170mm × 170mm
🌎 Environmental & Reliability
Operating Temperature
-10°C to +60°C (Wide-temperature operation)
Storage Temperature
-20°C to +70°C
Operating Humidity
5% to 95% RH (non-condensing)
⚠️ Important Notes
Fanless Design & Thermal Management: This board is designed for completely fanless operation using a passive heatsink. For reliable operation across the full temperature range, the final system enclosure must provide adequate thermal dissipation. Do not obstruct the heatsink. The fan header is reserved for optional active cooling in non-standard configurations.
CPU Configuration: Features a soldered Intel® Elkhart Lake processor (Celeron J6412 or compatible). The CPU is not user-upgradeable. This modern platform offers excellent performance-per-watt for fanless designs.
Dual Wireless Expansion: This board uniquely provides two dedicated wireless slots: a Mini-PCIe for Wi-Fi/4G and an M.2 Key-E for Wi-Fi/Bluetooth. They can be used simultaneously for comprehensive wireless connectivity.
Display Configuration Options: The LVDS port can be optionally configured as a second eDP interface, enabling dual eDP output for modern display panels. Specify your required display configuration (Standard VGA/HDMI/LVDS or VGA/HDMI/dual eDP) when ordering.
M.2 Key-M Slot Compatibility: The M.2 Key-M slot supports both NVMe (PCIe) and SATA protocol M.2 SSDs (2280 length). Ensure your SSD matches the desired protocol.
Power & Mode Configuration: Use a stable DC 12V ±5% power supply. The AT/ATX mode must be correctly set via the motherboard jumper or BIOS for proper system power control.
RS485 & Operating System: RS485 support is configurable (default 2 ports, optional up to 4 ports). The board is compatible with Windows 10/11 and modern Linux distributions.
📐 Mechanical Dimensions
Standard Mini-ITX Form Factor (Unit: mm)
Dimensions diagram placeholder for ITX60D-L26 VER1.2A (170mm x 170mm). Please insert your product dimension image here.
🖼 Product Images

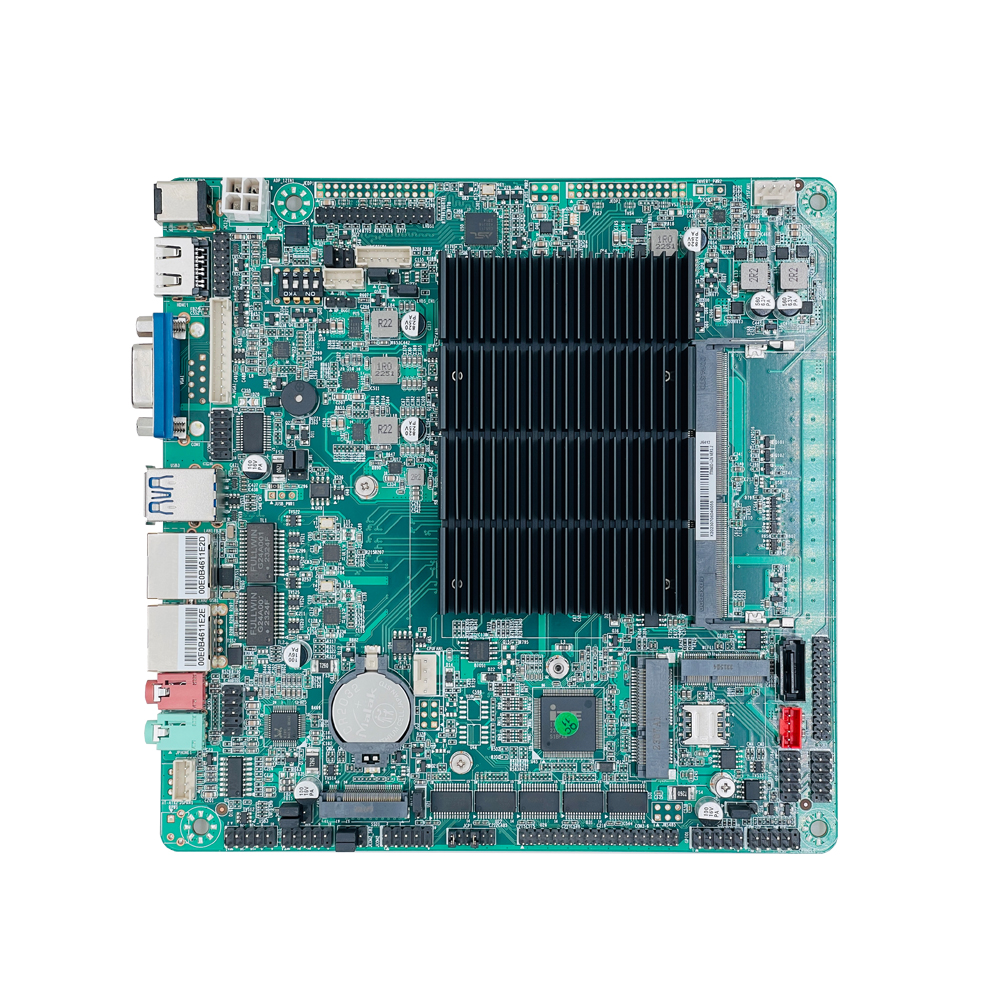

ITX60D-L26 VER1.2A

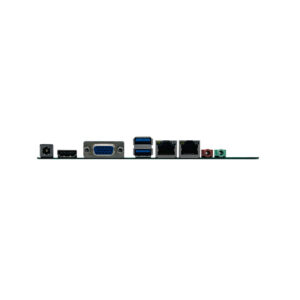

Expansion Slots Detail
