Description
ITX110U-L26 VER1.1 Industrial X86 ITX Motherboard
A cutting-edge, high-performance Mini-ITX platform powered by Intel® 11th Gen Tiger Lake-U processors. Engineered for maximum capability with quad-display support, 2.5GbE networking, up to 64GB RAM, advanced storage options, and industrial-grade features for next-generation edge computing and automation.
📋 Product Overview
The ITX110U-L26 VER1.1 represents the pinnacle of industrial compact computing. Leveraging the powerful Intel® Tiger Lake-U architecture with Intel® Iris® Xe graphics, it delivers exceptional CPU and GPU performance in a low-power envelope. This board is packed with premium features: dual 2.5GbE networking, quad independent display outputs (including async/sync eDP), high-speed NVMe storage, flexible expansion, and robust industrial I/O. Its intelligent cooling, wide power input, and AT/ATX mode switching make it the ideal solution for demanding applications like advanced HMIs, machine vision, and AI at the edge.
🛠️ Key Features
✓Next-Gen Processing Power: Intel® 11th Gen Tiger Lake-U processors with Intel® Iris® Xe graphics for superior CPU and integrated GPU performance.
✓Quad Independent Display Support: Drive up to four simultaneous displays via VGA, HDMI 2.0, LVDS, and eDP (supports asynchronous or synchronous operation).
✓High-Speed Networking: Dual Intel® I225/I226 2.5 Gigabit Ethernet ports for high-bandwidth data transfer and network redundancy.
✓Massive Memory & Fast Storage: Dual-channel DDR4-3200 support up to 64GB, plus M.2 Key-M for NVMe SSDs and SATA/mSATA for additional storage.
✓Advanced Expansion & Security: Dedicated M.2 Key-E (Wi-Fi/BT), configurable mSATA/Mini-PCIe slot, and support for external TPM 2.0 module.
✓Flexible Power & Robust Cooling: Wide-range 12V-19V DC input with AT/ATX mode switching, and a dual-ball bearing smart fan for reliable thermal management.
✓Comprehensive Industrial Suite: 6 COM ports (RS485 configurable), 9 USB ports, GPIO, dual fan headers, and wide-temperature operation.
🔧 Core System Specifications
CPU
Intel® 11th Gen Tiger Lake-U series Celeron, Pentium, Core™ i3/i5/i7 processors (BGA soldered) with Intel® Iris® Xe Graphics (Core i5/i7)
Memory (DDR4)
2 x DDR4 SO-DIMM slots, Dual Channel, 3200 MHz, up to 64GB total (1.2V)
Storage
1 x M.2 Key-M slot (2242/2280, PCIe x4 NVMe SSD)
1 x SATA 3.0 interface
1 x mSATA slot (shared function with Mini-PCIe; default mSATA/4G, optional Wi-Fi/4G)
1 x SATA 3.0 interface
1 x mSATA slot (shared function with Mini-PCIe; default mSATA/4G, optional Wi-Fi/4G)
Operating System
Windows 10, Windows 11, Linux
Graphics
Integrated Intel® Iris® Xe Graphics (Core i5/i7) or Intel® UHD Graphics (Core i3/Pentium/Celeron)
🎥 Display & Audio Interfaces
Display Outputs
Quad Independent Display Support:
1 x VGA
1 x HDMI 2.0
1 x LVDS
1 x eDP (supports asynchronous or synchronous operation with other displays)
1 x VGA
1 x HDMI 2.0
1 x LVDS
1 x eDP (supports asynchronous or synchronous operation with other displays)
Audio Codec
Realtek ALC262/662/897 HD Audio
Audio Ports/Headers
1 x Front Panel Audio Header (2×5 pin, supports MIC/Line-out)
1 x Line Out (Green 3.5mm jack)
1 x Microphone In (Pink 3.5mm jack)
1 x Amplifier Header (1×4 pin)
1 x Line Out (Green 3.5mm jack)
1 x Microphone In (Pink 3.5mm jack)
1 x Amplifier Header (1×4 pin)
🔌 Connectivity & I/O Ports
USB Ports
5 x USB 2.0 ports
4 x USB 3.0 ports (Total: 9 USB ports)
4 x USB 3.0 ports (Total: 9 USB ports)
Network (LAN)
2 x Intel® I225/I226 2.5 Gigabit Ethernet (2.5G/1G/100M/10M)
(Optional single LAN configuration may be available)
(Optional single LAN configuration may be available)
Serial Ports (COM)
6 x RS232 Serial Ports
(Default supports 2 ports as RS485, optionally configurable for up to 4 ports as RS485)
(Default supports 2 ports as RS485, optionally configurable for up to 4 ports as RS485)
Expansion Slots
1 x M.2 Key-E slot (for Wi-Fi/Bluetooth modules)
1 x mSATA / Mini-PCIe combo slot (default configured for mSATA or 4G module; can be optionally configured for Wi-Fi/4G)
1 x mSATA / Mini-PCIe combo slot (default configured for mSATA or 4G module; can be optionally configured for Wi-Fi/4G)
Security
Supports external TPM 2.0 module (via 2×6 pin header)
Fan Headers
1 x 4-pin CPU fan header (PWM)
1 x 4-pin System fan header (PWM)
1 x 4-pin System fan header (PWM)
GPIO
Supports 4-channel input & 4-channel output GPIO
Watchdog Timer
Hardware reset function (256 levels, 0~255 seconds)
⚡ Power & Physical Specifications
Input Voltage
DC 12V to 19V ±5% (wide input range)
Power Mode
Supports AT/ATX mode switching (configurable via jumper or BIOS)
Cooling System
Integrated dual-ball bearing smart fan for CPU cooling (ensures long-term reliability)
+ Additional system fan header for enhanced chassis airflow.
+ Additional system fan header for enhanced chassis airflow.
Form Factor
Mini-ITX: 170mm × 170mm
🌎 Environmental & Reliability
Operating Temperature
-10°C to +60°C (Wide-temperature operation)
Storage Temperature
-20°C to +70°C
Operating Humidity
5% to 95% RH (non-condensing)
⚠️ Important Notes
CPU & Graphics: Features a soldered 11th Gen Intel Tiger Lake-U CPU with integrated Intel® Iris® Xe Graphics (on Core i5/i7 models). This provides significant GPU performance uplift for graphics-intensive applications. CPU model is factory-set.
Quad Display Capability: The board natively supports driving four independent displays simultaneously (VGA, HDMI, LVDS, eDP). The eDP port can operate in asynchronous or synchronous mode relative to other outputs, offering flexibility for video wall or multi-monitor setups.
High-Speed Networking: Equipped with premium Intel 2.5 Gigabit Ethernet controllers (I225/I226) for future-proof, high-bandwidth network connectivity.
Storage & Expansion Slot Configuration:
- M.2 Key-M: For NVMe PCIe SSDs only (highly recommended for optimal performance).
- mSATA / Mini-PCIe Combo Slot: This is a shared slot. The default configuration supports mSATA SSD or a 4G module. It can be optionally configured to support a Wi-Fi/4G module instead. Specify the required function when ordering.
- M.2 Key-E: Dedicated slot for Wi-Fi/Bluetooth cards.
Power, Mode & Cooling: Use a stable 12V-19V DC power supply. Correctly set the AT/ATX mode jumper/BIOS setting. The dual-fan design (CPU + system header) is crucial for managing the thermal output of high-performance Tiger Lake-U CPUs, especially under load.
Operating System & Security: Optimized for Windows 10/11 and modern Linux distributions. The TPM 2.0 header enables hardware-based security features for secure boot and data encryption.
📐 Mechanical Dimensions
Standard Mini-ITX Form Factor (Unit: mm)
Dimensions diagram placeholder for ITX110U-L26 VER1.1 (170mm x 170mm). Please insert your product dimension image here.
🖼 Product Images

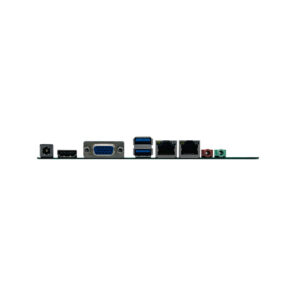

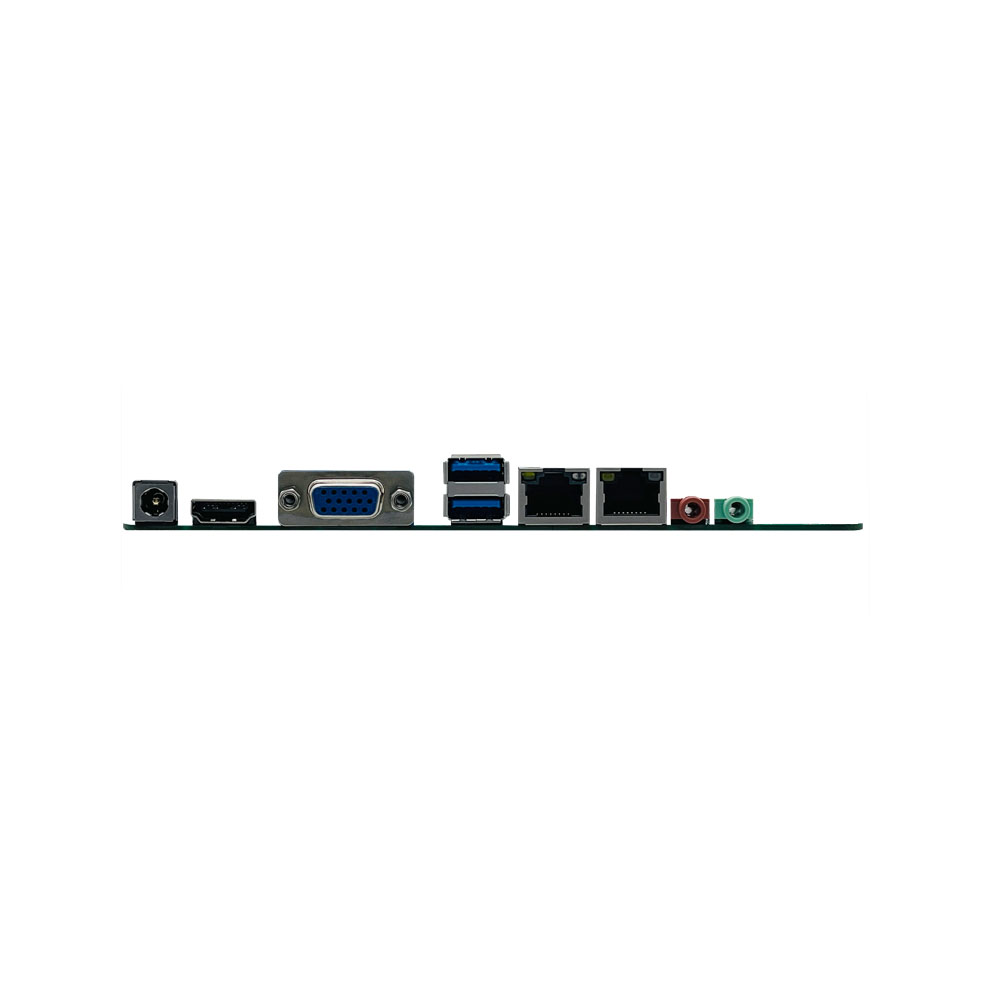

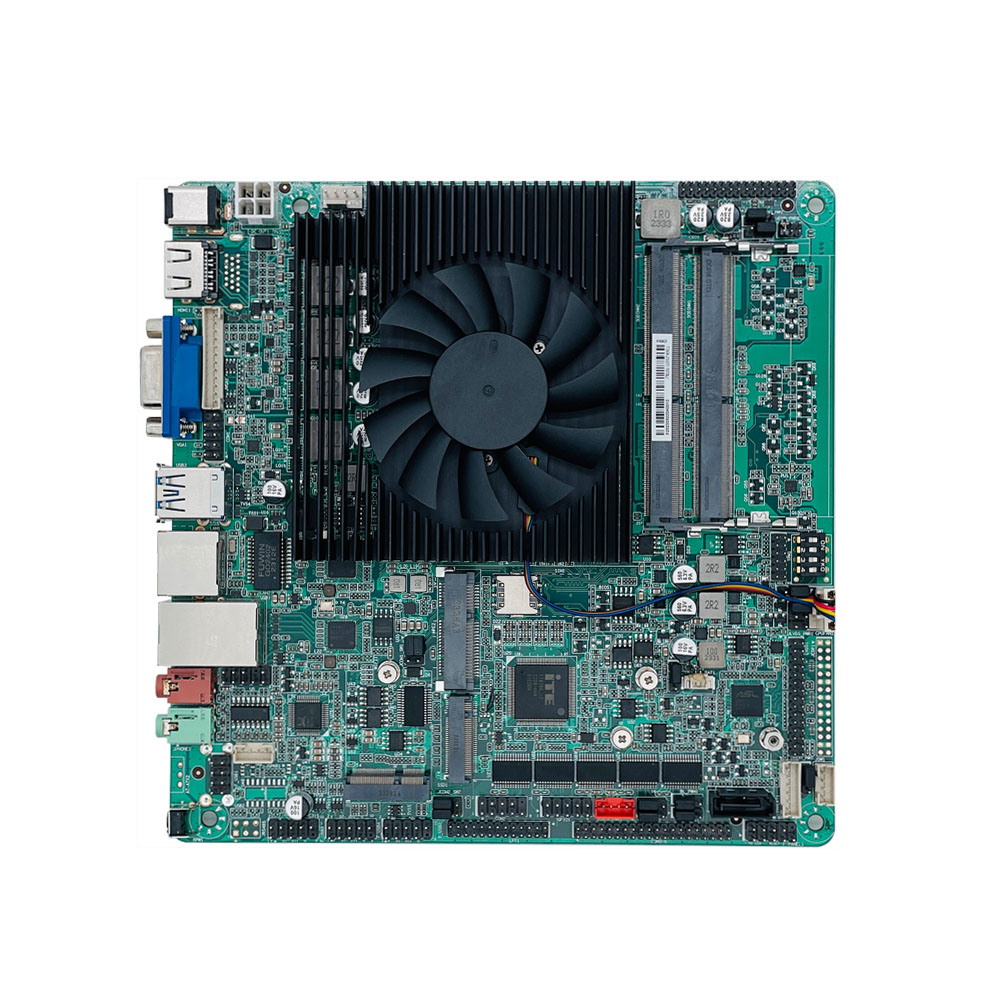

ITX110U-L26 VER1.1
M.2 & Expansion Slots Detail
