EPIC60P-L26 VER1.1 Compact Embedded Motherboard
A versatile, fanless-ready embedded motherboard powered by Intel® Elkhart Lake, featuring rich I/O, triple display, and wide-temperature operation for demanding industrial and IoT applications.
📋 Product Overview
The EPIC60P-L26 VER1.1 is a highly integrated, compact embedded motherboard based on the efficient Intel® Elkhart Lake platform. Designed for rugged environments, it combines a soldered Intel® Celeron processor with extensive connectivity options, including multiple serial ports, dual LAN, and flexible expansion slots. Its fanless design capability and wide operating temperature range make it ideal for space-constrained and harsh-condition applications such as industrial automation, digital signage, and edge computing.
🛠️ Key Features
✓Integrated CPU: Features a soldered Intel® Celeron J6412 Quad-Core processor @ 2.0 GHz (Elkhart Lake family compatible).
✓Fanless Operation: Supports passive cooling, enabling fully enclosed systems for dust and moisture protection.
✓Triple Display Flexibility: Supports VGA, HDMI, and LVDS or eDP for synchronous/asynchronous multi-display setups.
✓Rich Industrial I/O: Equipped with 6 x RS232 serial ports (configurable to support up to 4 x RS485).
✓Dual Gigabit LAN: Features two Realtek Gigabit Ethernet controllers (single LAN option available).
✓Modern Expansion: Includes M.2 slots for Wi-Fi/Bluetooth, 4G/5G cellular, and NVMe/SATA storage.
✓Wide-Temperature Design: Reliable operation from -20°C to +60°C.
✓Power Mode Switching: Supports AT/ATX power mode selection for flexible system integration.
🔧 Core System Specifications
CPU
Integrated Intel® Celeron J6412 Quad-Core Processor @ 2.0 GHz
Compatible with Intel® Elkhart Lake Platform Series
Compatible with Intel® Elkhart Lake Platform Series
Memory (DDR4)
1 x SO-DIMM slot, supports single-channel DDR4 @ 3200 MHz, up to 32GB
Storage
1 x SATA 3.0 interface (for 2.5″ HDD/SSD)
1 x M.2 Key M 2280 slot (supports PCIe NVMe or SATA SSD)
1 x M.2 Key M 2280 slot (supports PCIe NVMe or SATA SSD)
Operating System
Windows 10, Windows 11, Linux
Graphics
Integrated Intel® UHD Graphics (Elkhart Lake)
🎥 Display & Audio Interfaces
Display Outputs
1 x VGA, 1 x HDMI, 1 x LVDS or eDP (Supports triple independent display)
Audio Codec
Realtek ALC262/662/897 HD Audio
Audio Ports
1 x Line Out (Green 3.5mm jack)
1 x Front Audio Header (2×5-pin, supports MIC/Line-out)
1 x Amplifier Interface (4-pin)
1 x Front Audio Header (2×5-pin, supports MIC/Line-out)
1 x Amplifier Interface (4-pin)
🔌 Connectivity & I/O Ports
USB Ports
4 x USB 2.0 ports
2 x USB 3.0 ports
(Total 8 USB ports)
2 x USB 3.0 ports
(Total 8 USB ports)
Network
2 x Realtek Gigabit Ethernet (RJ45, 10/100/1000 Mbps)
(Single LAN option available)
(Single LAN option available)
Serial Ports
6 x RS232 Serial Ports (Default supports 2 x RS485, configurable to support up to 4 x RS485)
Expansion Slots
1 x M.2 Key E slot (for Wi-Fi/Bluetooth modules)
1 x M.2 Key B slot (5G: 30x52mm, compatible with 4G: 30x42mm)
1 x M.2 Key B slot (5G: 30x52mm, compatible with 4G: 30x42mm)
Fan Interface
1 x 4-pin CPU fan header (Fanless operation supported)
GPIO
Supports 4-channel input & 4-channel output GPIO
Watchdog Timer
Hardware reset function (256 levels, 0~255 seconds)
⚡ Power & Physical Specifications
Input Voltage
DC 12V ±5%
Power Mode
Supports AT/ATX Mode Switching
Cooling
Designed for fanless, passive cooling. Includes a 4-pin header for active cooling if required.
Dimensions
146mm × 102mm (Ultra-compact form factor)
🌎 Environmental Specifications
Operating Temperature
-20°C to +60°C (Wide-temperature operation)
Storage Temperature
-20°C to +70°C
Operating Humidity
5% to 95% RH (non-condensing)
⚠️ Important Notes
CPU Configuration: This motherboard features a soldered Intel® Celeron J6412 processor. It is not upgradeable or replaceable in the field. Ensure this performance level meets your application requirements.
Memory Compatibility: Supports DDR4 SO-DIMM modules only. For optimal stability, use 3200MHz modules that are certified for industrial/embedded use.
Fanless Design Consideration: When implementing a fanless, enclosed design, ensure proper thermal calculations for your specific chassis and ambient conditions to prevent thermal throttling or damage. Adequate heatsinking is mandatory.
Serial Port Configuration: The six COM ports default to RS232. RS485 functionality (up to 4 ports) is a configurable option. Please specify your required serial configuration at the time of order.
M.2 Module Compatibility: The M.2 Key B slot is sized for 5G modules (30x52mm) but is physically and electrically compatible with standard 4G modules (30x42mm). Ensure proper driver support for your chosen cellular module.
Power Supply & Mode: Use a stable, high-quality DC 12V ±5% power adapter. Select the appropriate AT/ATX power mode jumper setting based on your system’s power management requirements.
📐 Mechanical Dimensions
Unit: mm
Dimensions diagram placeholder for EPIC60P-L26 VER1.1 (146mm x 102mm). Please insert your product dimension image here.

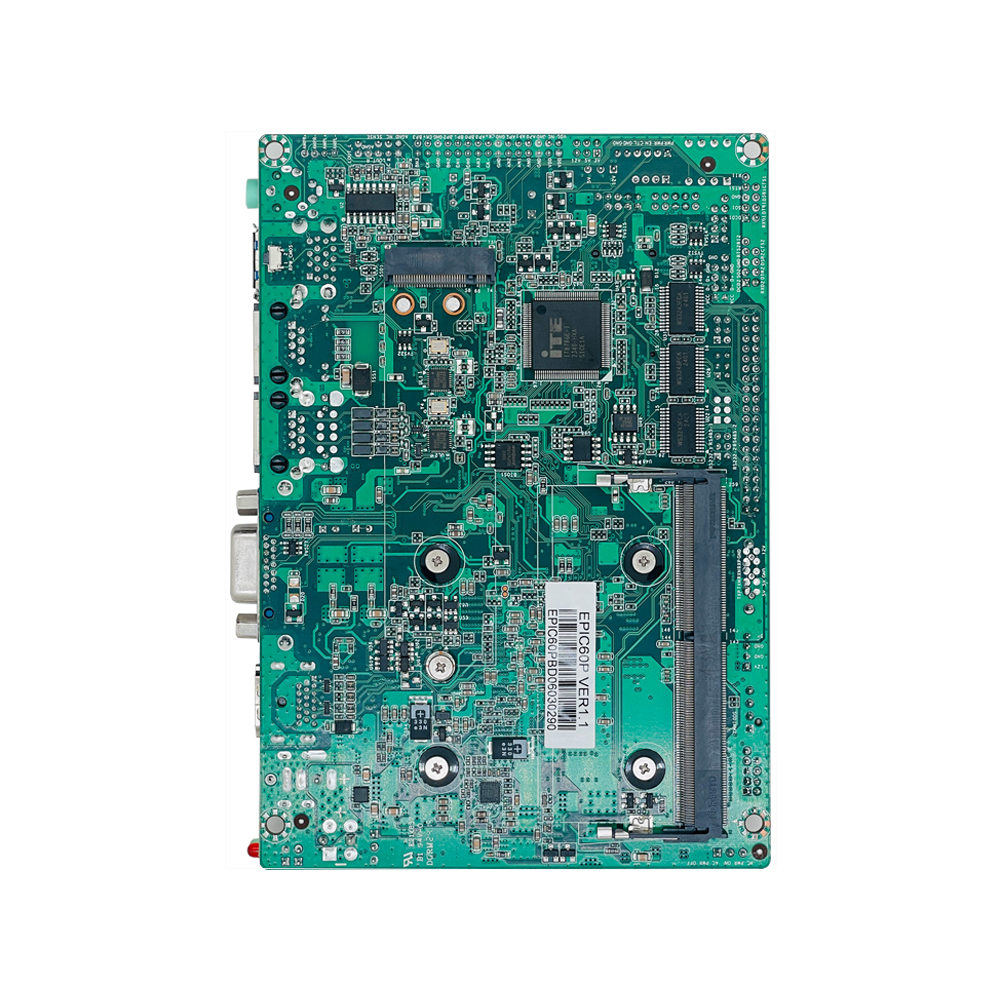

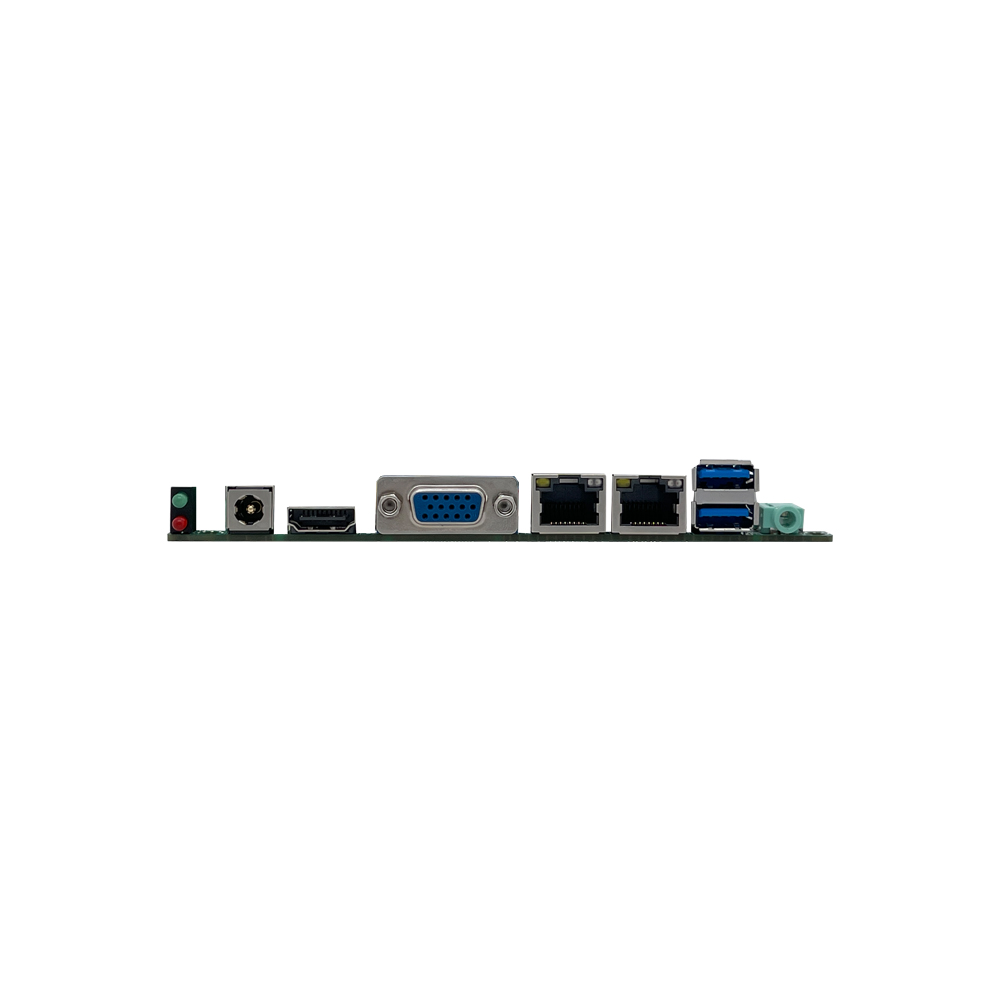

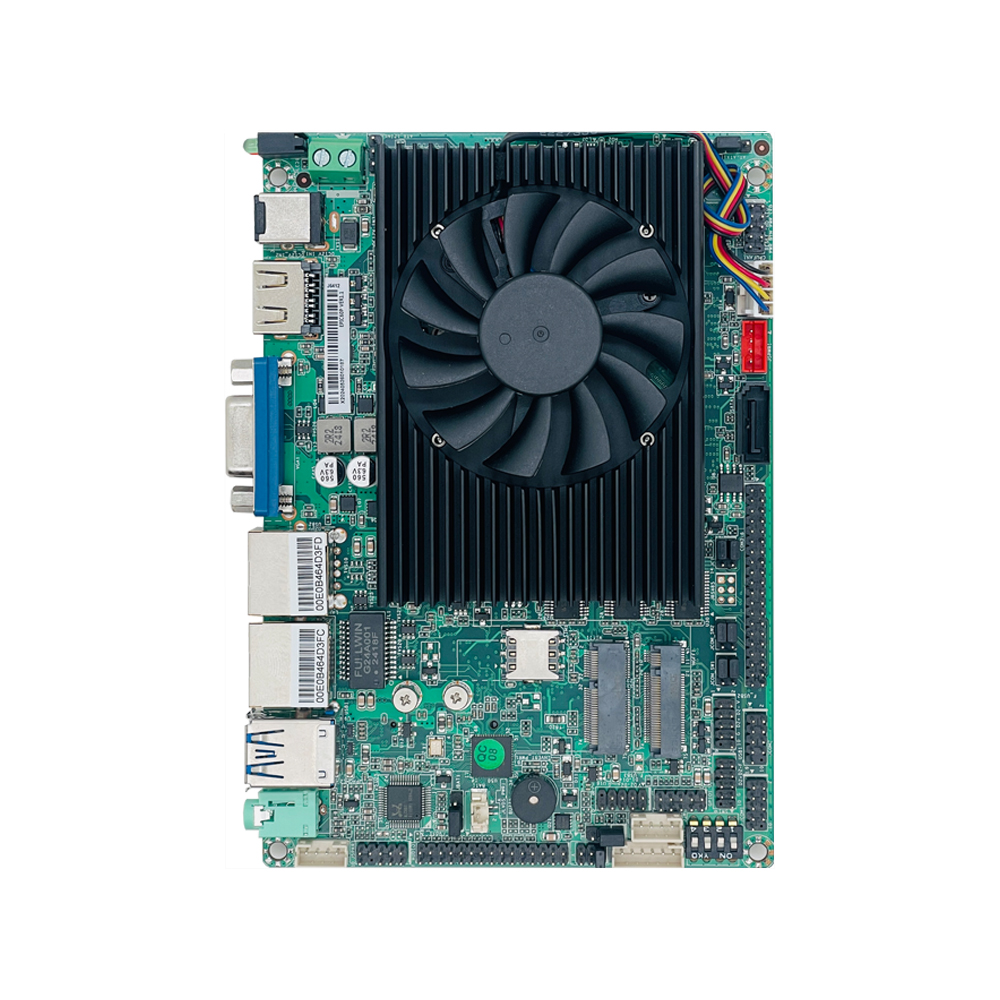

🖼 Product Images
