EPIC19P-R VER1.1 Ultra-Compact Fanless Motherboard
A cost-effective, fanless embedded motherboard powered by the Intel® J1900, offering rich I/O, industrial connectivity, and robust wide-temperature operation for space-constrained and harsh-environment applications.
📋 Product Overview
The EPIC19P-R VER1.1 is an ultra-compact, fanless embedded motherboard centered on the power-efficient Intel® Celeron J1900 quad-core processor. Designed for reliability and simplicity, it delivers essential computing performance with extensive legacy and industrial I/O, including multiple serial ports and dual LAN. Its completely passive thermal design enables silent, maintenance-free operation in sealed enclosures, making it an ideal solution for IoT gateways, basic HMI, and light-duty industrial control systems where dust, moisture, and space are primary concerns.
🛠️ Key Features
✓True Fanless Design: Integrated Intel® J1900 processor enables 100% passive cooling for silent, reliable, and maintenance-free operation.
✓Sealed System Ready: Ideal for creating fully enclosed systems that are protected against dust, moisture, and contaminants.
✓Rich Industrial Connectivity: Features 6 x COM ports (configurable to support up to 4 x RS485) for PLC and device communication.
✓Legacy & Modern I/O: Combines PS/2, multiple USB 2.0/3.0, VGA, HDMI, and LVDS/eDP display outputs for maximum compatibility.
✓Dual Gigabit LAN: Two Realtek Gigabit Ethernet ports provide network redundancy or segmentation (single LAN option available).
✓Compact Expansion: Includes Mini-PCIe (for Wi-Fi/4G) and mSATA slots for wireless connectivity and storage.
✓Wide-Temperature Operation: Reliably operates in environments from -10°C to +60°C.
✓Industrial Control Features: Equipped with GPIO and a 256-level watchdog timer for automated system recovery.
🔧 Core System Specifications
CPU
Integrated Intel® Celeron J1900 Quad-Core Processor @ 2.0 GHz
Compatible with Intel® Bay Trail-I/M/D Series
Compatible with Intel® Bay Trail-I/M/D Series
Chipset
Integrated into CPU (SoC – System on Chip)
Memory (DDR3L)
1 x SO-DIMM slot, supports single-channel DDR3L @ 1333/1600 MHz, 1.35V, up to 8GB
Storage
1 x SATA 2.0 interface (for 2.5″ HDD/SSD)
1 x mSATA 2.0 slot (for SSD storage)
1 x mSATA 2.0 slot (for SSD storage)
Operating System
Windows 7, Windows 10, Linux
Graphics
Integrated Intel® HD Graphics (Bay Trail)
🎥 Display & Audio Interfaces
Display Outputs
1 x VGA, 1 x HDMI, 1 x LVDS (optionally eDP)
Audio Codec
Realtek ALC262/662/897 HD Audio
Audio Ports
1 x Line Out (Green 3.5mm jack)
1 x Front Audio Header (2×5-pin, supports MIC/Line-out)
1 x Amplifier Interface (4-pin)
1 x Front Audio Header (2×5-pin, supports MIC/Line-out)
1 x Amplifier Interface (4-pin)
🔌 Connectivity & I/O Ports
USB Ports
5 x USB 2.0 ports
1 x USB 3.0 port
(Total 6 USB ports)
1 x USB 3.0 port
(Total 6 USB ports)
Network
2 x Realtek Gigabit Ethernet (RJ45, 10/100/1000 Mbps)
(Single LAN option available)
(Single LAN option available)
Serial Ports
6 x RS232 Serial Ports (Configurable to support up to 4 x RS485)
Expansion Slot
1 x Mini-PCIe slot (supports Wi-Fi and 4G LTE modules)
Legacy Interface
1 x PS/2 interface (6-pin header, for keyboard/mouse)
Fan Interface
1 x 4-pin CPU fan header (provided for optional active cooling if needed)
GPIO
Supports 4-channel input & 4-channel output GPIO
Watchdog Timer
Hardware reset function (256 levels, 0~255 seconds)
⚡ Power & Cooling Specifications
Input Voltage
DC 12V ±5%
Power Mode
Supports AT/ATX Mode Switching
Cooling System
Fanless Passive Cooling (Default). The Intel® J1900 processor is designed for fanless operation. A 4-pin fan header is available for optional active cooling in non-standard applications.
🌎 Environmental & Physical Specifications
Operating Temperature
-10°C to +60°C (Wide-temperature operation)
Storage Temperature
-20°C to +70°C
Operating Humidity
5% to 95% RH (non-condensing)
Dimensions
146mm × 102mm (Ultra-compact form factor)
⚠️ Important Notes
Processor & Platform: Features a soldered Intel® Celeron J1900 (Bay Trail). This is an economical, low-power SoC. It is not designed for CPU-intensive tasks. Evaluate your application’s performance requirements before selection.
Fanless Operation is Standard: This board is designed to operate without a fan. For optimal thermal performance in a sealed enclosure, ensure the chassis provides adequate passive heatsinking (e.g., metal case acting as a heatsink) and is sized appropriately for the ambient temperature range.
Memory Compatibility: Supports DDR3L (1.35V) SO-DIMM modules only. Standard 1.5V DDR3 modules are NOT compatible and may cause damage. Maximum supported capacity is 8GB.
Storage Interface Speed: Note that both the SATA and mSATA interfaces are SATA 2.0 (3 Gbps). This is sufficient for most embedded storage but is slower than modern SATA 3.0 standards.
Legacy I/O: The inclusion of a PS/2 port and multiple RS232 COM ports makes this board suitable for upgrading or integrating with legacy industrial equipment.
Power Supply: A stable, high-quality 12V DC power adapter is required. Ensure the power mode (AT/ATX) jumper is set correctly for your application’s power control needs.
📐 Mechanical Dimensions
Unit: mm
Dimensions diagram placeholder for EPIC19P-R VER1.1 (146mm x 102mm). Please insert your product dimension image here.

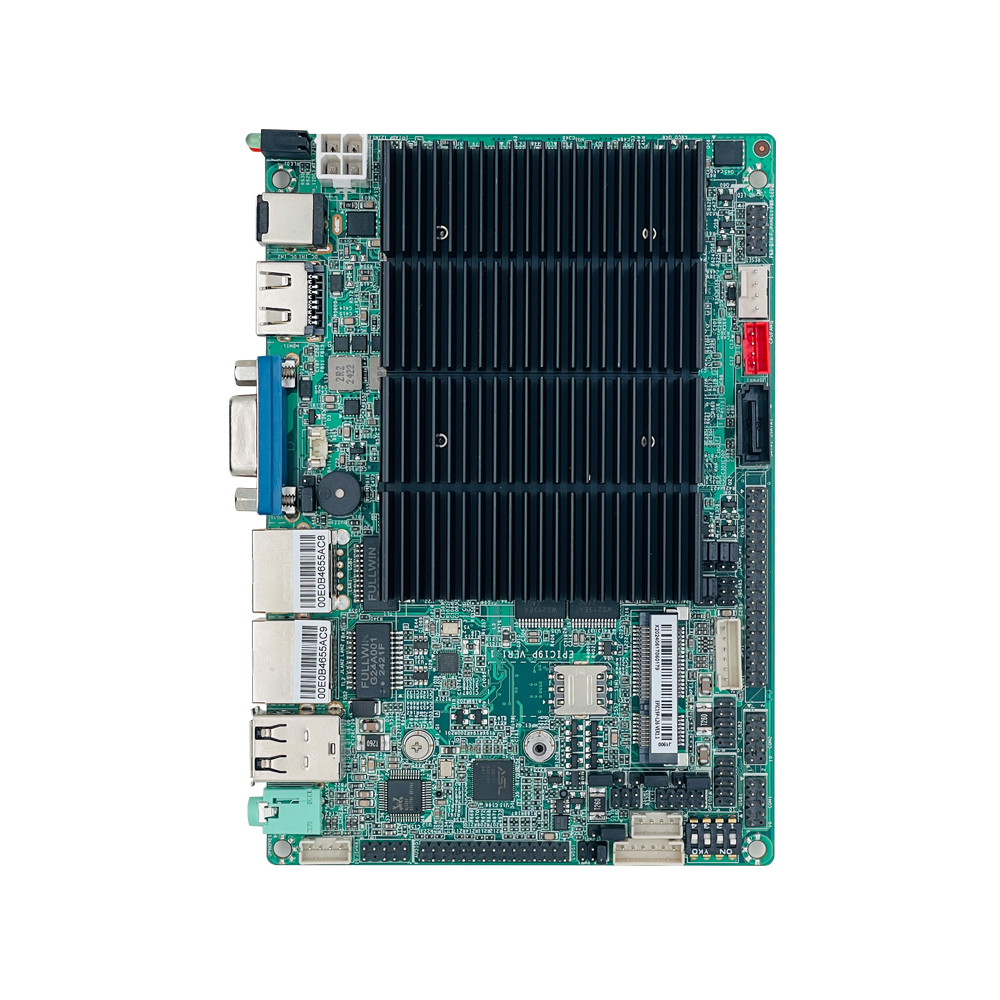

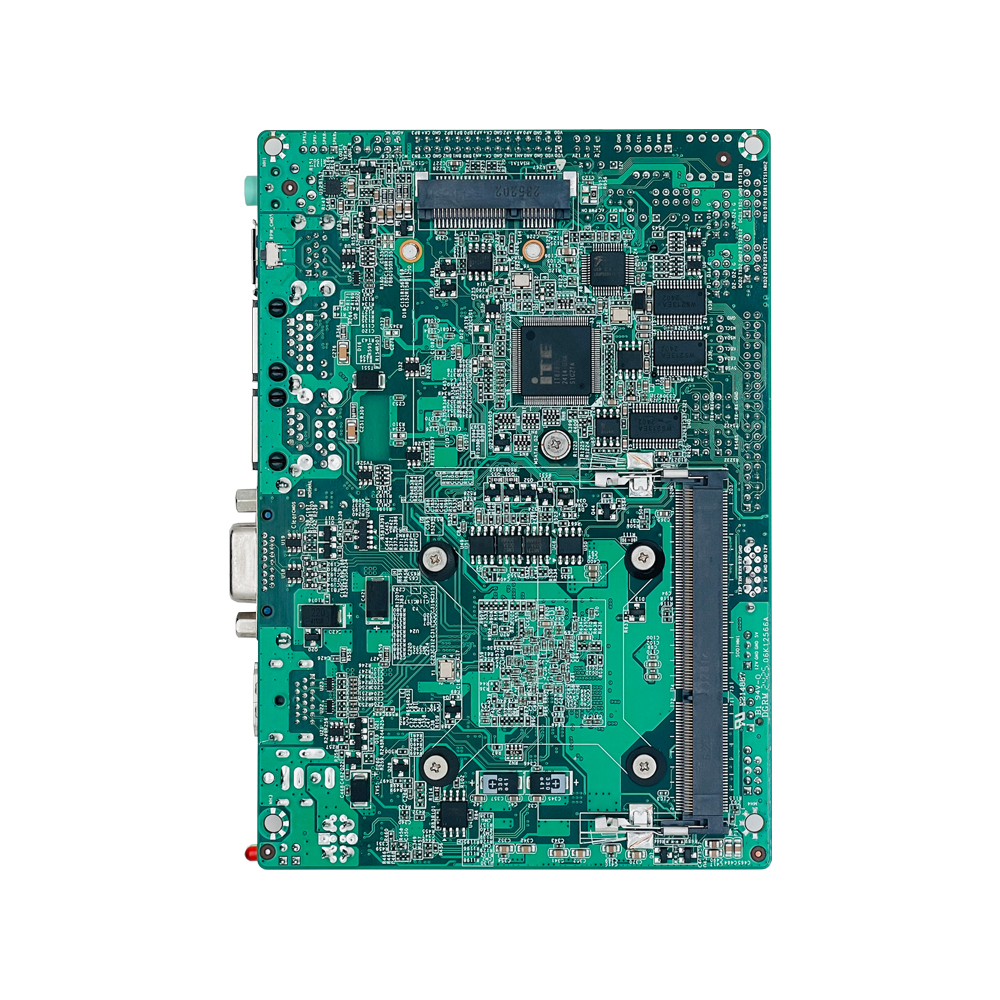

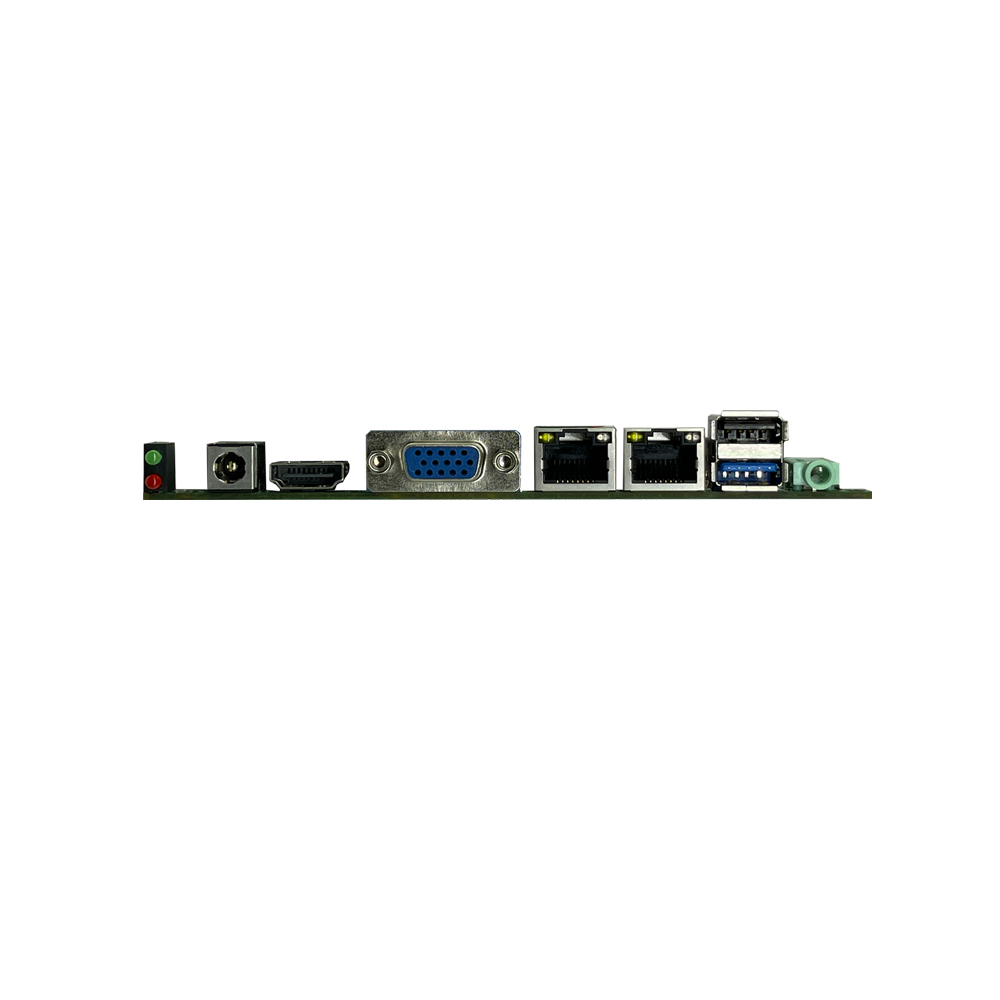

🖼 Product Images
