EPIC19P-I VER1.1 Fanless Embedded Motherboard (Bay Trail)
A compact, fanless, and cost-effective EPIC motherboard featuring an integrated Intel® Bay Trail processor, Intel® Gigabit LAN, six serial ports, and panel display support, perfect for entry-level industrial control, serial communication, and silent HMI applications.
📋 Product Overview
The EPIC19P-I VER1.1 is an ultra-compact and energy-efficient member of the EPIC family, designed around the integrated Intel® Bay Trail platform (Celeron J1900). It delivers a compelling blend of essential industrial features—including dual Intel® Gigabit Ethernet, six serial COM ports, and flexible display options—in a fanless, rugged package. With its smaller 146mm x 102mm footprint, lower power consumption, and support for legacy interfaces like PS/2, it is an ideal, reliable core for cost-sensitive automation projects, multi-port serial servers, basic HMIs, and silent embedded systems operating in wide-temperature environments.
🛠️ Key Features
✓Integrated & Efficient CPU: Features a soldered Intel® Celeron J1900 quad-core processor (Bay Trail), offering balanced performance with very low thermal design power (TDP) for fanless operation.
✓Compact EPIC Form Factor: Smaller 146mm x 102mm board size, ideal for space-constrained enclosures while maintaining rich I/O.
✓Reliable Intel® Networking: Dual Intel® I211/I210 Gigabit Ethernet ports provide stable, driver-friendly connectivity for industrial networks.
✓High-Density Serial Connectivity: Six RS232 COM ports (with optional RS485 support) for extensive serial device management.
✓Versatile Display & Legacy I/O: Supports VGA, HDMI, and configurable LVDS/eDP for displays. Includes legacy PS/2 port for keyboard/mouse.
✓Fanless & Rugged Design: Passive cooling ensures silent, maintenance-free, and dust-resistant operation in harsh environments (-10°C to +60°C).
✓Essential Industrial Features: Complete with GPIO, Watchdog timer, comprehensive audio, and flexible AT/ATX power mode.
🔧 Core System Specifications
CPU
Integrated Intel® Celeron J1900 Processor (4 cores, 2.0GHz, up to 2.42GHz burst). Based on the Intel® Bay Trail-I/M/D platform series (soldered, not upgradable).
Platform
Intel® Bay Trail SoC (System-on-Chip) Platform
Memory (DDR3L)
1 x SO-DIMM slot, Single Channel DDR3L 1333/1600 MHz (1.35V), supports up to 8GB
Note: Supports 1.35V DDR3L modules only. Standard 1.5V DDR3 is not compatible.
Storage
1 x SATA 2.0 interface (for 2.5″ HDD/SSD)
1 x mSATA 2.0 slot
Operating System
Windows 7, Windows 10, Linux (Note: Driver support for older OSes may vary)
Graphics
Integrated Intel® HD Graphics (Bay Trail)
🎥 Display & Audio Interfaces
Display Outputs
1 x VGA
1 x HDMI
1 x LVDS connector (for direct flat-panel connection)
Optional: LVDS interface can be configured as eDP (Embedded DisplayPort).
(Supports dual independent display output, e.g., HDMI + VGA or HDMI + LVDS)
Audio Codec
Realtek ALC262/662/897 HD Audio
Audio Ports / Features
1 x Front Panel Audio header (2×5 pin, supports Mic-in/Line-out)
1 x 3.5mm Line-out jack (Green)
1 x 4-pin header for external amplifier
🔌 Connectivity & I/O Ports
Network (LAN)
2 x Intel® I211/I210 Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports.
Reliable Intel controllers ensure stable network performance for industrial applications.
USB Ports
1 x USB 3.0 port
5 x USB 2.0 ports
(Total 6 USB ports)
Serial Ports (COM)
6 x RS232 ports.
Optional: 2 of these ports can be configured to support RS485 protocol.
Ideal for connecting multiple serial devices like PLCs, scanners, meters, or legacy equipment.
Legacy Interface
1 x PS/2 keyboard/mouse port (via 1×6 pin header). Provides compatibility with legacy peripherals.
Expansion Slots
1 x Mini-PCIe slot (supports Wi-Fi or 4G LTE modules)
1 x mSATA 2.0 slot (for storage)
Fan Interface
Board is designed for fanless operation. A 4-pin CPU fan header is provided for optional active cooling if required in specific high-ambient-temperature scenarios.
GPIO
Supports 4-channel input & 4-channel output GPIO
Watchdog Timer
Hardware reset function (256 levels, 0~255 seconds)
⚡ Power & Electrical Specifications
Power Mode
Supports AT and ATX mode switching for flexible power management.
Cooling System
Fanless passive heatsink design for silent, maintenance-free, and dust-resistant operation. A fan header is reserved for optional active cooling.
🌎 Environmental & Physical Specifications
Operating Temperature
-10°C to +60°C (Wide-temperature operation)
Storage Temperature
-20°C to +70°C
Operating Humidity
5% to 95% RH (non-condensing)
Dimensions (Board)
146mm × 102mm (Compact EPIC form factor)
⚠️ Important Notes
CPU Platform & Performance: This board uses the older, integrated Intel® Bay Trail (Celeron J1900) platform. It is designed for entry-level to moderate performance tasks, not for high-compute applications. It is not user-upgradable.
Memory & Storage Specifications:
- Memory: Supports only DDR3L (1.35V) SO-DIMMs. Do not use standard 1.5V DDR3.
- Storage: Note that the SATA and mSATA interfaces are SATA 2.0 (3Gbps), not the newer SATA 3.0 (6Gbps). This is sufficient for many industrial storage devices but may limit peak SSD performance.
Operating System & Driver Support: While Windows 7/10 and Linux are listed, the older Bay Trail platform may have limited or require specific driver versions, especially for graphics and chipset features on newer OS releases (e.g., Windows 10 20H2+ or recent Linux kernels). Verify driver availability for your target OS.
Display Interface Options: The LVDS connector is for direct flat-panel connection. It can optionally be configured as eDP. Specify your requirement (LVDS or eDP) when ordering if using this interface.
Serial Port Configuration: The six COM ports default to RS232. The optional RS485 functionality for two ports must be specified at the time of order.
Power & Thermal (Fanless): The low-power J1900 CPU enables reliable fanless operation. Ensure adequate passive cooling in the final enclosure, especially when operating near the maximum temperature rating. The 12V power supply requirement is modest (recommended ≥ 36W).
📐 Mechanical Dimensions
Unit: mm
Dimensions diagram placeholder. Please insert your product dimension image for EPIC19P-I VER1.1 here.

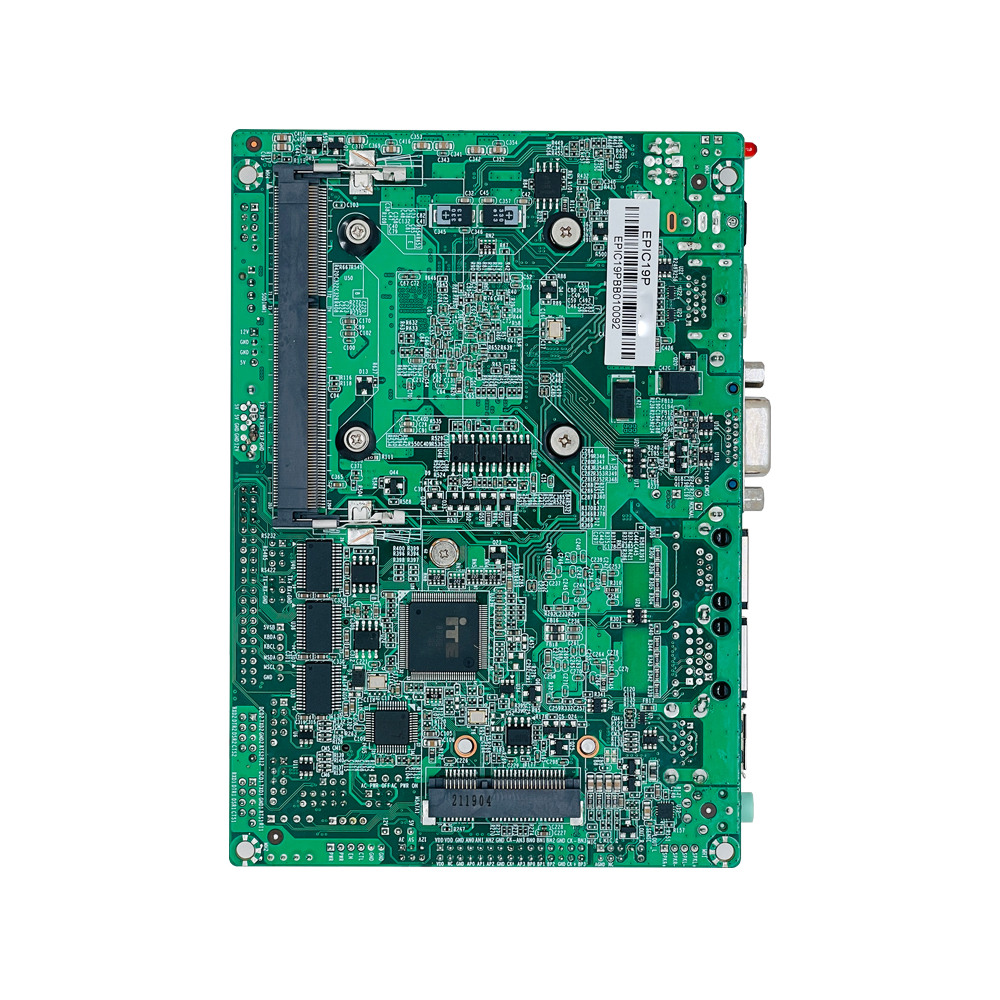

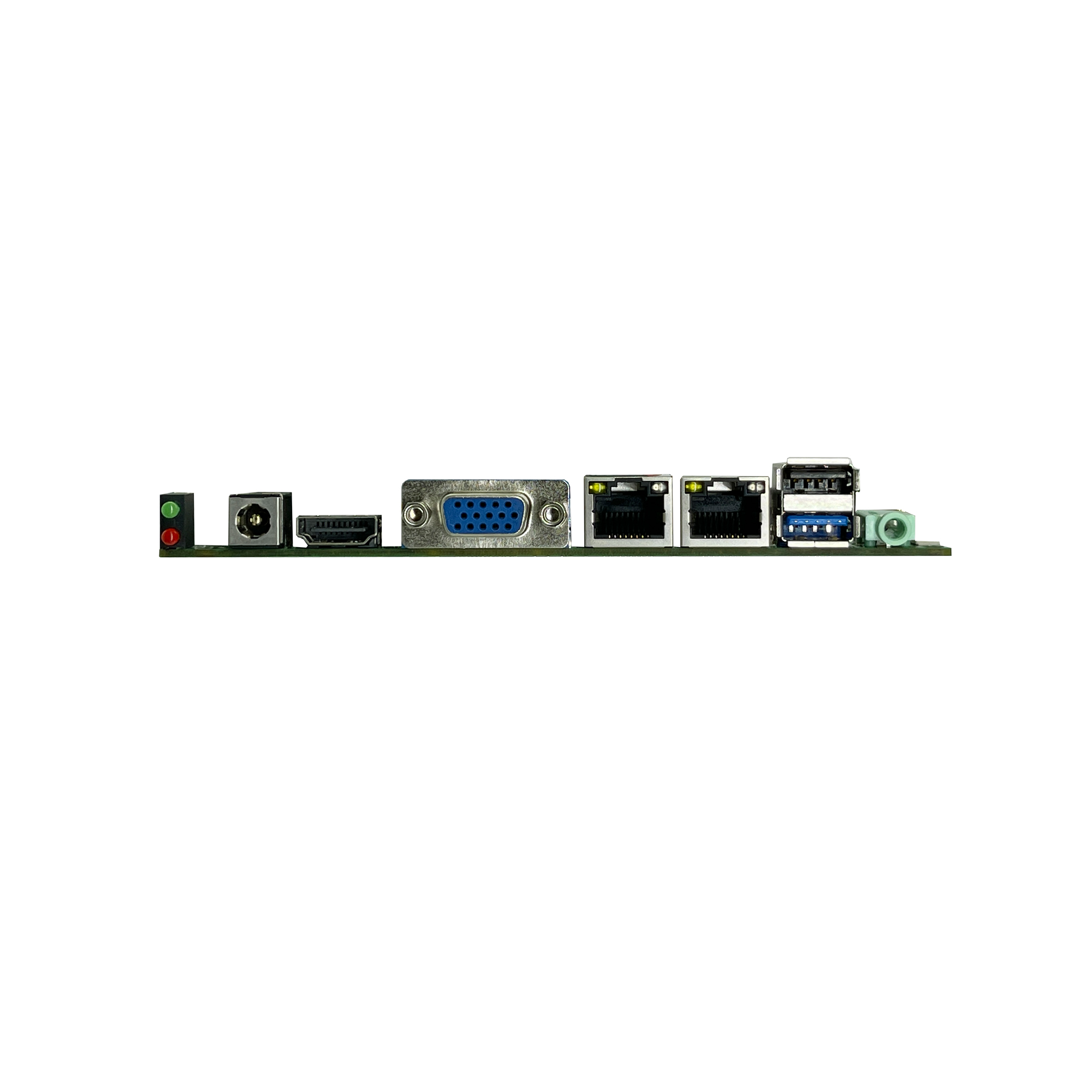

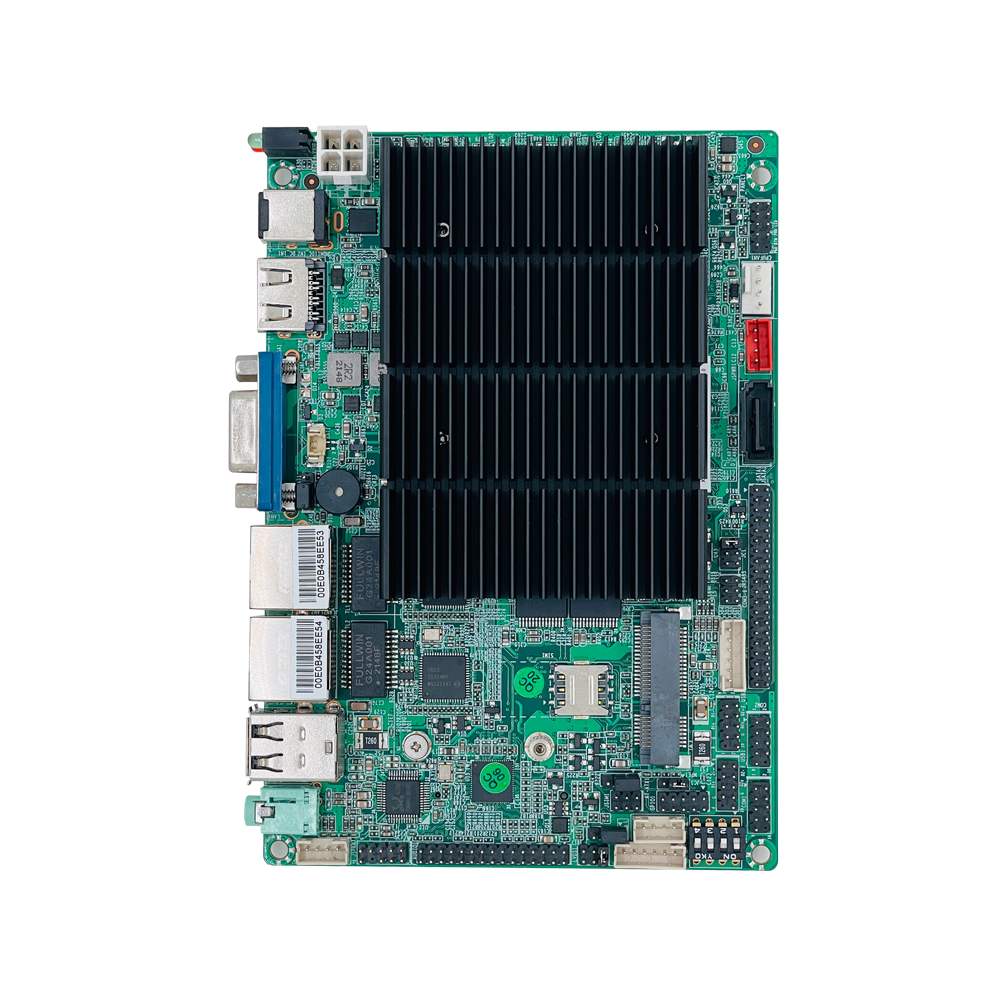

🖼 Product Images
