Description
4210E0-1L2C2E/1L2CLV Embedded Motherboard
A versatile Mini-ITX motherboard supporting Intel® Haswell-U/Broadwell-U processors, featuring flexible display options (LVDS/HDMI/VGA), 6 COM ports, and dual Mini-PCIe slots for digital signage, kiosk, and industrial control applications.
📋 Product Overview
The 4210E0-1L2C2E/1L2CLV is a compact Mini-ITX motherboard designed for embedded systems and industrial applications. Based on Intel® Haswell-U/Broadwell-U mobile platforms, it offers flexible display configurations including LVDS+HDMI, LVDS+VGA, or HDMI+VGA for dual independent displays, along with extensive I/O connectivity for demanding deployments in digital signage, interactive kiosks, and automation systems.
🛠️ Key Features
✓Flexible Display Support: Configurable dual displays: LVDS+HDMI, LVDS+VGA, or HDMI+VGA for various panel and monitor combinations.
✓Mobile CPU Platform: Intel® Haswell-U/Broadwell-U Celeron/Pentium/Core i3/i5/i7 processors for efficient performance.
✓Rich Industrial I/O: 6 COM ports (RS232/485 configurable), LPT, GPIO, multiple USB headers, and cash drawer interface.
✓Dual Networking Options: 1 or 2 Realtek Gigabit Ethernet ports for reliable network connectivity.
✓Wireless Expansion: Two Mini-PCIe slots for Wi-Fi and 4G/LTE module integration.
✓Compact Form Factor: Standard 170mm x 170mm Mini-ITX size for space-constrained installations.
✓Wide OS Compatibility: Supports Windows 7/8/10 and Linux for flexible software deployment.

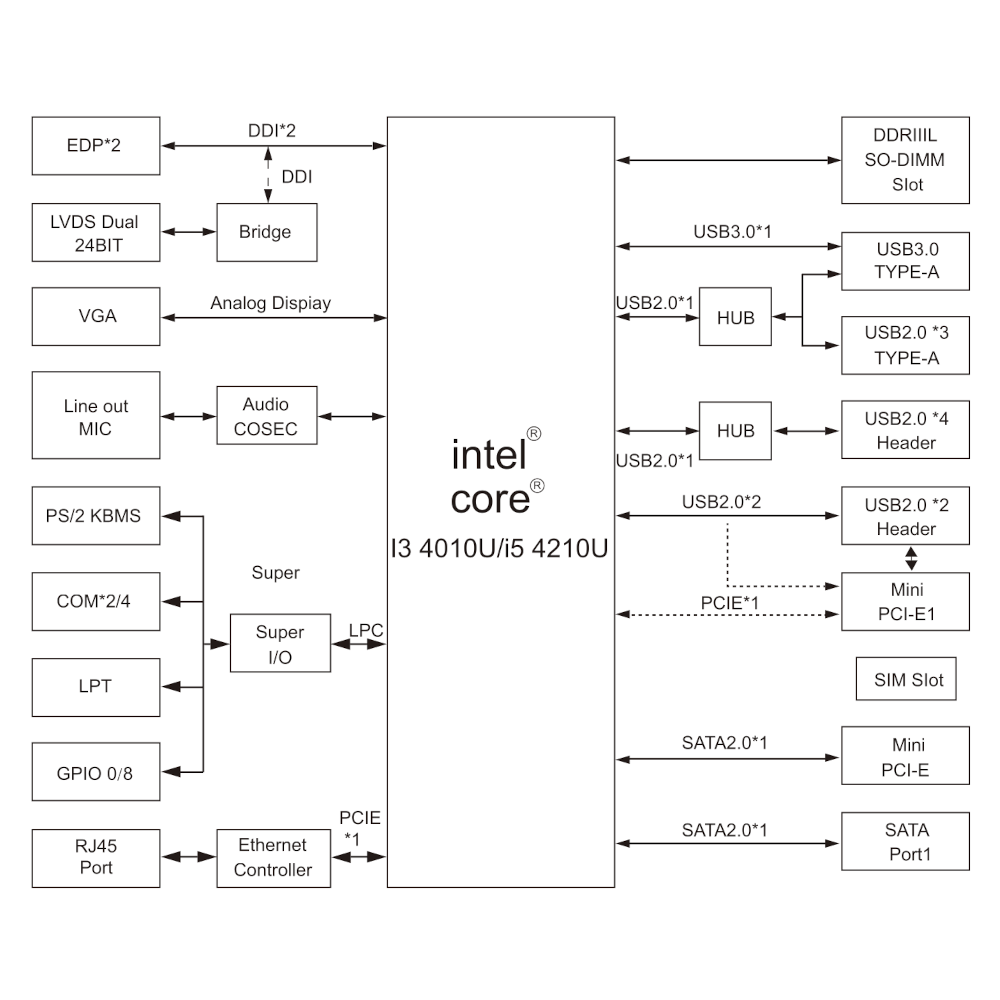

🔧 Core System Specifications
CPU
Intel® Haswell-U/Broadwell-U Celeron/Pentium/Core i3/i5/i7 mobile processors
Memory
1 x DDR3L SO-DIMM slot, supports 1333 MHz, up to 8GB maximum (1.35V)
Storage
2 x SATA interfaces (one SATA 6Gb/s, one mSATA via Mini-PCIe)
1 x mSATA slot
1 x mSATA slot
Audio
Realtek ALC897 7.1 channel HD Audio codec
Operating System
Windows 7/8/10, Linux
BIOS
AMI UEFI BIOS with intuitive setup utility
🎥 Display Interfaces
Display Configuration
LVDS + VGA, LVDS + HDMI, or VGA + HDMI (Dual independent display supported)
Display Interfaces
1 x LVDS header, 1 x HDMI port, 1 x VGA port
Panel Control
2 x INVERTER/Backlight control headers (IVCN1/IVCN2)
1 x LVDS backlight voltage selection jumper (JLV)
1 x LVDS backlight voltage selection jumper (JLV)
Audio Ports
1 x Line Out (3.5mm jack), 1 x Microphone In (3.5mm jack)
🔌 Connectivity & I/O Ports
USB Ports
2 x USB 3.0 Type-A (rear panel)
2 x USB 2.0 Type-A (rear panel)
4 x USB 2.0 via headers
1 x Touch USB header (for resistive/capacitive touch screens)
2 x USB 2.0 Type-A (rear panel)
4 x USB 2.0 via headers
1 x Touch USB header (for resistive/capacitive touch screens)
Network
1-2 x Realtek Gigabit Ethernet (RTL8106E/RTL8111H)
Serial Ports
6 x COM ports (COM1/2 configurable for RS232/485 via jumpers)
Parallel Port
1 x LPT header (2.0mm pitch)
Expansion Slots
2 x Mini-PCIe slots (one for Wi-Fi, one for 4G modules)
GPIO
8-channel GPIO header (configurable output)
Special Interfaces
1 x Cash drawer interface (JQX)
1 x SIM card slot for cellular modules
1 x Speaker amplifier header (supports 8Ω 2W speaker)
1 x SIM card slot for cellular modules
1 x Speaker amplifier header (supports 8Ω 2W speaker)
Front Panel Headers
Power switch, reset, power/HDD LEDs, front audio
⚡ Power & Electrical Specifications
Input Voltage
DC 12V input (external adapter or internal headers)
Power Headers
SATA power header, 12V output header, AT/ATX auto-power select
Fan Headers
2 x System fan headers (4-pin, PWM support)
Internal Power Options
Additional 4-pin ATX 12V header for internal power input/output
Auto-Power On
AT/ATX jumper for automatic power-on when AC is restored
🌎 Environmental & Physical Specifications
Operating Temperature
0°C to +55°C
Storage Temperature
-20°C to +75°C
Operating Humidity
0% to 95% RH (non-condensing)
Dimensions
170mm × 170mm (Standard Mini-ITX Form Factor)
⚠️ Important Notes
Jumper Configuration: Different motherboard functions can be selected using jumpers on the corresponding headers. Always refer to the manual for proper configuration.
Pin-1 Identification: The first pin of a header is typically marked by a thickened “L” shape in the silk screen or a square solder pad on the PCB underside.
Display Configuration: The motherboard supports dual display configurations: LVDS+VGA, LVDS+HDMI, or VGA+HDMI. Ensure proper configuration for your specific display setup.
Serial Port Configuration: COM1 and COM2 can be configured for RS232 or RS485 operation using JC13/JC14 (for COM1) and JC11/JC12 (for COM2) jumpers. COM voltage selection is via JP2 (COM2) and JP5 (COM1).
LVDS Backlight Voltage: The JLV jumper selects the LVDS panel backlight voltage (3.3V, 5V, or 12V). Match this setting to your specific panel requirements.
Power Requirements: Use a stable DC 12V power supply. The motherboard supports AT/ATX power modes selectable via the AT-ATX jumper.
Memory Compatibility: Supports DDR3L memory modules only (1.35V). Standard DDR3 (1.5V) modules are not compatible and may cause damage.
📐 Mechanical Dimensions
Unit: mm
Dimensions diagram placeholder. Please insert the motherboard dimension image here.

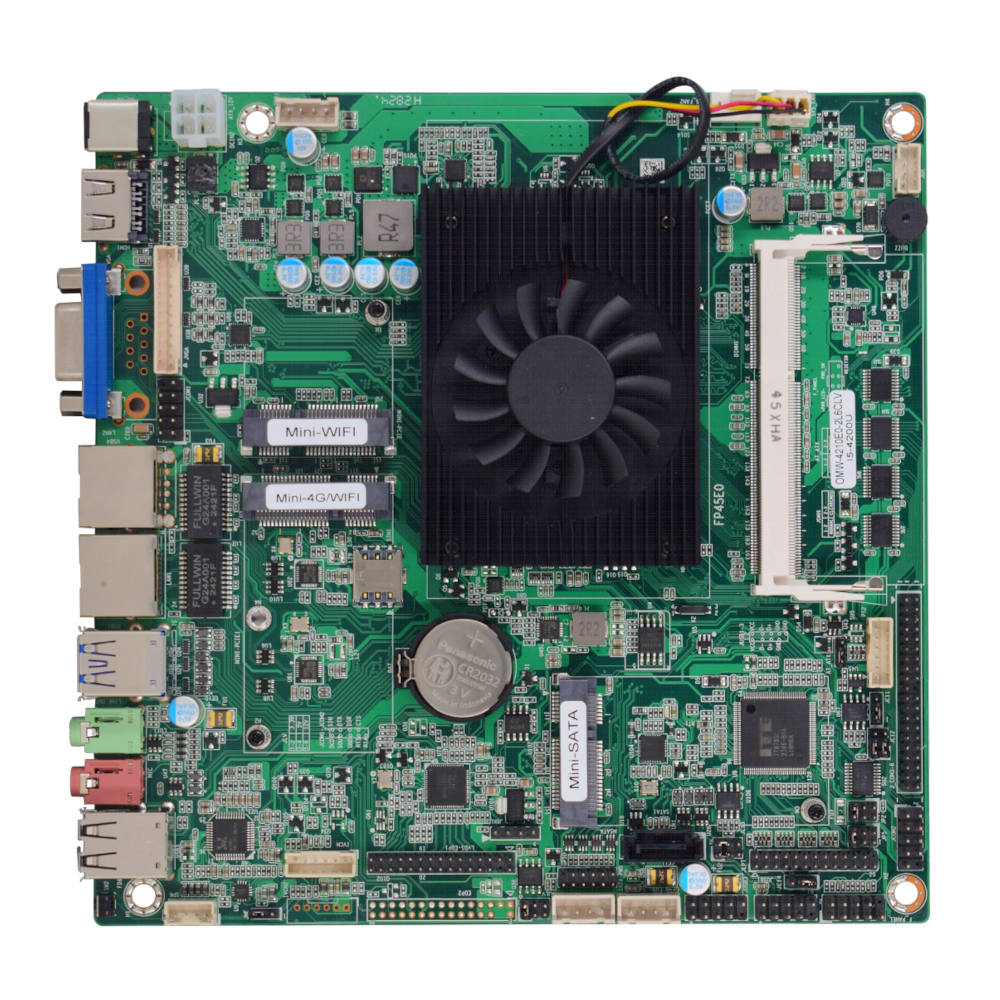

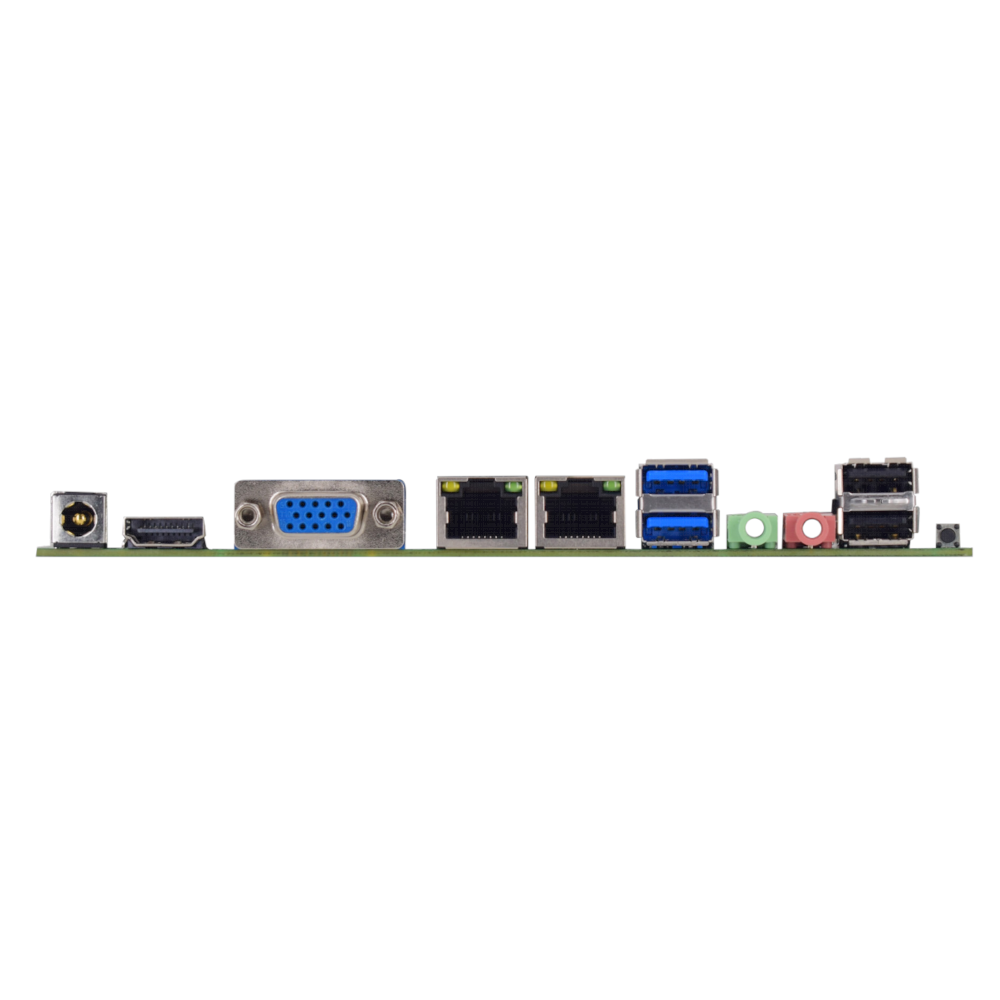

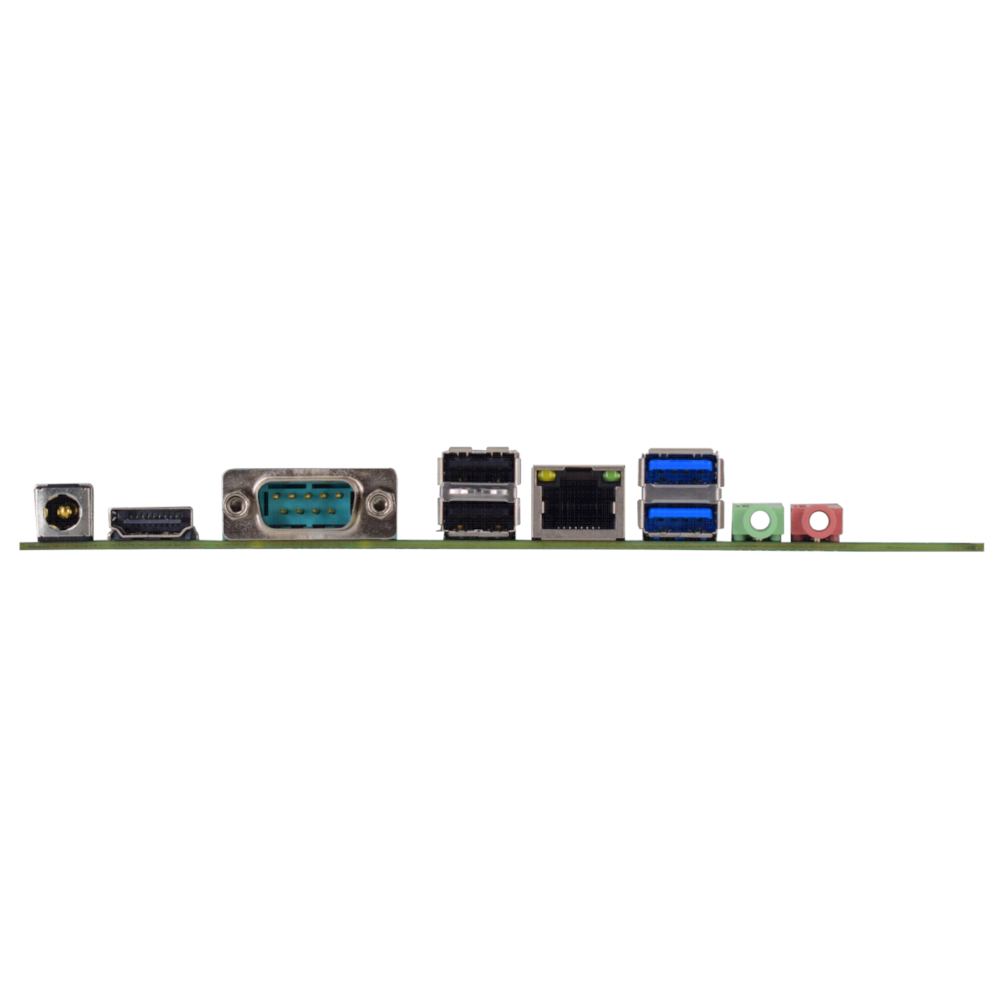

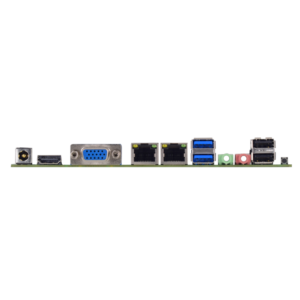

🖼 Product Images
🔧 BIOS Setup Guide
F2
Enter BIOS Setup during boot
Arrow Keys (→ ← ↑ ↓)
Navigate through menus and select items
Enter
Select item and enter submenu
+/-
Change selection or adjust values
F12
Boot Device Selection Menu
F8
Safe Mode (Windows)
F9
Load Optimized Defaults
F10
Save Changes and Exit
ESC
Exit current menu or BIOS
For further details regarding jumper settings, pin definitions, or other technical specifications not covered here, please consult the full user manual or contact our sales team.
