XM.R3568.A

The XM.R3568.A features a quad-core Rockchip RK3568 processor with an ARM Cortex-A55 CPU, Mali G52 GPU, and a 1 TOPS NPU. Running Android 11.0 with 2GB DDR RAM and 8GB eMMC storage (expandable), this board delivers high-performance, low-power operation for smooth and stable functionality.

Advanced Audio/Video Processing: Supports 1080P@60Hz via eDP, MIPI DSI, and LVDS interfaces, plus 4K@60Hz output via HDMI 2.0.

Commercial Digital Signage Features

Dual-screen display with independent content support
1080@60Hz output via eDP and MIPI display interfaces
4K@60Hz ultra HD output via HDMI 2.0
OTG debugging and peripheral connectivity
Infrared remote control compatibility
8-megapixel MIPI CSI camera with built-in 8M ISP
Android-based platform for human-machine and network device interaction
Ideal for intelligent terminal motherboard applications

High-Performance Commercial Board | Dual Display | 4K Output | Android 11 Platform

Categories: ARM Main Board, LANGO

Inquiry Form

Description
Reviews (0)

Description

XM.R3568.A Commercial Display Main Board

High-performance RK3568-based Android 11 mainboard for smart digital signage with camera support

📋 Product Overview

The XM.R3568.A is a versatile commercial display main board powered by the Rockchip RK3568 quad-core ARM Cortex-A55 processor, featuring Mali-G52 GPU and 1 TOPS NPU. It runs Android 11.0 with standard 2GB DDR4 RAM and 8GB eMMC storage (both expandable). Designed for low power consumption and high stability, it delivers excellent audio/video processing capabilities, supporting multiple display interfaces including eDP, MIPI DSI, LVDS (up to 1080p@60Hz), and HDMI 2.0 (up to 4K@60Hz). Ideal for interactive kiosks and smart digital signage with camera functionality.

🛠️ Key Features

✓Dual-screen independent display support.

✓Multi-interface Video Output: eDP/MIPI DSI/LVDS (1080p@60Hz) & HDMI 2.0 (4K@60Hz).

✓Quad-core ARM Cortex-A55 CPU & Mali-G52 GPU.

✓Integrated 1 TOPS NPU for AI applications.

✓Android 11.0 OS.

✓Camera Support: 8MP MIPI CSI with integrated 8MP ISP.

✓Memory: 2GB DDR4 RAM (expandable up to 8GB).

✓Storage: 8GB eMMC Flash (expandable up to 64GB).

✓Supports IR remote control.

✓OTG debugging support.

✓Cellular connectivity (4G/5G module support).

✓Low standby power consumption: ≤ 0.3W (board only).

🔧 System Configuration

CPU

Quad-core ARM Cortex-A55

GPU

ARM Mali-G52 2EE

NPU

1 TOPS

RAM

DDR4, default 2GB (expandable up to 8GB)

Flash Storage

eMMC, default 8GB (expandable up to 64GB)

Operating System

Android 11.0

Target Market

Domestic (China) & International

Note: Android and Kernel versions are subject to change with system firmware updates.

🎥 Performance & Video/Audio

Main Chipset

Rockchip RK3568

Panel Interface

eDP / MIPI DSI / LVDS

HDMI Output

Max 3840×2160 @ 60Hz (HDMI 2.0)

Camera Support

8MP MIPI CSI (with integrated 8MP ISP)

Audio Output Power

2 x 8W / 8Ω (Speaker)

Frequency Response

100Hz ~ 15KHz @ ±12dB

⚡️ Electrical Characteristics

Input Voltage

DC 12V ±5%

Panel Voltage (LVDS)

3.3V / 5V / 12V (Selectable)

Panel Voltage (eDP/MIPI)

3.3V / 5V (Selectable)

Standby Power

≤ 0.3W (Board only)

Key Functions

Keypad-based operation

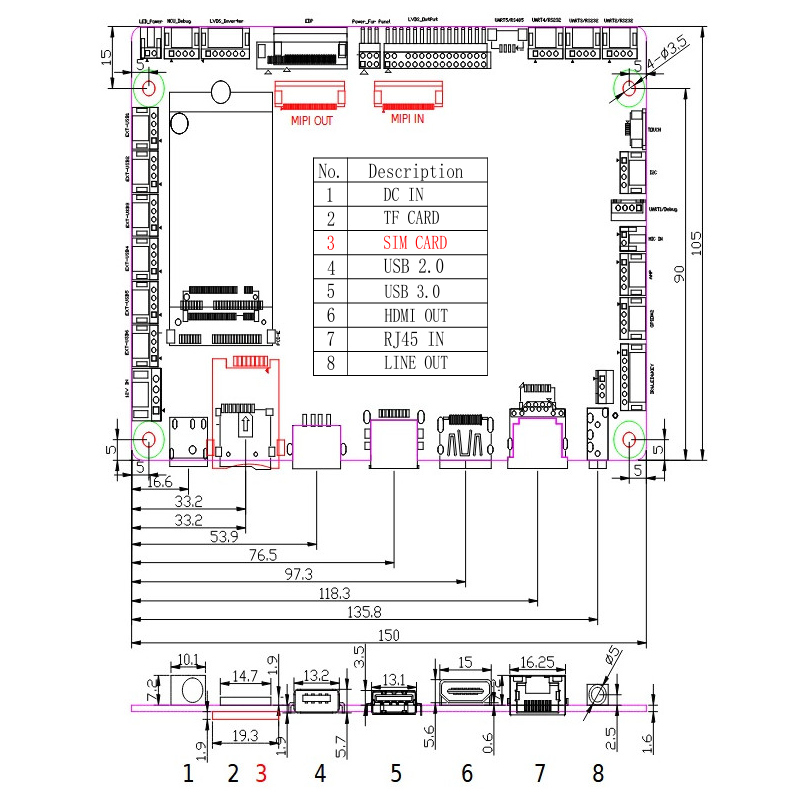

🔌 Interface & Connectivity

Power Input

12V DC (via power connector)

Video Output

eDP, MIPI DSI, LVDS (1080p@60Hz)

HDMI Output

Standard Type-A connector (HDMI 2.0, 4K@60Hz)

USB Ports

USB 2.0 × 1, USB 3.0/OTG × 1, Extended USB × 6

Network

RJ45 Ethernet port × 1

Audio Output

Speaker output (2×8W/8Ω), Line-Out

Serial Ports

RS232 × 1, RS485 × 1

Camera Interface

MIPI CSI (for 8MP camera)

Cellular Support

4G / 5G module connectivity

Wireless Options

Optional: 2.4GHz WiFi, 2.4GHz+BT, or 2.4GHz+5GHz+BT

Storage

TF Card slot (for expansion)

Control Interfaces

IR receiver for remote control

🌎 Environmental Requirements

Operating Temperature

0°C to 40°C

Storage Temperature

-20°C to 85°C

Operating Humidity

10% to 85% (non-condensing)

Storage Humidity

10% to 90% (non-condensing)

⚠️ Important Notes

Certification:This board version is not intended for final product certification. Whole-machine testing and certification are required for end products.

License Responsibility:The purchase price does not include licenses for specific media formats, codecs (e.g., Dolby, DTS, H.265), or interface technologies (e.g., HDCP, PlayReady). The buyer is solely responsible for obtaining necessary licenses and paying associated fees to the respective rights holders.

ESD & Handling:This board contains ESD-sensitive components. Proper anti-static handling procedures must be followed during installation and debugging.

Compatibility:Performance of high-speed signals (USB, LVDS, eDP, MIPI, etc.) can be affected by cable specifications and length. Test thoroughly when changing cables.

System Features:Supports watchdog reset, screen rotation (0°/90°/180°/270°), scheduled operation, multi-language OSD (Simplified Chinese/English), USB/local updates, and auto-navigation.

Support & Specifications:For custom configurations, technical support, or confirmations regarding external I2C/USB/Keypad connections, please contact our technical sales team. Product specifications are subject to change.
